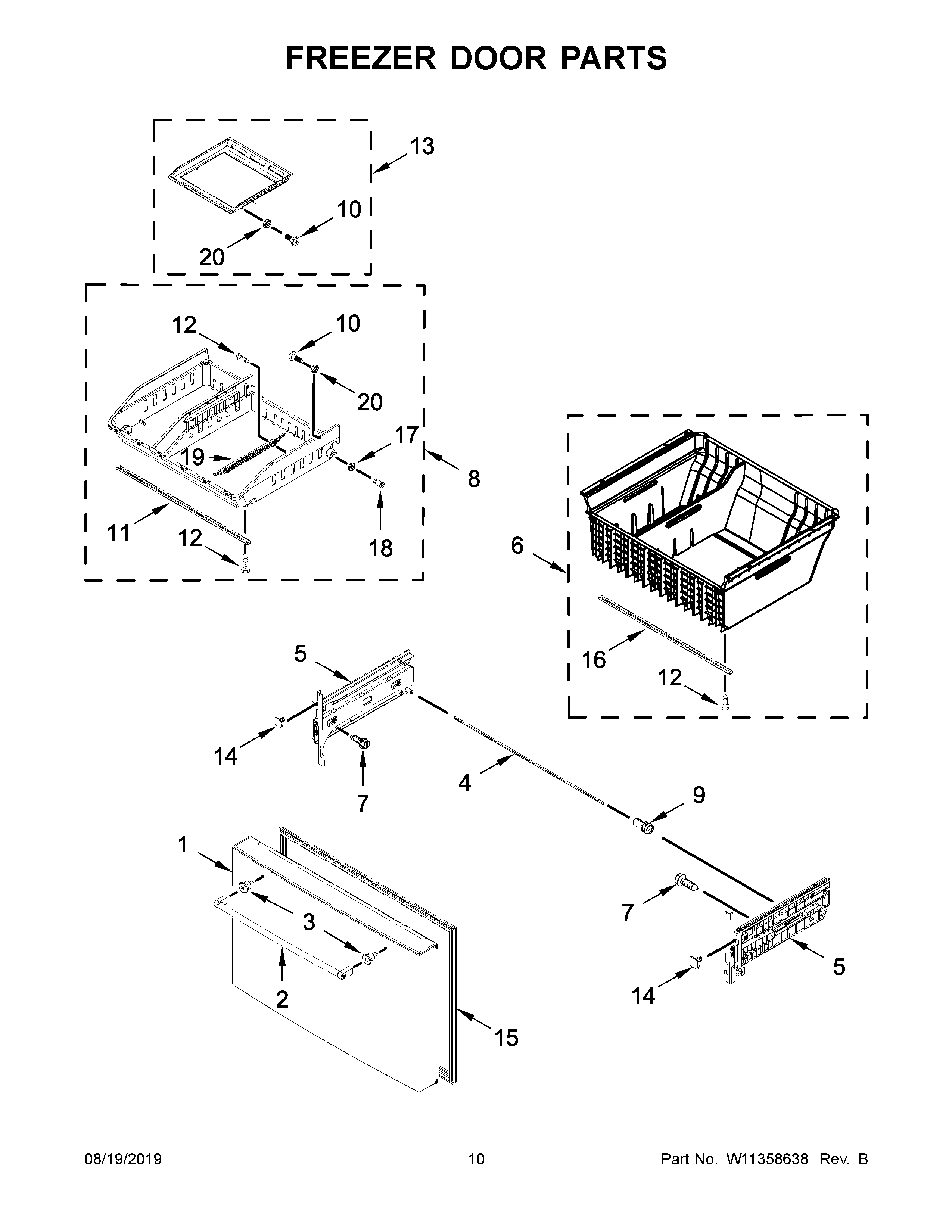

KRFC604FSS02 06 – FREEZER DOOR PARTS

KRFC604FSS02 06 – FREEZER DOOR PARTS

Written by

in

KRFC604FSS02 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W10849518 Whirlpool Refrigerator Door Assembly
2W11483535 Whirlpool Refrigerator Handle
3W11449276 Whirlpool Handle Support
4W11173556 Whirlpool Refrigerator Shaft
5W10795842 Whirlpool Refrigerator Bracket
5AW10795846 Whirlpool Refrigerator Bracket
6W10795850 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8W11102086 Whirlpool Refrigerator Pan
9WPW10277361 Whirlpool Refrigerator Collar
1067006692 Whirlpool Refrigerator Screw
11W11677723 Whirlpool Support
12WP489443 Whirlpool Refrigerator Screw
13W10889462 Whirlpool Freezer Bin
14WPW10485096 Whirlpool Refrigerator Pan Stop
14AWPW10485089 Whirlpool Refrigerator Pan Stop
15W11585972 Whirlpool Refrigerator Door Gasket
16BAR, SUPPORT
17ROLLER, PAN
18W11573594 Whirlpool Refrigerator Axle
19W10830658 Whirlpool Rail
20W10742424 Whirlpool Refrigerator Roller
