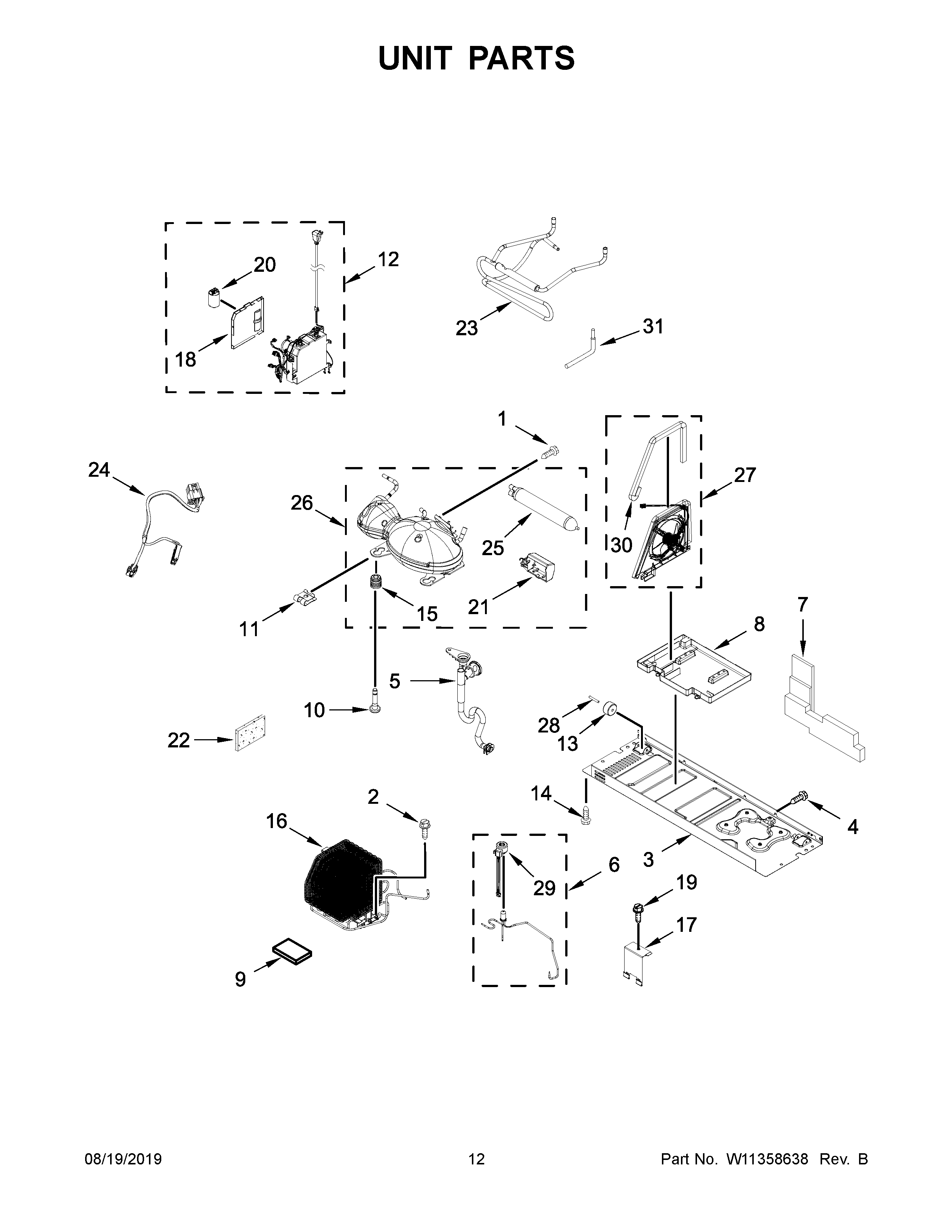

KRFC604FSS02 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10141625 Whirlpool Refrigerator Screw Assembly
2	W10820084 Whirlpool Screw
3	W10658357 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	ASSEMBLY, DRAIN EXTENSION
6	W11575001 Whirlpool Refrigerator Valve
7	W11688785 Whirlpool Insulation
8	W10877573 Whirlpool Refrigerator Evaporator Tray
9	W10884826 Whirlpool Grommet
10	BOLT
11	W10697017 Whirlpool Clip
12	W11336586-includeCORE Whirlpool W11336586 Refrigerator Electronic Control Board + Core
13	W10774846 Whirlpool Refrigerator Cabinet Roller
14	Screw
15	W10836504 Whirlpool Refrigerator Grommet
16	W11548259 Whirlpool Refrigerator Condenser
17	W10391376 Whirlpool Bracket Assembly
18	COVER, HOUSING
19	SCREW
20	W10792503 Whirlpool Refrigerator EMI Filter
21	W11592194 Whirlpool Refrigerator Terminal Cover
22	W11553819 Whirlpool Refrigerator Insulation
23	W11443923 Whirlpool Refrigerator Tube
24	W10858511 Whirlpool Refrigerator Wire Harness
25	W11109499 Whirlpool Refrigerator Tube
26	W11592010 Whirlpool Refrigerator Compressor
27	W11024494 Whirlpool Refrigerator Fan
28	67006434 Whirlpool Axle Pin
29	W11429989 Whirlpool Refrigerator Solenoid
30	W10683708 Whirlpool Gasket
31	W11323726 Whirlpool Tube
