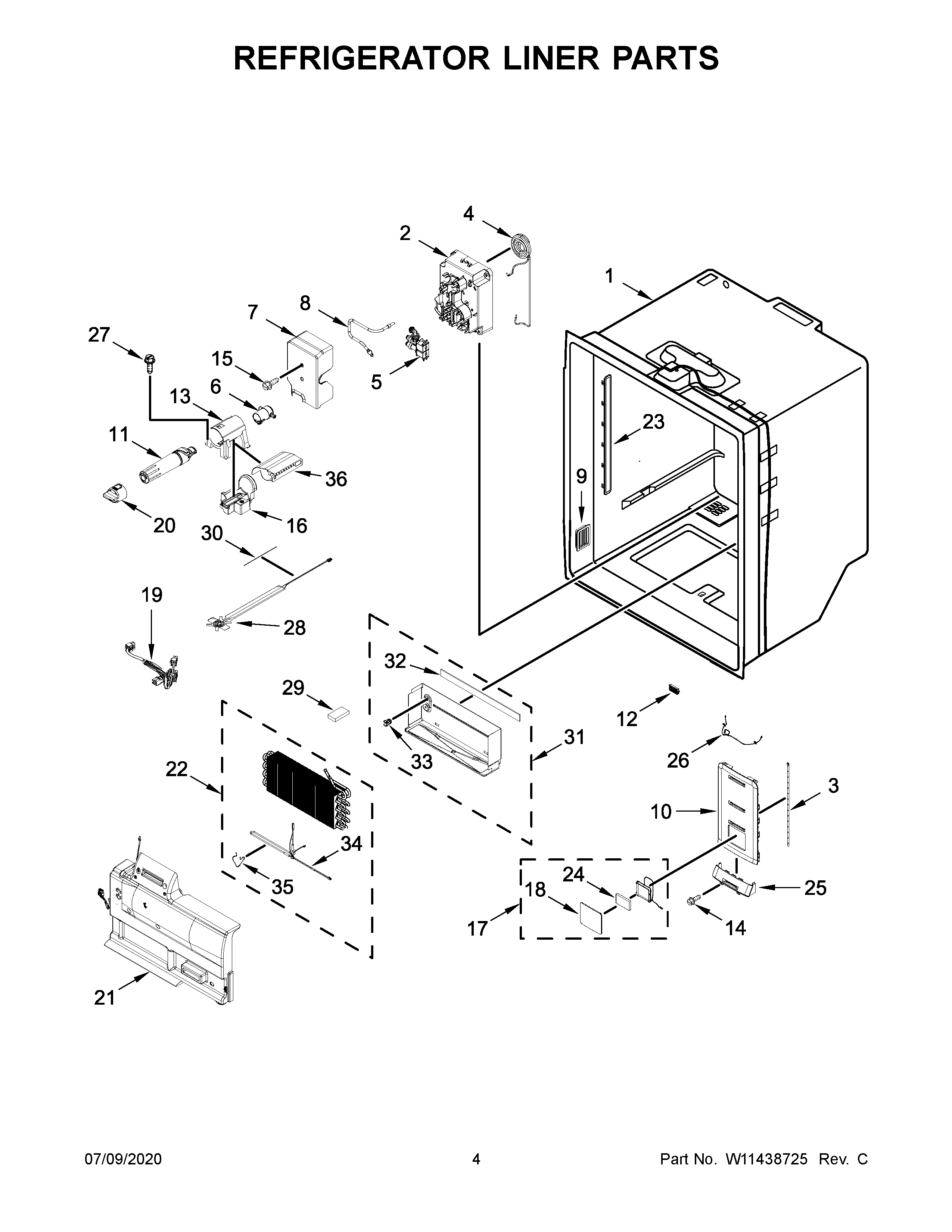

KRFC604FSS03 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W10871610 Whirlpool Refrigerator Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
2	W10708473 Whirlpool Refrigerator Housing
3	W10887788 Whirlpool Refrigerator Module
4	W11451365 Whirlpool Refrigerator Reservoir
5	W11535162 Whirlpool Refrigerator Valve
6	W11451366 Whirlpool Refrigerator Housing
7	W10900010 Whirlpool Refrigerator Cover
8	W11727946 Whirlpool Water Tube
9	W10718061 Whirlpool Refrigerator Cover
10	W11259417 Whirlpool Refrigerator Air Tower
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11189600 Whirlpool Refrigerator Bracket
14	W10119266 Whirlpool Screw
15	WP67006908 Whirlpool Refrigerator Screw
16	W11348541 Whirlpool Insulation
17	W10889354 Whirlpool Refrigerator Electronic Control Board + Core
18	W11252060 Whirlpool Refrigerator Cover
19	W11396537 Whirlpool Refrigerator Wire Harness
20	W11189114 Whirlpool Refrigerator Cap Filter
21	W11395635 Whirlpool Refrigerator Evaporator Cover
22	W11291123 Whirlpool Refrigerator Evaporator
23	W11442049 Whirlpool Module
24	W10673897 Whirlpool Refrigerator Insulation
25	W10716179 Whirlpool Air Tower
26	W10848895 Whirlpool Refrigerator Wire Harness
27	WP489474 Whirlpool Refrigerator Screw
28	W11024084 Whirlpool Refrigerator Heater
29	W10818463 Whirlpool Refrigerator Gasket
30	W10910632 Whirlpool Refrigerator Sleeve
31	W11090564 Whirlpool Refrigerator Shield
32	W11159756 Whirlpool Refrigerator Gasket
33	CLIP, EVAP (2)
34	W11291124 Whirlpool Refrigerator Heater
35	W10909562 Whirlpool Refrigerator Clip
36	W11307147 Whirlpool Refrigerator Filter Cover
