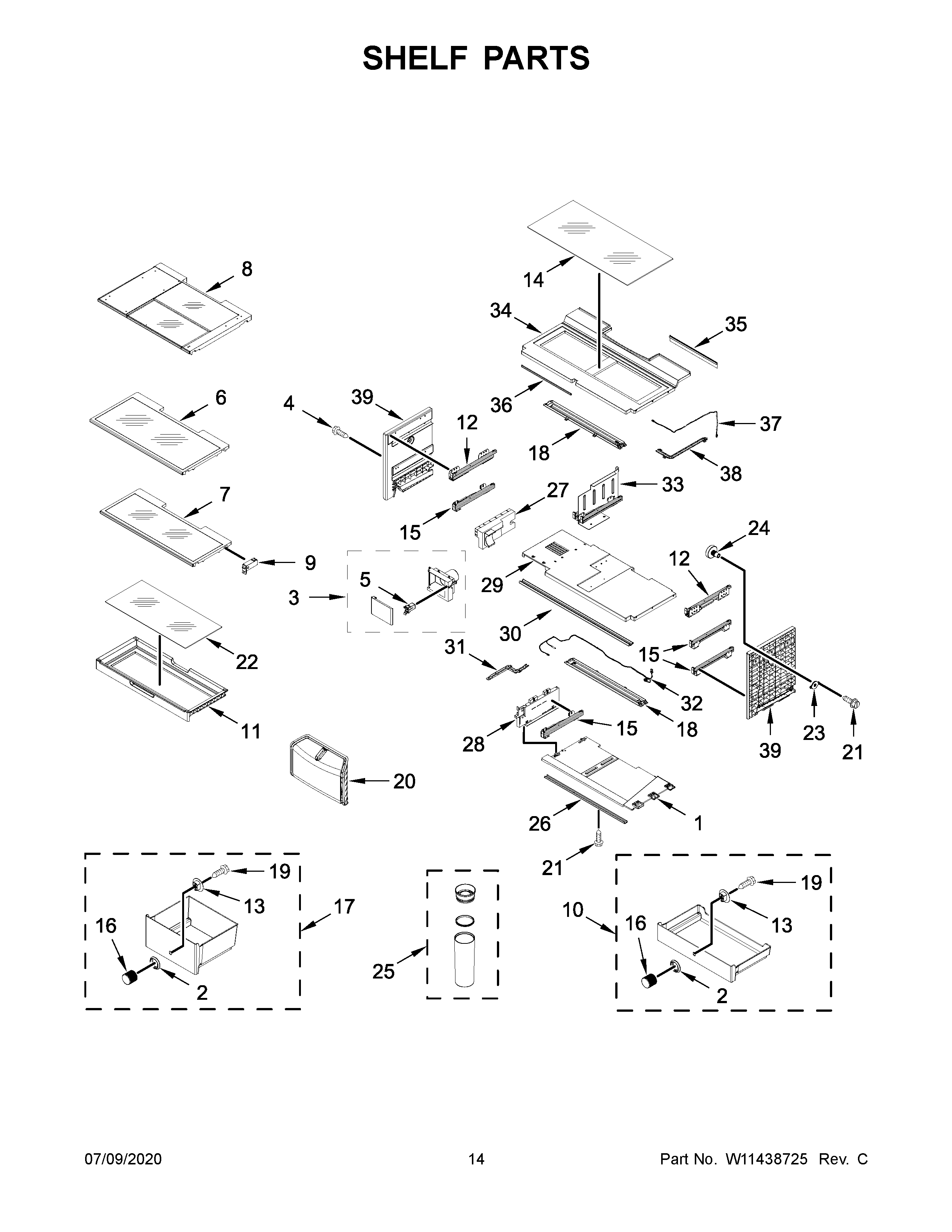

KRFC604FSS03 08 – SHELF PARTS

Products

Position	Product
1	BASE, PANTRY
2	W10696184 Whirlpool Refrigerator Ring
3	W11347067 Whirlpool Housing
5	WP2223877 Whirlpool Door Hook
6	W10889474 Whirlpool Glass Shelf
7	W11284509 Whirlpool Refrigerator Glass Shelf
8	W10889546 Whirlpool Refrigerator Glass Shelf
9A	W10753431 Whirlpool Refrigerator Shelf Stud
9	W10753430 Whirlpool Refrigerator Shelf Stud
10	W11115323 Whirlpool Refrigerator Utility Pan
11	W11387033 Whirlpool Refrigerator Frame Assembly
12	W10843718 Whirlpool Refrigerator Glide
12A	W10843719 Whirlpool Refrigerator Glide
13	W10663641 Whirlpool Refrigerator Spacer
14	W10887837 Whirlpool Refrigerator Glass Shelf
15A	W10866168 Whirlpool Refrigerator Glide
15	W10866165 Whirlpool Refrigerator Glide Assembly
16	HANDLE
17	W11115324 Whirlpool Refrigerator Crisper Pan
18	W11401419 Whirlpool Refrigerator Module
19	SCREW
20	W10826105 Whirlpool Refrigerator Pro Service
21	W10847999 Whirlpool Refrigerator Screw
22	W10906480 Whirlpool Refrigerator Glass Shelf
23	FLANGE, SIDE SUPPORT
24	W10840922 Whirlpool Refrigerator Knob
25	W10882409 Whirlpool Refrigerator Herb Tender
26	BAR, PANTRY SUPPORT
27	W11084829 Whirlpool Refrigerator Insulation
28	W10794289 Whirlpool Refrigerator Support
29	COVER, PANTRY
30	BAR, SUPPORT
31	COVER, WIRING HARNESS
32	W11744510 Whirlpool Wire Harness
33	W10794248 Whirlpool Refrigerator Support
34	W11084909 Whirlpool Refrigerator Frame
35	W10794336 Whirlpool Refrigerator Gasket
36	W10794242 Whirlpool Gasket Assembly
37	W10835866 Whirlpool Wire Harness
38	W10854845 Whirlpool Appliance Cover
39	SUPPORT, SIDE (LEFT HAND)
39A	SUPPORT, SIDE (RIGHT HAND)
