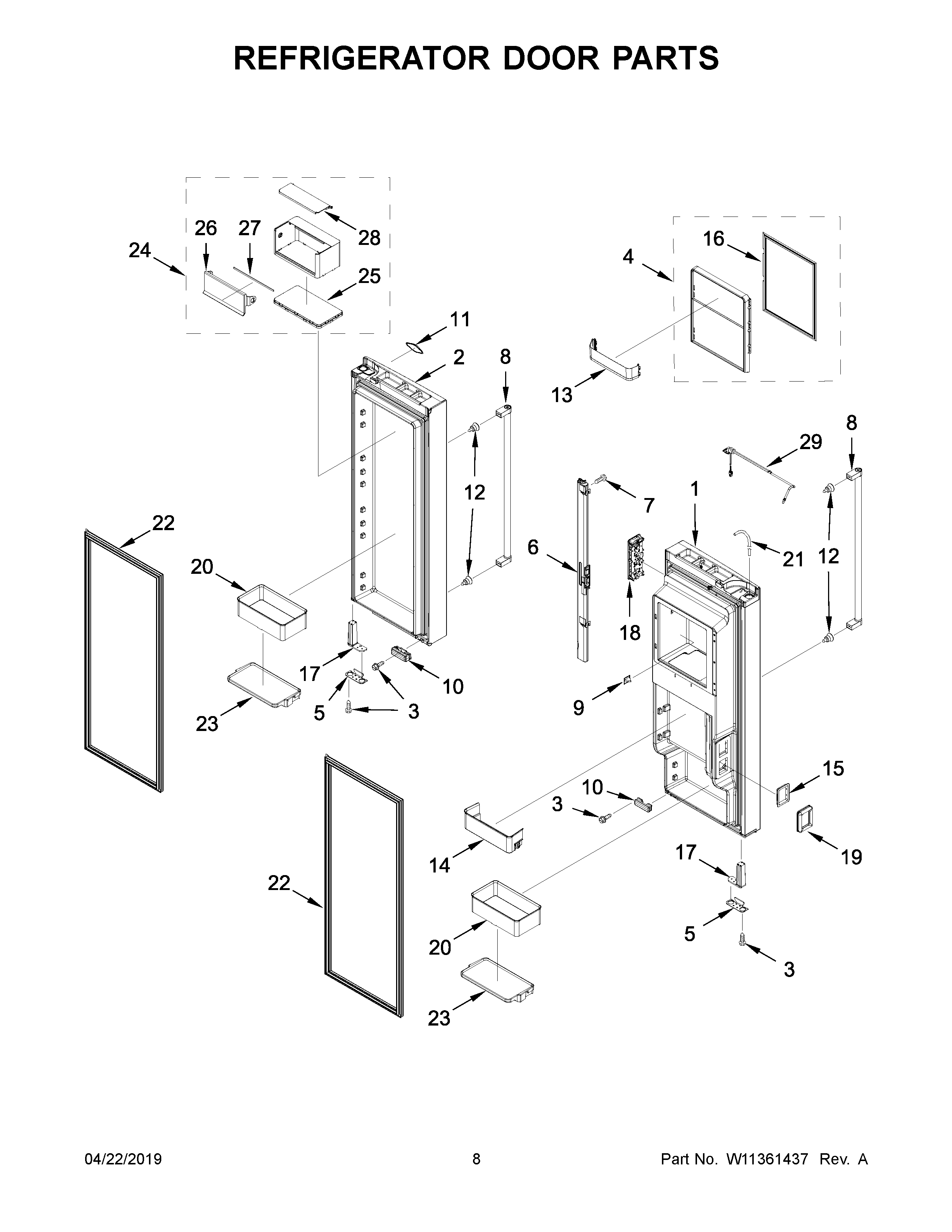

KRFC704FBS02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	W11254954 Whirlpool Refrigerator Door Assembly
1	W11254958 Whirlpool Refrigerator Door Assembly
2A	W10849512 Whirlpool Refrigerator Door Assembly
2	W10849510 Whirlpool Refrigerator Door Assembly
4	W11594927 Whirlpool Refrigerator Ice Door
5	W11243377 Whirlpool Refrigerator Door Stop
6A	W11649966 Whirlpool Mullion Rail
6	W11084811 Whirlpool Refrigerator Mullen Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11483532 Whirlpool Refrigerator Handle
9	W11291144 Whirlpool Refrigerator Switch
10A	W10798308 Whirlpool Refrigerator Door Bumper
10	W10407187 Whirlpool Refrigerator Door Bumper
11	W10839793 Whirlpool Refrigerator Nameplate
12	W11449276 Whirlpool Handle Support
13	W10887799 Whirlpool Trivet
14	W10887800 Whirlpool Cantilever Bin
15	W10834282 Whirlpool Refrigerator Retainer
16	W11625086 Whirlpool Refrigerator Gasket
17	W11163783 Whirlpool Refrigerator Closer
17A	W11188796 Whirlpool Refrigerator Closer
18	W11330486 Whirlpool Refrigerator UI Panel
19	W11227369 Whirlpool Refrigerator Gasket
20	W10887801 Whirlpool Refrigerator Cantilever Bin
21	W10883965 Whirlpool Refrigerator Water Tube
22A	W10917313 Whirlpool Refrigerator Door Gasket
22	W10917312 Whirlpool Refrigerator Door Gasket
23	TRIM
24	W10887802 Whirlpool Refrigerator Cantilever Bin
25	W10795523 Whirlpool Refrigerator Base
26	W10803630 Whirlpool Refrigerator Compressor Door
27	W10795525 Whirlpool Gasket Assembly
28	W10795524 Whirlpool Refrigerator Cover
29	W11366500 Whirlpool Refrigerator Water Tube
