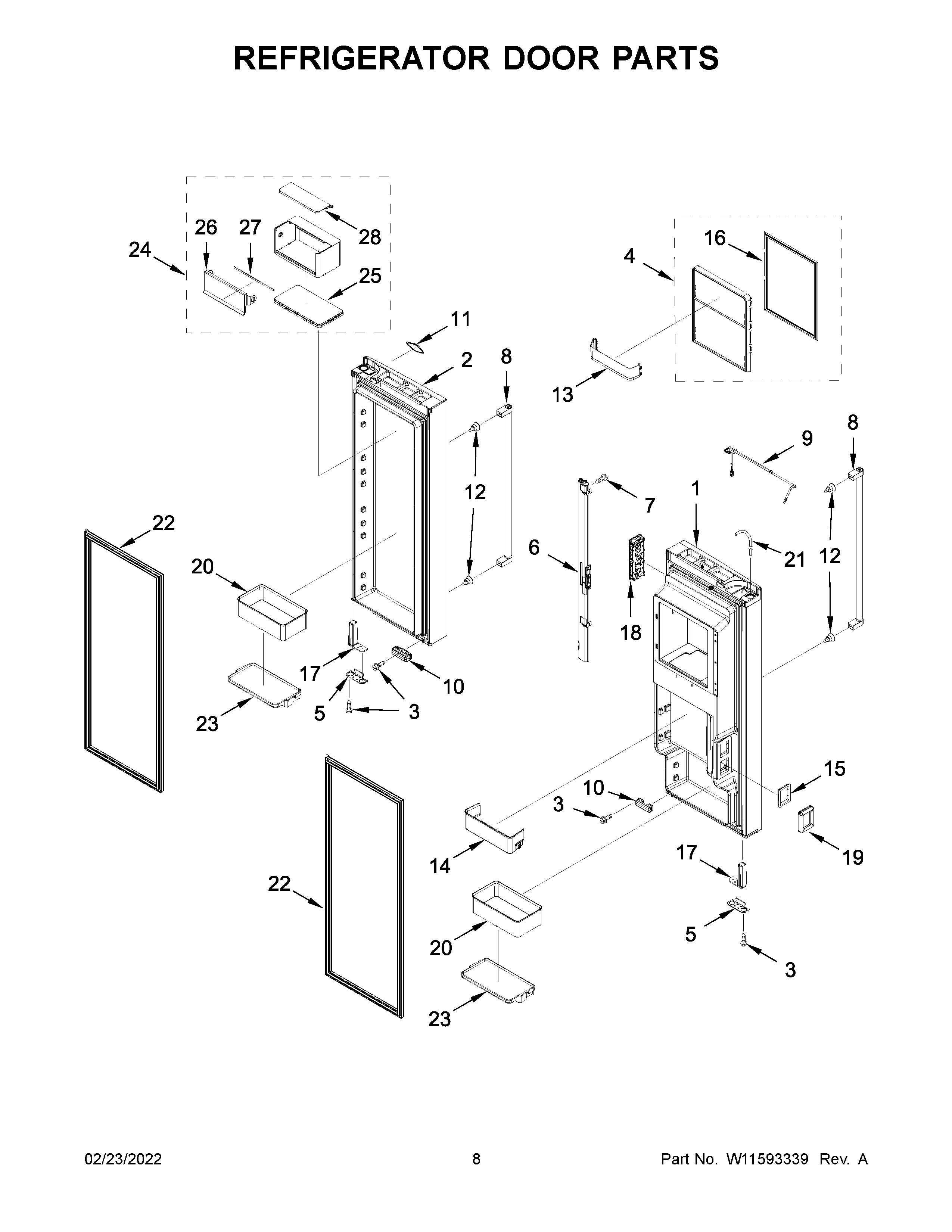

KRFC704FBS04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ADOOR, REFRIGERATOR LEFT HAND (STAINLESS STEEL (ALSO ORDER ITEM # 18))
1W11610990 Whirlpool Door Assembly
2W10849510 Whirlpool Refrigerator Door Assembly
2AW10849512 Whirlpool Refrigerator Door Assembly
4W11594927 Whirlpool Refrigerator Ice Door
5W11243377 Whirlpool Refrigerator Door Stop
6AW11649966 Whirlpool Mullion Rail
6W11084811 Whirlpool Refrigerator Mullen Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9CABINET (NOT A SERVICEABLE PART)
10W10407187 Whirlpool Refrigerator Door Bumper
10AW10798308 Whirlpool Refrigerator Door Bumper
11W10839793 Whirlpool Refrigerator Nameplate
12W11449276 Whirlpool Handle Support
13W10887799 Whirlpool Trivet
14W10887800 Whirlpool Cantilever Bin
15W10834282 Whirlpool Refrigerator Retainer
16W11625086 Whirlpool Refrigerator Gasket
17AW11188796 Whirlpool Refrigerator Closer
17W11163783 Whirlpool Refrigerator Closer
18W11574767-includeCORE Whirlpool W11574767 Refrigerator UI Panel with Core
19W11227369 Whirlpool Refrigerator Gasket
20W10887801 Whirlpool Refrigerator Cantilever Bin
21W11518276 Whirlpool Refrigerator Water Tube
22AW10917313 Whirlpool Refrigerator Door Gasket
22W10917312 Whirlpool Refrigerator Door Gasket
23TRIM
24W10887802 Whirlpool Refrigerator Cantilever Bin
25W10795523 Whirlpool Refrigerator Base
26W10803630 Whirlpool Refrigerator Compressor Door
27W10795525 Whirlpool Gasket Assembly
28W10795524 Whirlpool Refrigerator Cover
