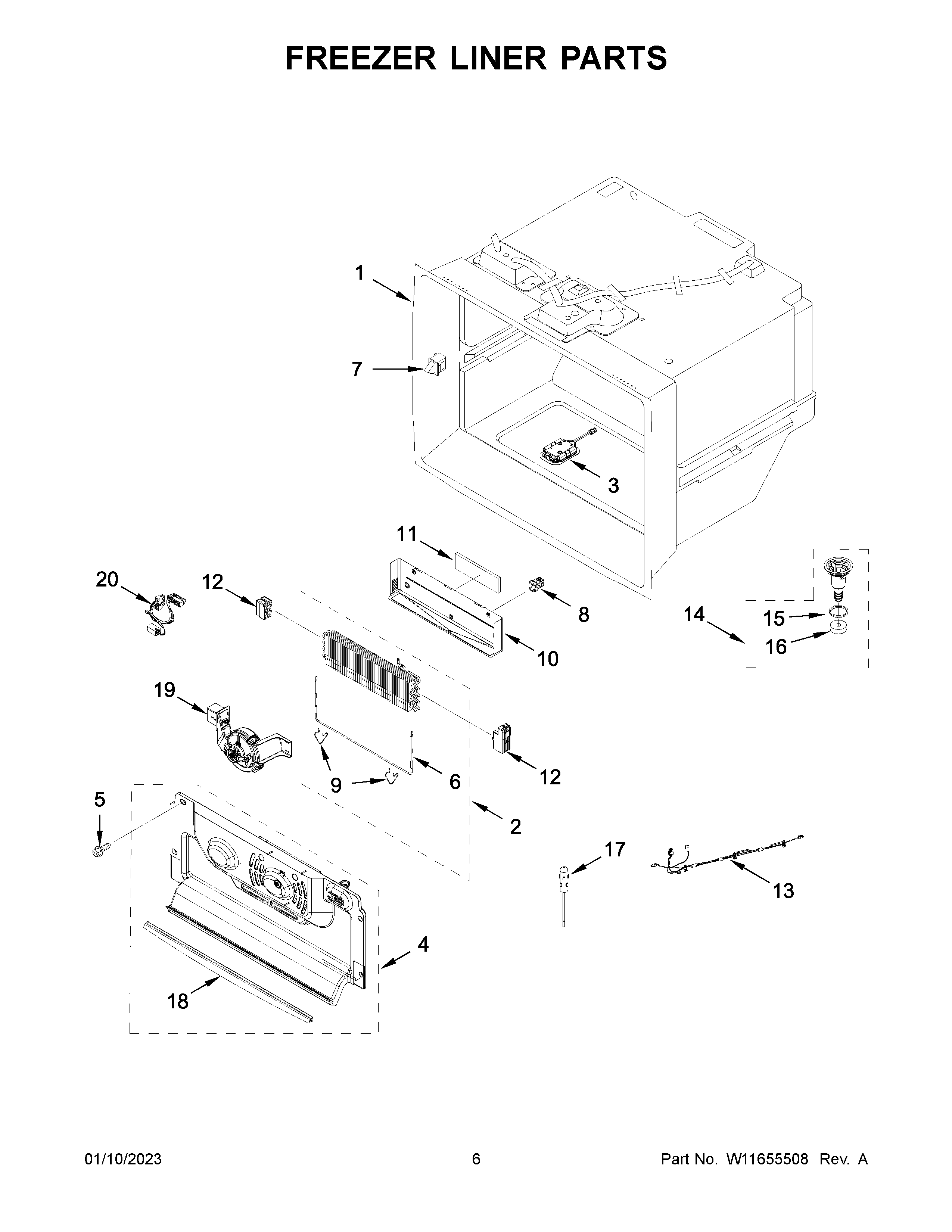

KRFC704FBS05 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11565768 Whirlpool Evaporator
2B	W11506620 Whirlpool Refrigerator Coupler
3	W11483116 Whirlpool Refrigerator Module
4	W11394920 Whirlpool Refrigerator Evaporator Cover
5	67006425 Whirlpool Refrigerator Screw
6	W11384694 Whirlpool Heater
7	W11291142 Whirlpool Refrigerator Switch
8	CLIP, EVAP (2)
9	CLIP, DEFROST HEATER
10	W11483266 Whirlpool Shield
11	GASKET
12A	W10668198 Whirlpool Refrigerator Evaporator Block
12	DAM, AIR (LEFT HAND)
13	W11715973 Whirlpool Wire Harness
14	W10503218 Whirlpool Refrigerator Funnel
15	WPM0500703 Whirlpool Refrigerator O-Ring Seal
16	WPB8381501 Whirlpool Refrigerator Door Gasket
17	W11318270 Whirlpool Refrigerator Thermistor
18	W10770923 Whirlpool Refrigerator Gasket
19	W11407678 Whirlpool Refrigerator Fan
20	W10911358 Whirlpool Refrigerator Wire Harness
