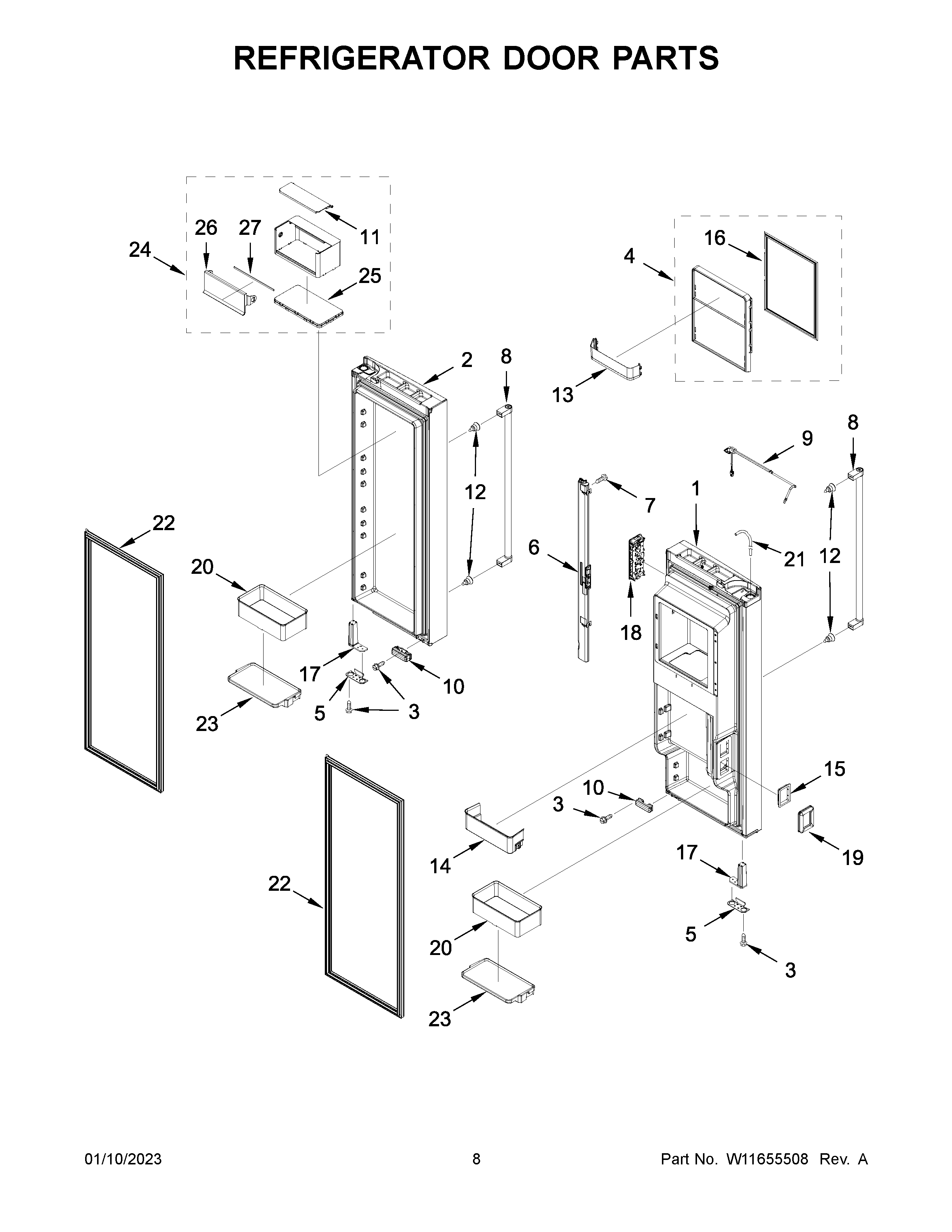

KRFC704FBS05 05 – REFRIGERATOR DOOR PARTS

KRFC704FBS05 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC704FBS05 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11610990 Whirlpool Door Assembly
2W10849510 Whirlpool Refrigerator Door Assembly
4W11594927 Whirlpool Refrigerator Ice Door
5W11243377 Whirlpool Refrigerator Door Stop
6W11656921 Whirlpool Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9CABINET (NOT A SERVICEABLE PART)
10W10407187 Whirlpool Refrigerator Door Bumper
11W10795524 Whirlpool Refrigerator Cover
12W11449276 Whirlpool Handle Support
13W10887799 Whirlpool Trivet
14W10887800 Whirlpool Cantilever Bin
15W10834282 Whirlpool Refrigerator Retainer
16W11625086 Whirlpool Refrigerator Gasket
17AW11188796 Whirlpool Refrigerator Closer
17W11163783 Whirlpool Refrigerator Closer
18W11574767-includeCORE Whirlpool W11574767 Refrigerator UI Panel with Core
19W11227369 Whirlpool Refrigerator Gasket
20W10887801 Whirlpool Refrigerator Cantilever Bin
21W11518276 Whirlpool Refrigerator Water Tube
22W10917312 Whirlpool Refrigerator Door Gasket
23TRIM
24W10887802 Whirlpool Refrigerator Cantilever Bin
25W10795523 Whirlpool Refrigerator Base
26W10803630 Whirlpool Refrigerator Compressor Door
27W10795525 Whirlpool Gasket Assembly
