KRFC704FBS05 06 – FREEZER DOOR PARTS

KRFC704FBS05 06 – FREEZER DOOR PARTS

Written by

in

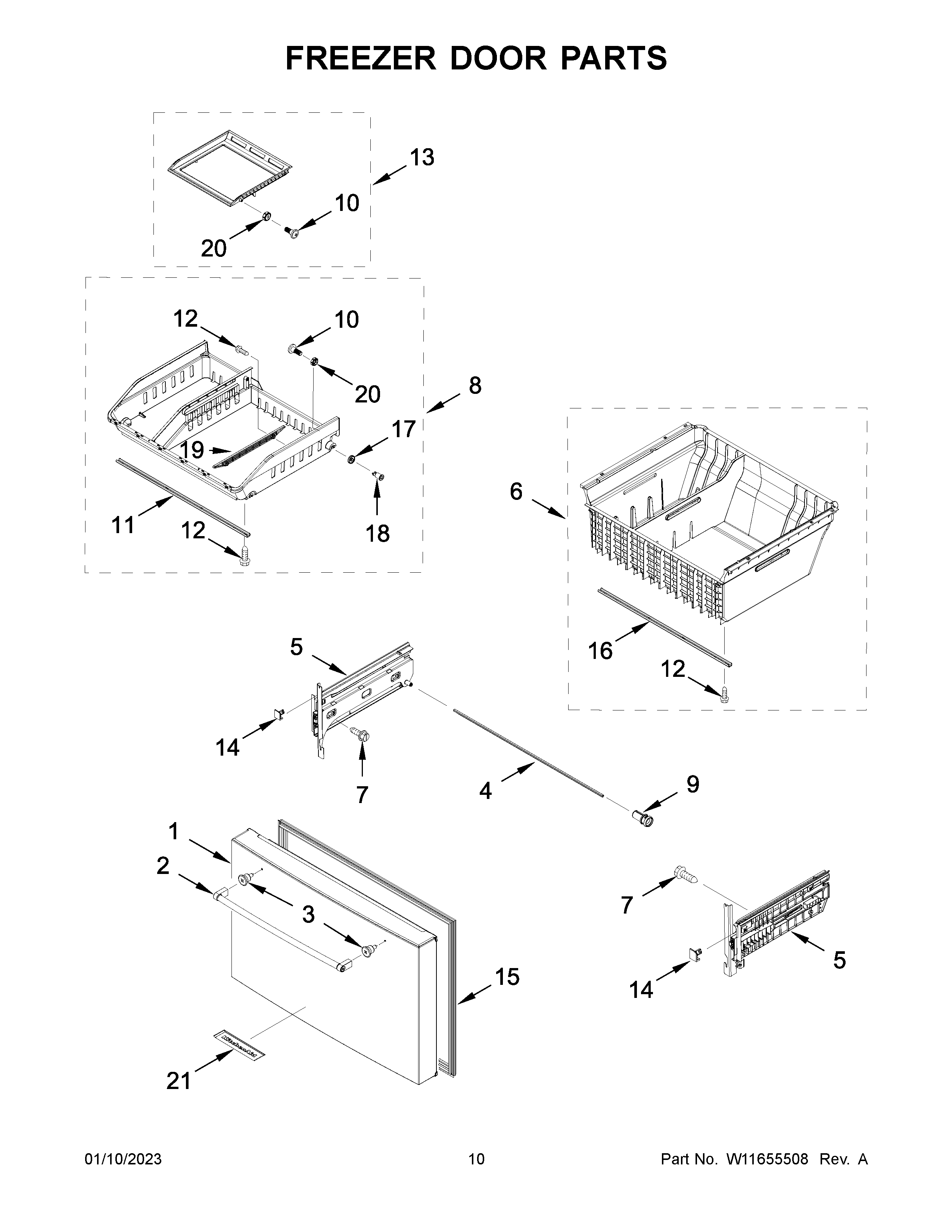

KRFC704FBS05 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W10849521 Whirlpool Refrigerator Door Assembly
2W11483535 Whirlpool Refrigerator Handle
3W11449276 Whirlpool Handle Support
4W11173556 Whirlpool Refrigerator Shaft
5AW11241268 Whirlpool Refrigerator Bracket
5W11241580 Whirlpool Refrigerator Bracket
6W10795851 Whirlpool Refrigerator Freezer Bin
7WP67006908 Whirlpool Refrigerator Screw
8W11102087 Whirlpool Refrigerator Freezer Bin
9WPW10277361 Whirlpool Refrigerator Collar
1067006692 Whirlpool Refrigerator Screw
11W11677723 Whirlpool Support
12WP489443 Whirlpool Refrigerator Screw
13W10887810 Whirlpool Refrigerator Freezer Bin
14AW10795822 Whirlpool Refrigerator Stop Pan
14W10795820 Whirlpool Refrigerator Pan Stop
15W11594710 Whirlpool Gasket
16BAR, SUPPORT
17W10874022 Whirlpool Refrigerator Roller
18W10839803 Whirlpool Refrigerator Axle
19RAIL, GUARD
20W10837296 Whirlpool Refrigerator Roller
21W10839793 Whirlpool Refrigerator Nameplate
