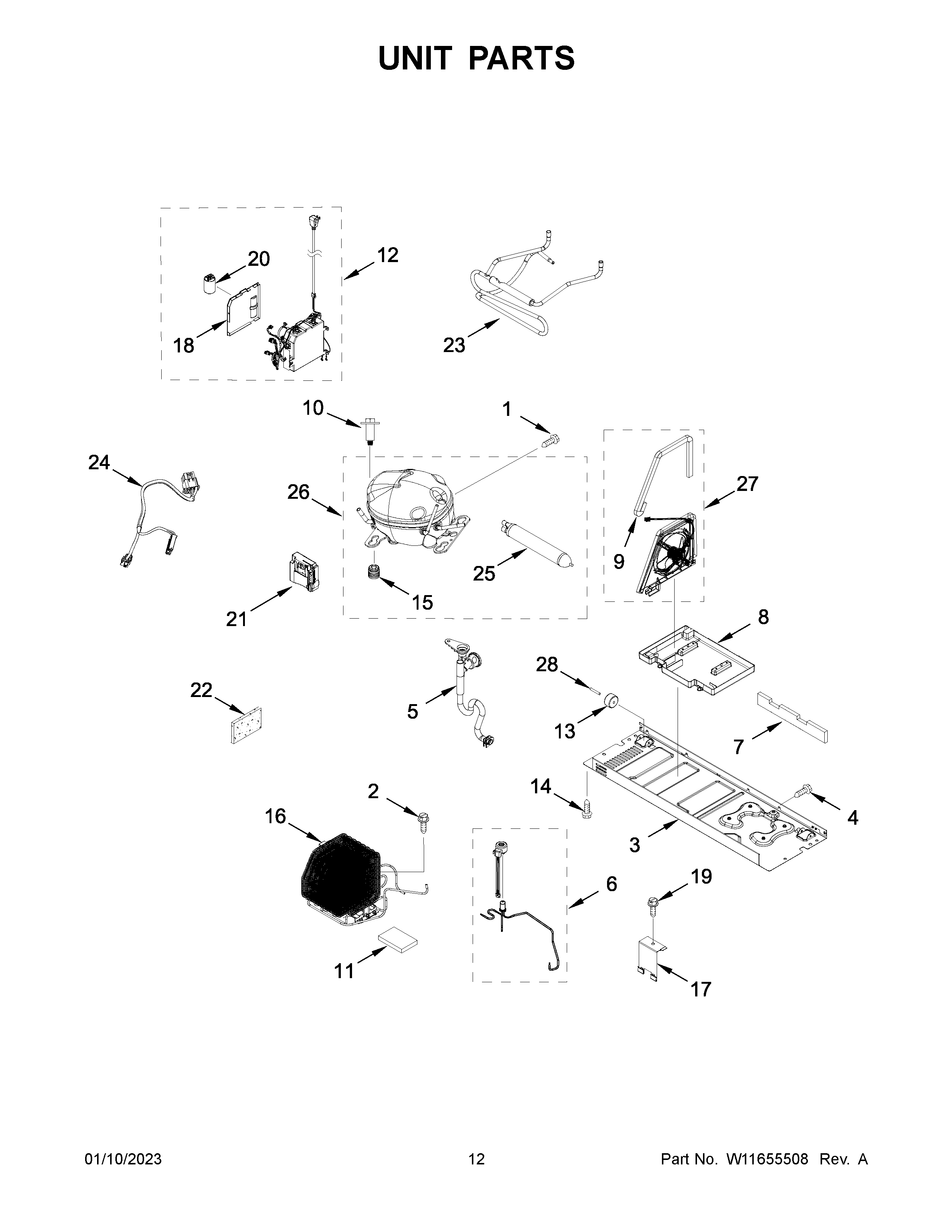

KRFC704FBS05 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10141625 Whirlpool Refrigerator Screw Assembly
2	W10820084 Whirlpool Screw
3	W11449163 Whirlpool Plate
4	67006425 Whirlpool Refrigerator Screw
5	ASSEMBLY, DRAIN EXTENSION
6	W11574310 Whirlpool Valve Assembly
6B	W11506625 Whirlpool Refrigerator Coupler
7	W11706809 Whirlpool Insulation
8	W11490557 Whirlpool Evaporator Tray
9	W10683708 Whirlpool Gasket
10	W11417341 Whirlpool Refrigerator Screw
11	W10852725 Whirlpool Refrigerator Grommet
12	W11567409-includeCORE Whirlpool W11567409 Refrigerator Electronic Control Board + Core
13	W10774846 Whirlpool Refrigerator Cabinet Roller
14	Screw
15	WPW10169124 Whirlpool Refrigerator Grommet
16	W11567329 Whirlpool Condenser Assembly
17	W10391376 Whirlpool Bracket Assembly
18	COVER, HOUSING
19	SCREW
20	FILTER, EMI
21	W11578028 Whirlpool Refrigerator Inverter Box
22	W11553819 Whirlpool Refrigerator Insulation
23	W11646687 Whirlpool Tube Assembly
24	HARNS-WIRE
25B	W11506623 Whirlpool Refrigerator Coupler
25	W11109499 Whirlpool Refrigerator Tube
25A	W11504445 Whirlpool Refrigerator Coupler
26B	W11504415 Whirlpool Refrigerator Coupler
26C	W11506621 Whirlpool Refrigerator Coupler
26A	W11504431 Whirlpool Microwave Coupler
26D	W11506635 Whirlpool Refrigerator Valve Coupler
26	W11578205 Whirlpool Refrigerator Compressor
27	W11574308 Whirlpool Fan
28	67006434 Whirlpool Axle Pin
