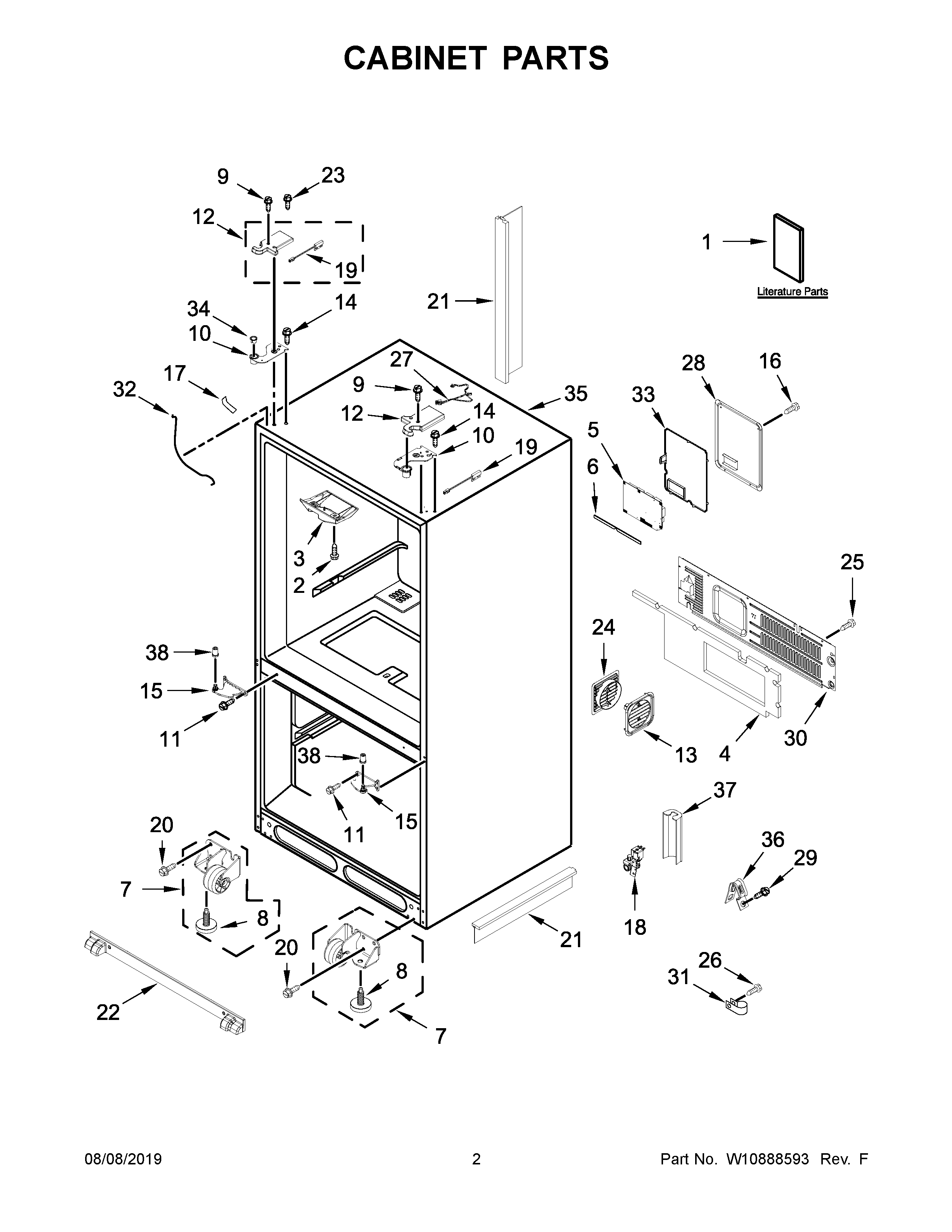

KRFC704FPS00 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET, ENERGY GUIDE
1ATECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1BTECH SHEET, USE AND CARE GUIDE
2W11311945 Whirlpool Refrigerator Screw
3W10840312 Whirlpool Refrigerator Block PIV
4W11688554 Whirlpool Insulation
5W11333076-includeCORE Whirlpool W11333076 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7AROLLER-CAB
7ROLLER-CAB
8W10846099 Whirlpool Refrigerator Leveler
9WP98165 Whirlpool Screw
10AW11032616 Whirlpool Refrigerator Door Hinge
10W11032620 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11199487 Whirlpool Refrigerator Cover
12AW11204565 Whirlpool Refrigerator Cover Assembly
13WPL W10838745
14W11126052 Whirlpool Screw Assembly
15W10816322 Whirlpool Refrigerator Door Hinge
15AW10816323 Whirlpool Refrigerator Door Hinge
16W11686675 Whirlpool Screw
17W10868482 Whirlpool Cover
18VALVE
19W11171663 Whirlpool Refrigerator Switch
2067006564 Whirlpool Refrigerator Screw
21W10878918 Whirlpool Refrigerator Divider
21AW10878920 Whirlpool Refrigerator Divider
22W10887787 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24WPL W10838744
2667006425 Whirlpool Refrigerator Screw
27W10831131 Whirlpool Refrigerator Wire Harness
28W10754144 Whirlpool Refrigerator Cover
29SCREW
30W10669259 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32AW10853599 Whirlpool Refrigerator Water Tube
32W10853597 Whirlpool Refrigerator Water Tube
33W10768379 Whirlpool Refrigerator Cover
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37W10208592 Whirlpool Refrigerator Valve Cover
38W11223833 Whirlpool Refrigerator Hinge Bushing
