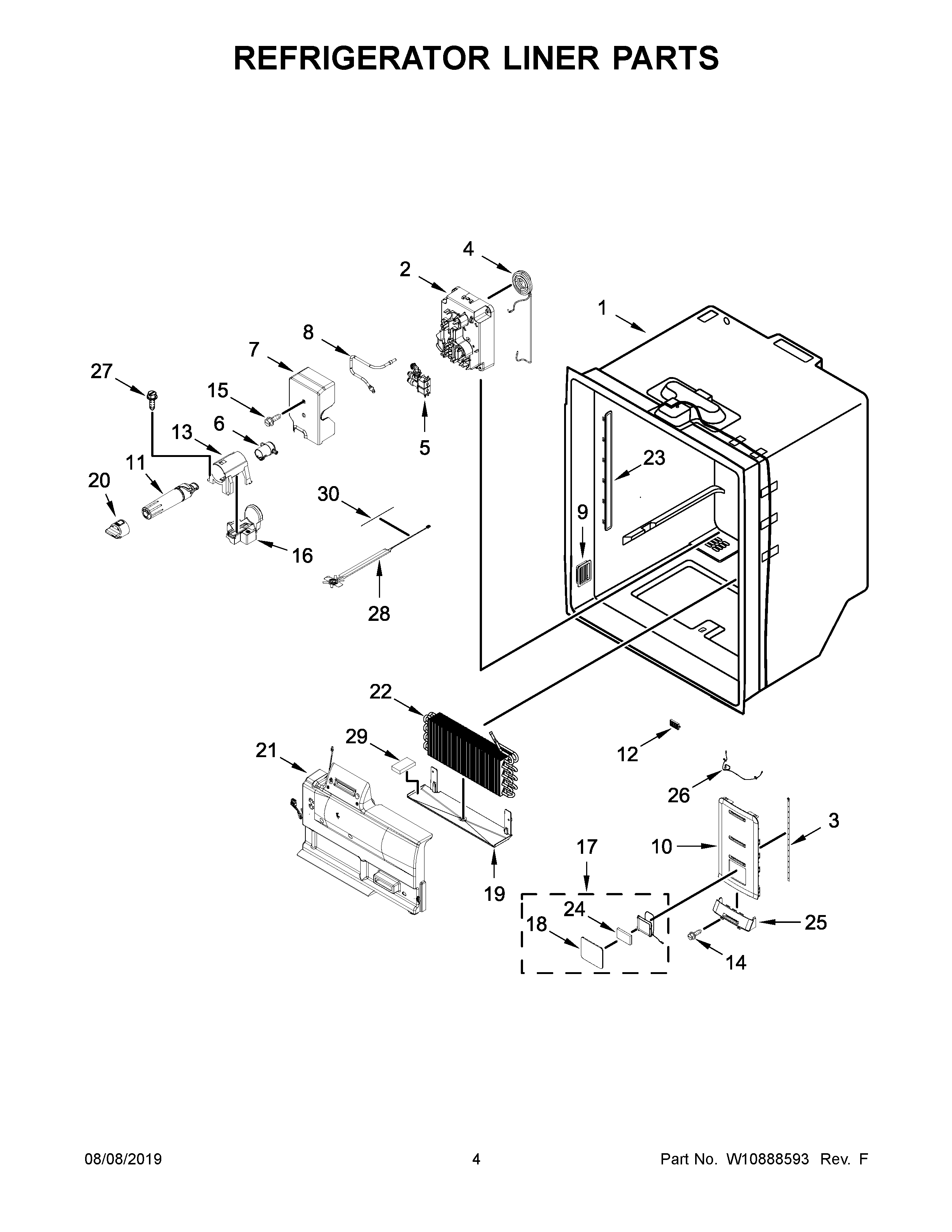

KRFC704FPS00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10871610 Whirlpool Refrigerator Wire Harness
2W10708473 Whirlpool Refrigerator Housing
3W10887788 Whirlpool Refrigerator Module
4W11024082 Whirlpool Refrigerator Reservoir
5W11535162 Whirlpool Refrigerator Valve
6W11024083 Whirlpool Refrigerator Housing
7W10900011 Whirlpool Refrigerator Cover
8W11223013 Whirlpool Refrigerator Water Tube
9W10815965 Whirlpool Refrigerator Cover
10W11259417 Whirlpool Refrigerator Air Tower
11EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13W11189600 Whirlpool Refrigerator Bracket
14W10119266 Whirlpool Screw
15WP67006908 Whirlpool Refrigerator Screw
16W10839501 Whirlpool Refrigerator Insulation
17W10887778 Whirlpool Refrigerator Electronic Control Board
18W11252060 Whirlpool Refrigerator Cover
19W11673436 Whirlpool Bracket
20CAP-FILTER
21W11167902 Whirlpool Refrigerator Evaporator Cover
22W10865322 Whirlpool Refrigerator Evaporator
23W11115320 Whirlpool Refrigerator Module
24W10673897 Whirlpool Refrigerator Insulation
25W10815960 Whirlpool Refrigerator Air Tower
26W10848895 Whirlpool Refrigerator Wire Harness
27WP489474 Whirlpool Refrigerator Screw
28W11024084 Whirlpool Refrigerator Heater
29W10818463 Whirlpool Refrigerator Gasket
30W10910632 Whirlpool Refrigerator Sleeve
