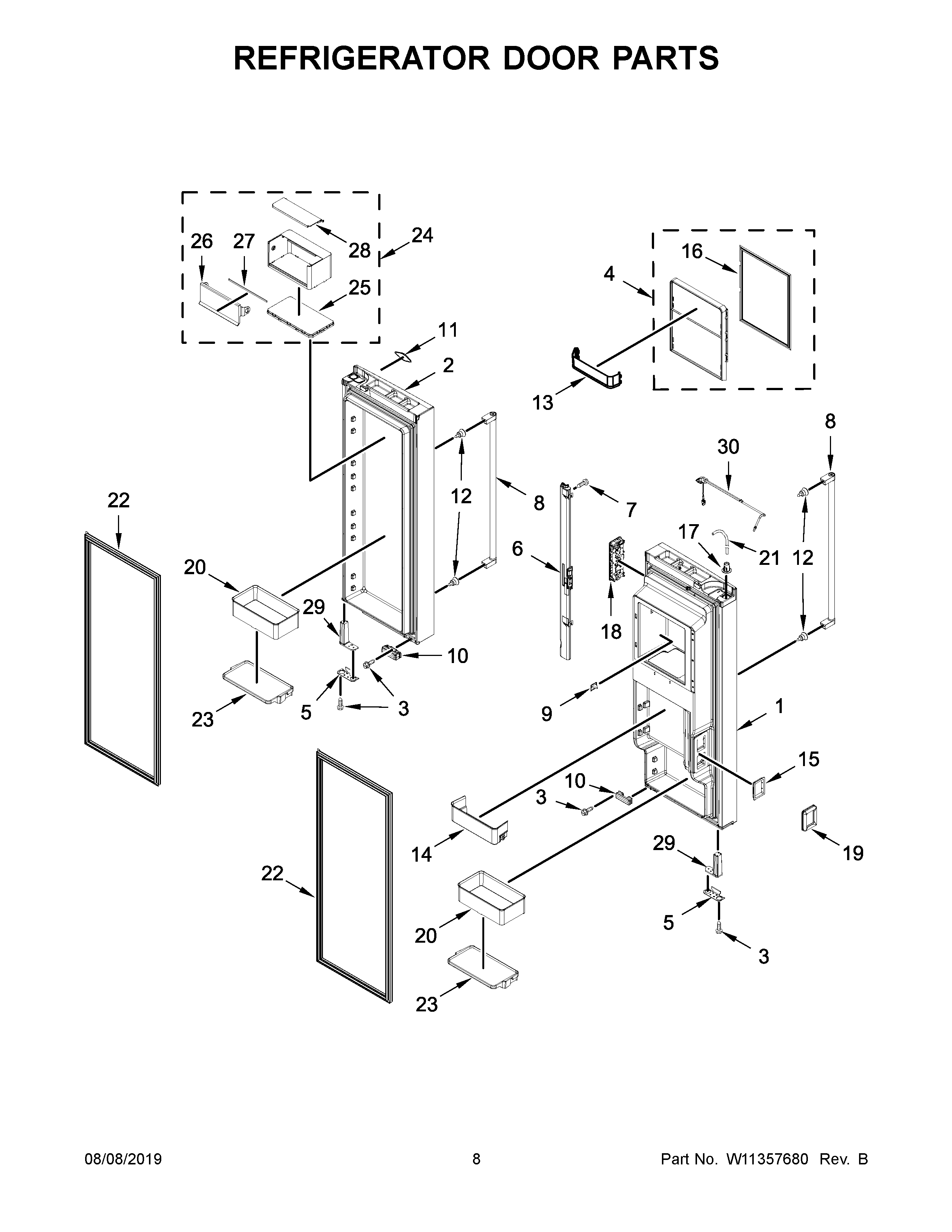

KRFC704FPS03 05 – REFRIGERATOR DOOR PARTS

KRFC704FPS03 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC704FPS03 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11254957 Whirlpool Refrigerator Door Assembly
2W10849509 Whirlpool Refrigerator Door Assembly
4W11594927 Whirlpool Refrigerator Ice Door
5W11243377 Whirlpool Refrigerator Door Stop
6W11649966 Whirlpool Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8W11483532 Whirlpool Refrigerator Handle
9W11291144 Whirlpool Refrigerator Switch
10W10798308 Whirlpool Refrigerator Door Bumper
11W10839793 Whirlpool Refrigerator Nameplate
12W11449276 Whirlpool Handle Support
13W10887799 Whirlpool Trivet
14W10887800 Whirlpool Cantilever Bin
15W10834282 Whirlpool Refrigerator Retainer
16W11625086 Whirlpool Refrigerator Gasket
17W11315303 Whirlpool Refrigerator Clip
18W11330486 Whirlpool Refrigerator UI Panel
19W11227369 Whirlpool Refrigerator Gasket
20W10887801 Whirlpool Refrigerator Cantilever Bin
21W10883965 Whirlpool Refrigerator Water Tube
22W10917313 Whirlpool Refrigerator Door Gasket
23TRIM
24W10887802 Whirlpool Refrigerator Cantilever Bin
25W10795523 Whirlpool Refrigerator Base
26W10803630 Whirlpool Refrigerator Compressor Door
27W10795525 Whirlpool Gasket Assembly
28W10795524 Whirlpool Refrigerator Cover
29AW11189598 Whirlpool Refrigerator Closer
29W11179355 Whirlpool Refrigerator Closer
30W11366500 Whirlpool Refrigerator Water Tube
