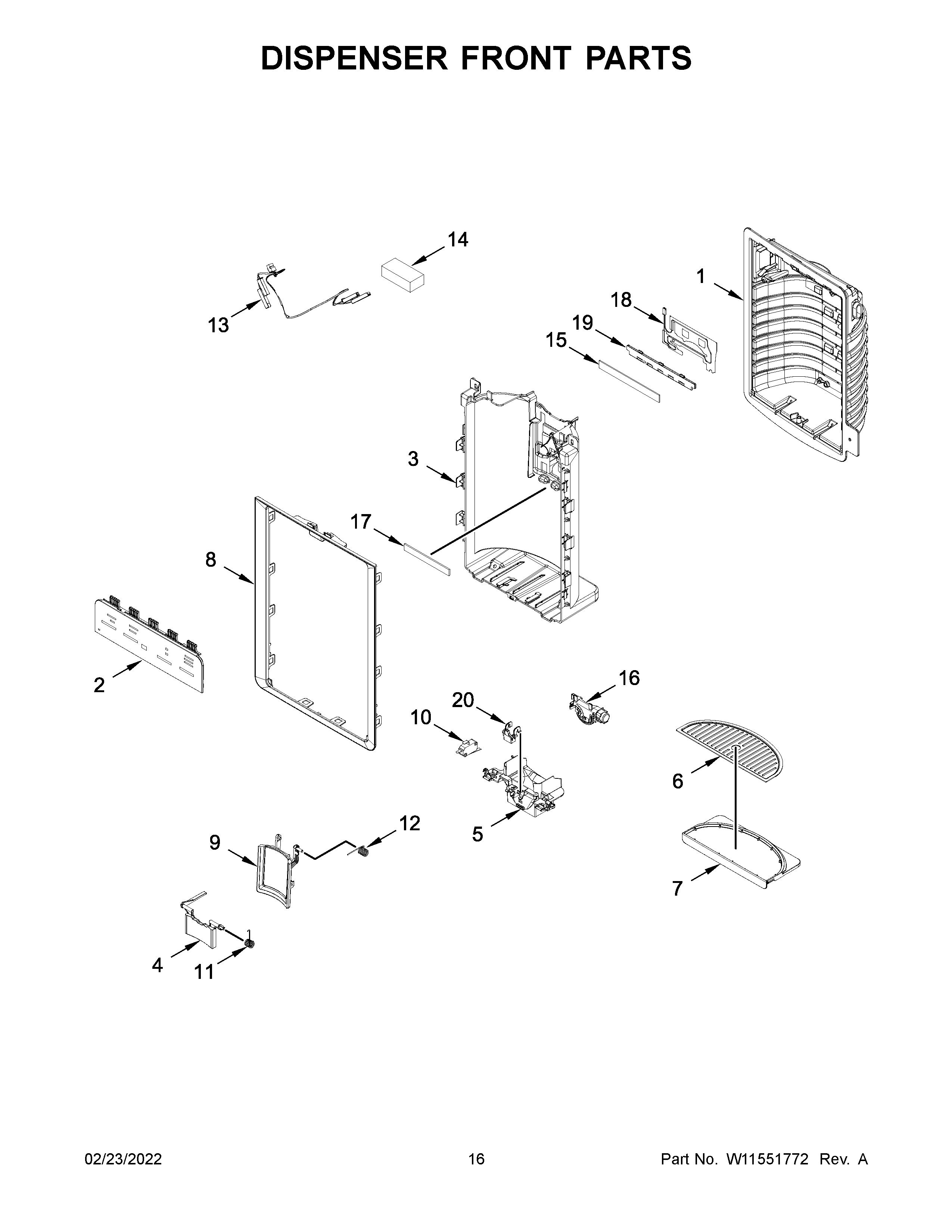

KRFC704FPS05 09 – DISPENSER FRONT PARTSadmin2025-04-26T12:28:27+00:00KRFC704FPS05 09 – DISPENSER FRONT PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)2W11574766-includeCORE Whirlpool W11574766 Refrigerator UI Panel + Core3W11227946 Whirlpool Refrigerator Shield4W11251709 Whirlpool Refrigerator Pad5W11204892 Whirlpool Refrigerator Ice Door6W11220377 Whirlpool Refrigerator Tray7W11252157 Whirlpool Refrigerator Drip Tray8W11222983 Whirlpool Refrigerator Trim9W10815345 Whirlpool Refrigerator Pad10W11087492 Whirlpool Refrigerator Water Dispenser Switch11W10672578 Whirlpool Refrigerator Spring12W11109505 Whirlpool Refrigerator Spring13W10704135 Whirlpool Refrigerator Wire Harness14W10888235 Whirlpool Refrigerator Gasket15W10696713 Whirlpool Refrigerator Door Gasket16W11189145 Whirlpool Refrigerator Ice Door17W10663699 Whirlpool Refrigerator Gasket18W10752689 Whirlpool Refrigerator Heater19W10757499 Whirlpool Refrigerator Bracket20W10809296 Whirlpool Refrigerator Guide
