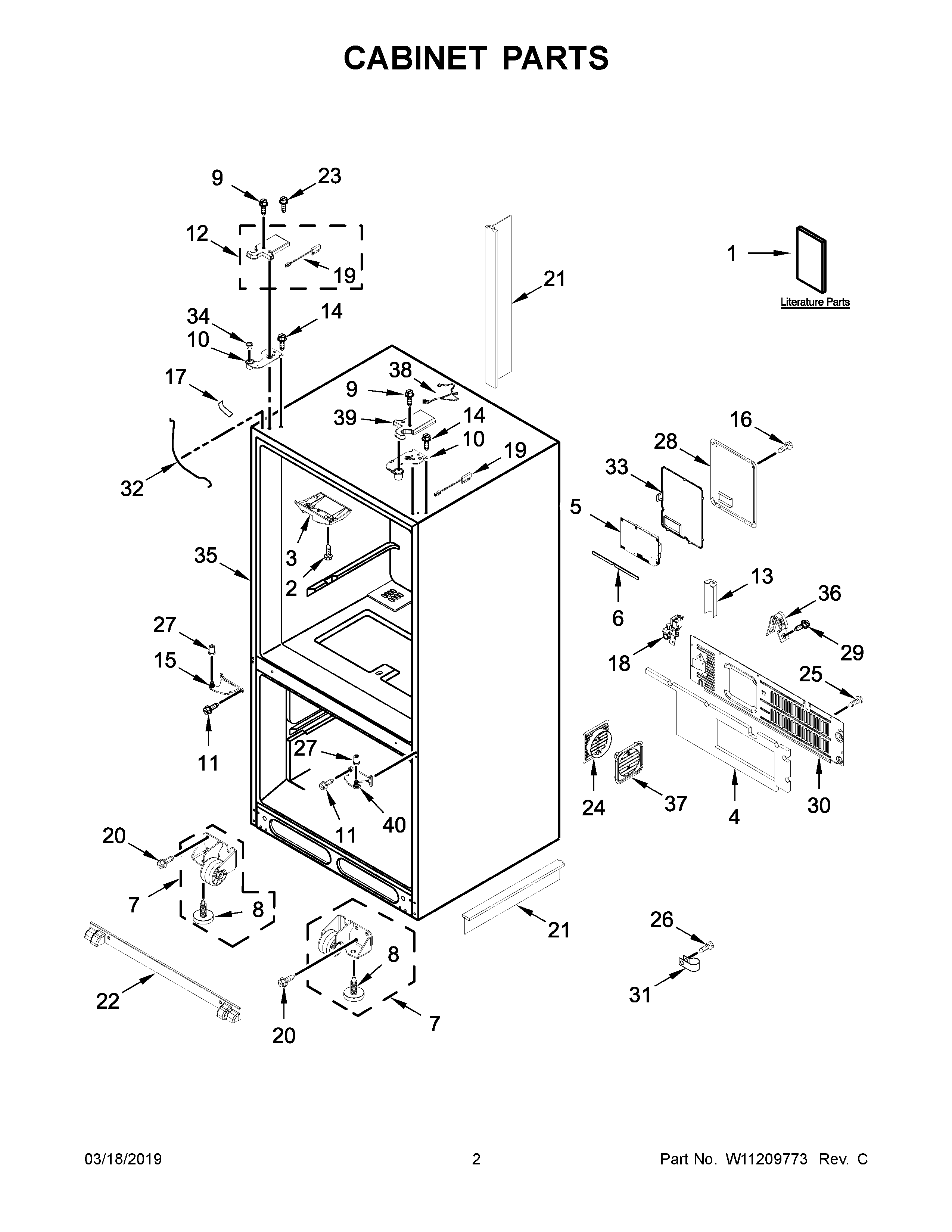

KRFC704FSS01 02 – CABINET PARTS

KRFC704FSS01 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET, ENERGY GUIDE
1BTECH SHEET, USE AND CARE GUIDE
1ATECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
2W10854958 Whirlpool Refrigerator Screw
3W10840312 Whirlpool Refrigerator Block PIV
4W11688554 Whirlpool Insulation
5W11533213-includeCORE Whirlpool W11533213 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7ROLLER-CAB
7AROLLER-CAB
8W10846099 Whirlpool Refrigerator Leveler
9WP98165 Whirlpool Screw
10W11032616 Whirlpool Refrigerator Door Hinge
10AW11032620 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11225850 Whirlpool Refrigerator Cover
12AW11371720 Whirlpool Refrigerator Cover
13W10208592 Whirlpool Refrigerator Valve Cover
14W11126052 Whirlpool Screw Assembly
15AW10816322 Whirlpool Refrigerator Door Hinge
15W10691674 Whirlpool Refrigerator Door Hinge
16W11686675 Whirlpool Screw
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17AW10868482 Whirlpool Cover
18VALVE
19W11221357 Whirlpool Refrigerator Switch
2067006564 Whirlpool Refrigerator Screw
21W10878918 Whirlpool Refrigerator Divider
21AW10878920 Whirlpool Refrigerator Divider
22W10887785 Whirlpool Refrigerator Front Grille
22AW10887787 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24WPL W10835554
24AWPL W10838744
2667006425 Whirlpool Refrigerator Screw
27W11223833 Whirlpool Refrigerator Hinge Bushing
28W10754144 Whirlpool Refrigerator Cover
29SCREW
30W10669259 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32AW10853599 Whirlpool Refrigerator Water Tube
32W10853597 Whirlpool Refrigerator Water Tube
33W10768379 Whirlpool Refrigerator Cover
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37W10835557 Whirlpool Refrigerator Vent
37AWPL W10838745
38W10858468 Whirlpool Refrigerator Wire Harness
39AW11204565 Whirlpool Refrigerator Cover Assembly
39W10819301 Whirlpool Refrigerator Cover
40W10691700 Whirlpool Refrigerator Door Hinge
40AW10816323 Whirlpool Refrigerator Door Hinge
41WPL W11243631
