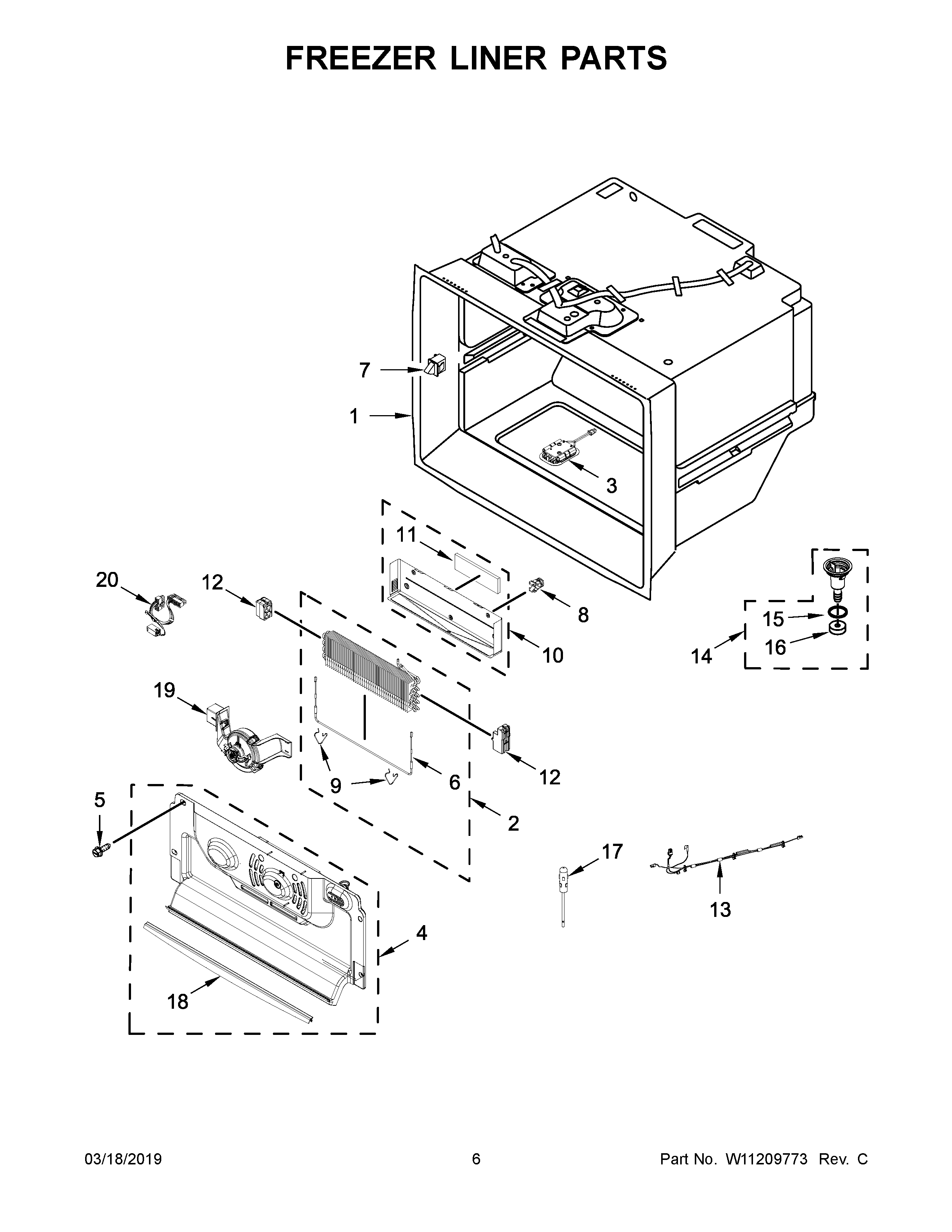

KRFC704FSS01 04 – FREEZER LINER PARTS
Written by
in
KRFC704FSS01 04 – FREEZER LINER PARTS
Products
Position
Product
1
CABINET (NOT A SERVICEABLE PART)
2
W11099748 Whirlpool Refrigerator Evaporator
3
W11483116 Whirlpool Refrigerator Module
4
W11394920 Whirlpool Refrigerator Evaporator Cover
5
67006425 Whirlpool Refrigerator Screw
6
W11700340 Whirlpool Heater Assembly
7
W11291142 Whirlpool Refrigerator Switch
8
CLIP, EVAP (2)
9
W10683507 Whirlpool Refrigerator Clip
10
SHIELD, HEAT
11
GASKET
12A
W10668198 Whirlpool Refrigerator Evaporator Block
12
W10668201 Whirlpool Refrigerator Duct
13
W11614809 Whirlpool Refrigerator Wire Harness
14
W10503218 Whirlpool Refrigerator Funnel
15
WPM0500703 Whirlpool Refrigerator O-Ring Seal
16
WPB8381501 Whirlpool Refrigerator Door Gasket
17
THERMISTOR
18
W10770923 Whirlpool Refrigerator Gasket
19
W11407678 Whirlpool Refrigerator Fan
20
W10911358 Whirlpool Refrigerator Wire Harness
←
