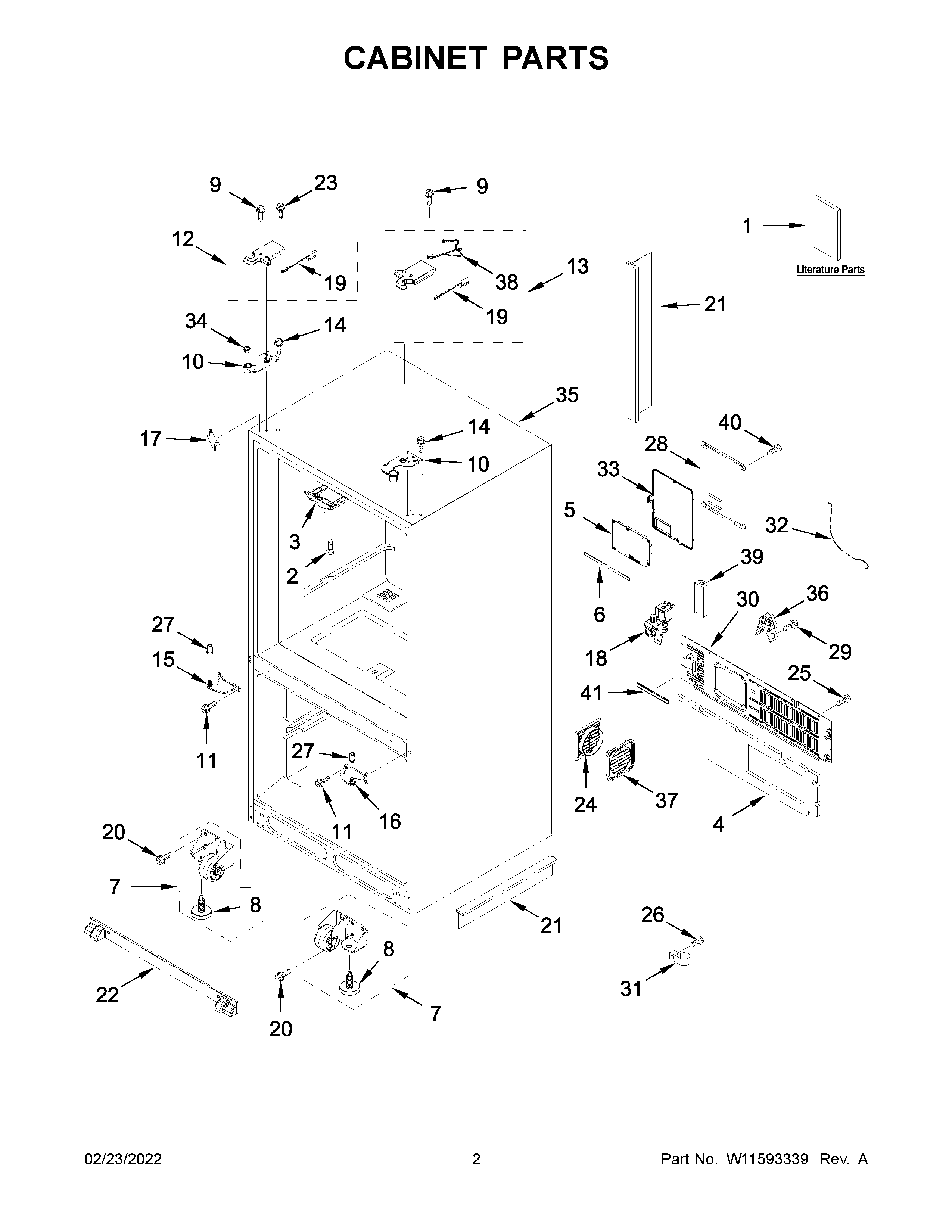

KRFC704FSS04 02 – CABINET PARTS

KRFC704FSS04 02 – CABINET PARTS

Written by

in

KRFC704FSS04 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET, ENERGY GUIDE
1BTECH SHEET, OWNERS MANUAL
1TECH SHEET (ENGLISH)
1ATECH SHEET (FRENCH)
2W10854958 Whirlpool Refrigerator Screw
3W10840312 Whirlpool Refrigerator Block PIV
4W11688554 Whirlpool Insulation
5W11664342-includeCORE Whirlpool W11664342 Electronic Control Board with Core
6W10415341 Whirlpool Refrigerator Gasket
7ROLLER-CAB
7AROLLER-CAB
8W10846099 Whirlpool Refrigerator Leveler
9WP98165 Whirlpool Screw
10W11032616 Whirlpool Refrigerator Door Hinge
10AW11032620 Whirlpool Refrigerator Door Hinge
11W11573362 Whirlpool Screw Assembly
12COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
12AW11574772 Whirlpool Cover
13W11251738 Whirlpool Refrigerator Cover
13AW10895492 Whirlpool Refrigerator Cover
14W11126052 Whirlpool Screw Assembly
15AW10816322 Whirlpool Refrigerator Door Hinge
15W10691674 Whirlpool Refrigerator Door Hinge
16W10691700 Whirlpool Refrigerator Door Hinge
16AW10816323 Whirlpool Refrigerator Door Hinge
17AW10868482 Whirlpool Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W11567335 Whirlpool Refrigerator Valve
19W11221357 Whirlpool Refrigerator Switch
2067006564 Whirlpool Refrigerator Screw
21AW10878920 Whirlpool Refrigerator Divider
21DIVIDER, AIR (REAR)
22W10887785 Whirlpool Refrigerator Front Grille
22AW10887787 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24AWPL W10838744
24WPL W10835554
2667006425 Whirlpool Refrigerator Screw
27W11223833 Whirlpool Refrigerator Hinge Bushing
28W10754144 Whirlpool Refrigerator Cover
29SCREW
30W11502635 Whirlpool Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32AW11391304 Whirlpool Refrigerator Water Tube
32W11518273 Whirlpool Tube
33W10768379 Whirlpool Refrigerator Cover
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37W10835557 Whirlpool Refrigerator Vent
37AWPL W10838745
38W10858468 Whirlpool Refrigerator Wire Harness
39W10208592 Whirlpool Refrigerator Valve Cover
40W11686675 Whirlpool Screw
41WPL W11243631
