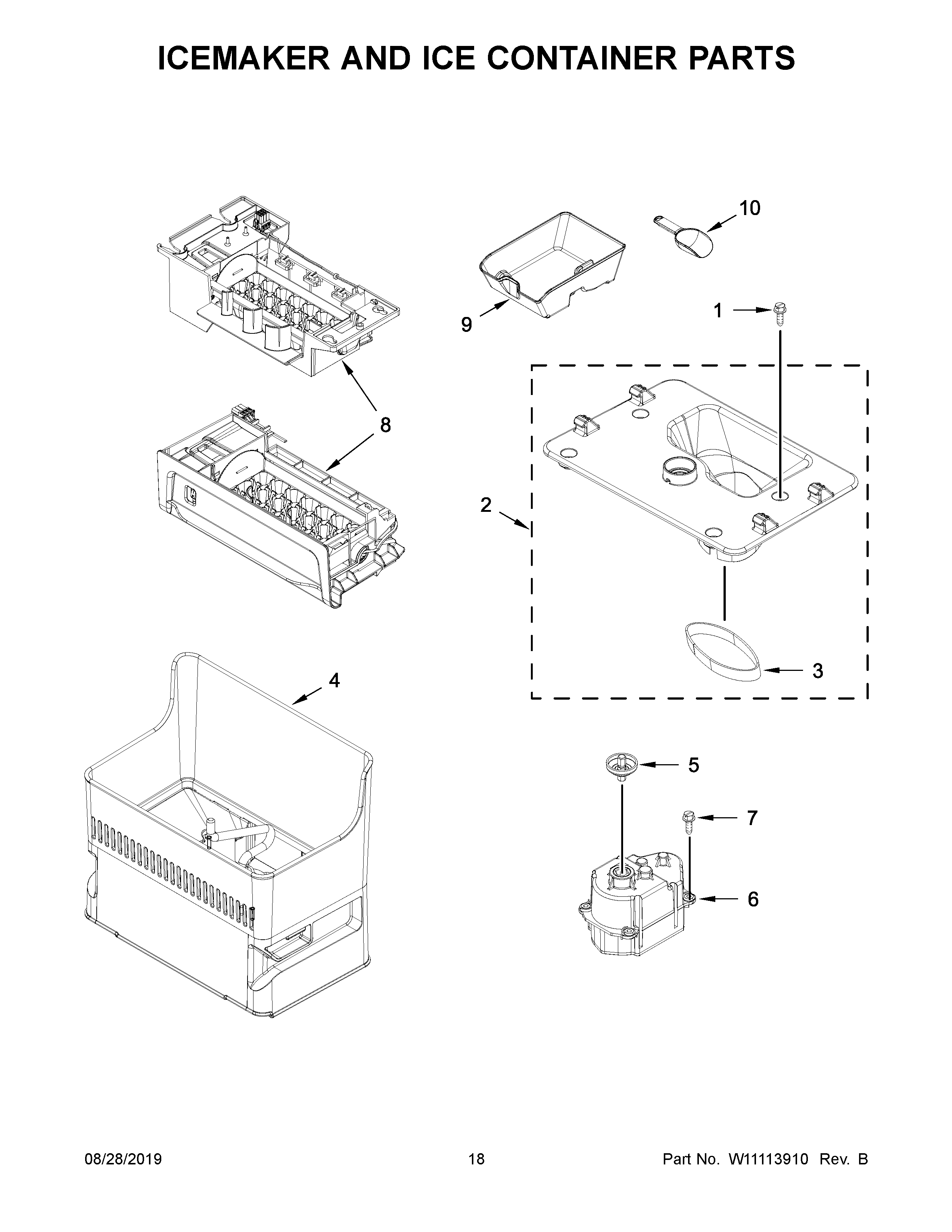

KRFC804GBS00 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	WPW10272364 Whirlpool Refrigerator Screw
2	W11448633 Whirlpool Refrigerator Plate
3	WPW10291905 Whirlpool Seal
4	ICE-CONTNR
5	SHAFT
6	W10822606 Whirlpool Dishwasher Dispenser Motor
7	WP8281163 Whirlpool Refrigerator Screw
8	W11557001 Whirlpool Refrigerator Icemaker
8A	ASSEMBLY, ICEMAKER (FREEZER DOOR)
9	BIN, ICE
10	W10182881 Whirlpool Refrigerator Scoop
