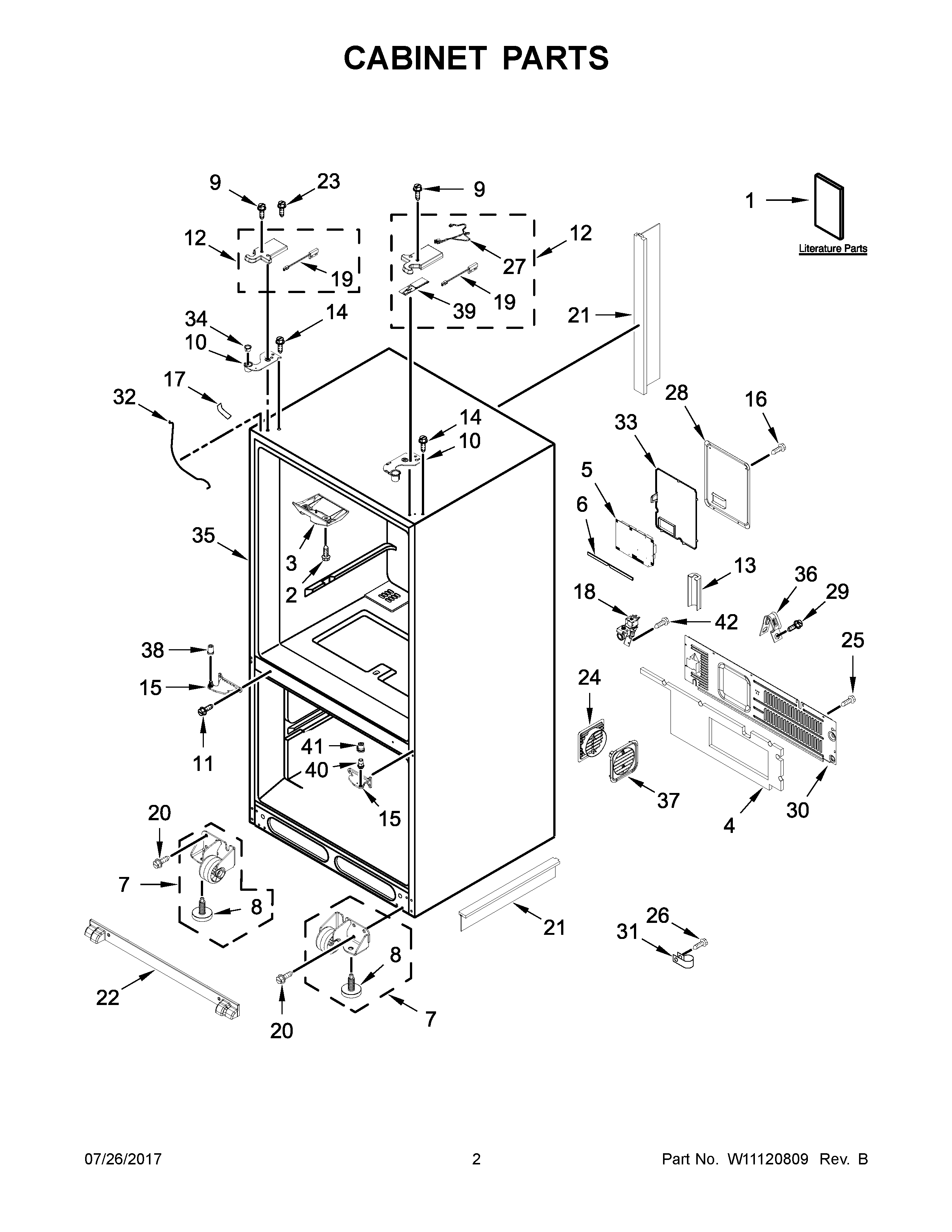

KRFC804GPS00 02 – CABINET PARTS

KRFC804GPS00 02 – CABINET PARTS

Written by

in

KRFC804GPS00 02 – CABINET PARTS

Products

PositionProduct
1ATECH SHEET (FRENCH)
1BTECH SHEET, USE AND CARE GUIDE
1CTECH SHEET, ENERGY GUIDE
1TECH SHEET (ENGLISH)
2W11311945 Whirlpool Refrigerator Screw
3W10840312 Whirlpool Refrigerator Block PIV
4W11688554 Whirlpool Insulation
5W11450890 Whirlpool Refrigerator UI Panel
6W10415341 Whirlpool Refrigerator Gasket
7AROLLER-CAB
7ROLLER-CAB
8W10846099 Whirlpool Refrigerator Leveler
9WP98165 Whirlpool Screw
10W11032616 Whirlpool Refrigerator Door Hinge
10AHINGE, TOP (RIGHT HAND)
11W11573362 Whirlpool Screw Assembly
12W11371720 Whirlpool Refrigerator Cover
12ACOVER, TOP HINGE RIGHT HAND (GREY)
13W10208592 Whirlpool Refrigerator Valve Cover
14W11126052 Whirlpool Screw Assembly
15W10816322 Whirlpool Refrigerator Door Hinge
15AHINGE, CENTER RIGHT HAND (GREY)
16W11686675 Whirlpool Screw
17W10868482 Whirlpool Cover
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19W11171663 Whirlpool Refrigerator Switch
2067006564 Whirlpool Refrigerator Screw
21W10878918 Whirlpool Refrigerator Divider
21AW10878920 Whirlpool Refrigerator Divider
22W10887787 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24WPL W10838744
2667006425 Whirlpool Refrigerator Screw
27ASSEMBLY, JUMPER WIRE
28W10754144 Whirlpool Refrigerator Cover
29SCREW
30W10669259 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32W10853597 Whirlpool Refrigerator Water Tube
32AW10853599 Whirlpool Refrigerator Water Tube
33W10768379 Whirlpool Refrigerator Cover
34W10705239 Whirlpool Refrigerator Grommet
35CABINET (NOT A SERVICEABLE PART)
36549193 Whirlpool Refrigerator Power Clamp
37WPL W10838745
38W11223833 Whirlpool Refrigerator Hinge Bushing
39W11111702 Whirlpool Electronic Control Board
40WPL W10868954
41WPL W10904285
42WP33001882 Whirlpool Screw
