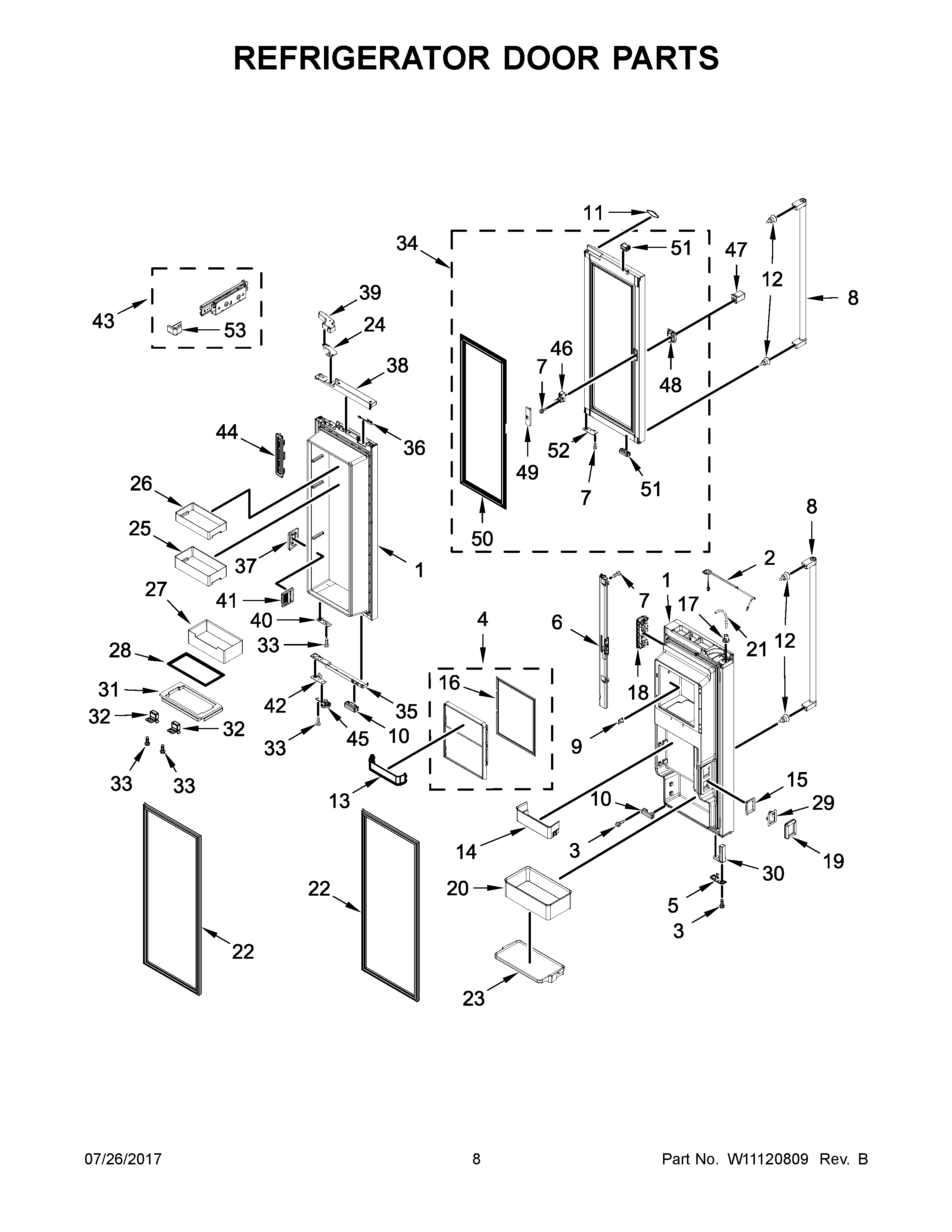

KRFC804GPS00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	DOOR, REFRIGERATOR RIGHT HAND (STAINLESS)
1	DOOR, REFRIGERATOR LEFT HAND (STAINLESS)
2	W11366500 Whirlpool Refrigerator Water Tube
4	W11594927 Whirlpool Refrigerator Ice Door
5	W11243377 Whirlpool Refrigerator Door Stop
6	W11649966 Whirlpool Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11483532 Whirlpool Refrigerator Handle
9	W11123943 Whirlpool Refrigerator Switch
10	W10798308 Whirlpool Refrigerator Door Bumper
11	W10839793 Whirlpool Refrigerator Nameplate
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W10887799 Whirlpool Trivet
14	W10887800 Whirlpool Cantilever Bin
15	W10834282 Whirlpool Refrigerator Retainer
16	W11625086 Whirlpool Refrigerator Gasket
17	W10839046 Whirlpool Refrigerator Clip
18	ASSEMBLY, USER INTERFACE
19	W11227369 Whirlpool Refrigerator Gasket
20	W10887801 Whirlpool Refrigerator Cantilever Bin
21	W10883965 Whirlpool Refrigerator Water Tube
22A	GASKET, DOOR (RIGHT HAND) (GREY)
22	W10917313 Whirlpool Refrigerator Door Gasket
23	TRIM
24	HINGE, TOP (GREY)
25	BIN, DOOR IN DOOR LARGE
26	BIN, DOOR IN DOOR SMALL
27	BIN, PULLOUT
28	INLAY, BIN
29	W10799328 Whirlpool Refrigerator Air Duct
30	W11179355 Whirlpool Refrigerator Closer
31	SLIDE, BIN TRIM
32	CLIP, PULLOUT BIN SNAP
33	WP3400065 Whirlpool Refrigerator Screw
34	ASSEMBLY, OUTER DOOR (STAINLESS)
35	CAP, INNER DOOR BOTTOM (GREY)
36	SWITCH, REED
37	ASSEMB
38	WPL W10870592
39	WPL W10889824
40	WPL W10864838
41	WPL W10895522
42	WPL W10897037
43	WPL W10895977
43A	WPL W10895976
44	WPL W11042192
45	WPL W10905299
46	W11118122 Whirlpool Refrigerator Latch
47	WPL W11104445
48	WPL W10874461
49	WPL W11082635
50	WPL W10871858
51	WPL W10902310
52	WPL W10863826
53A	WPL W10896039
53	WPL W10896038
