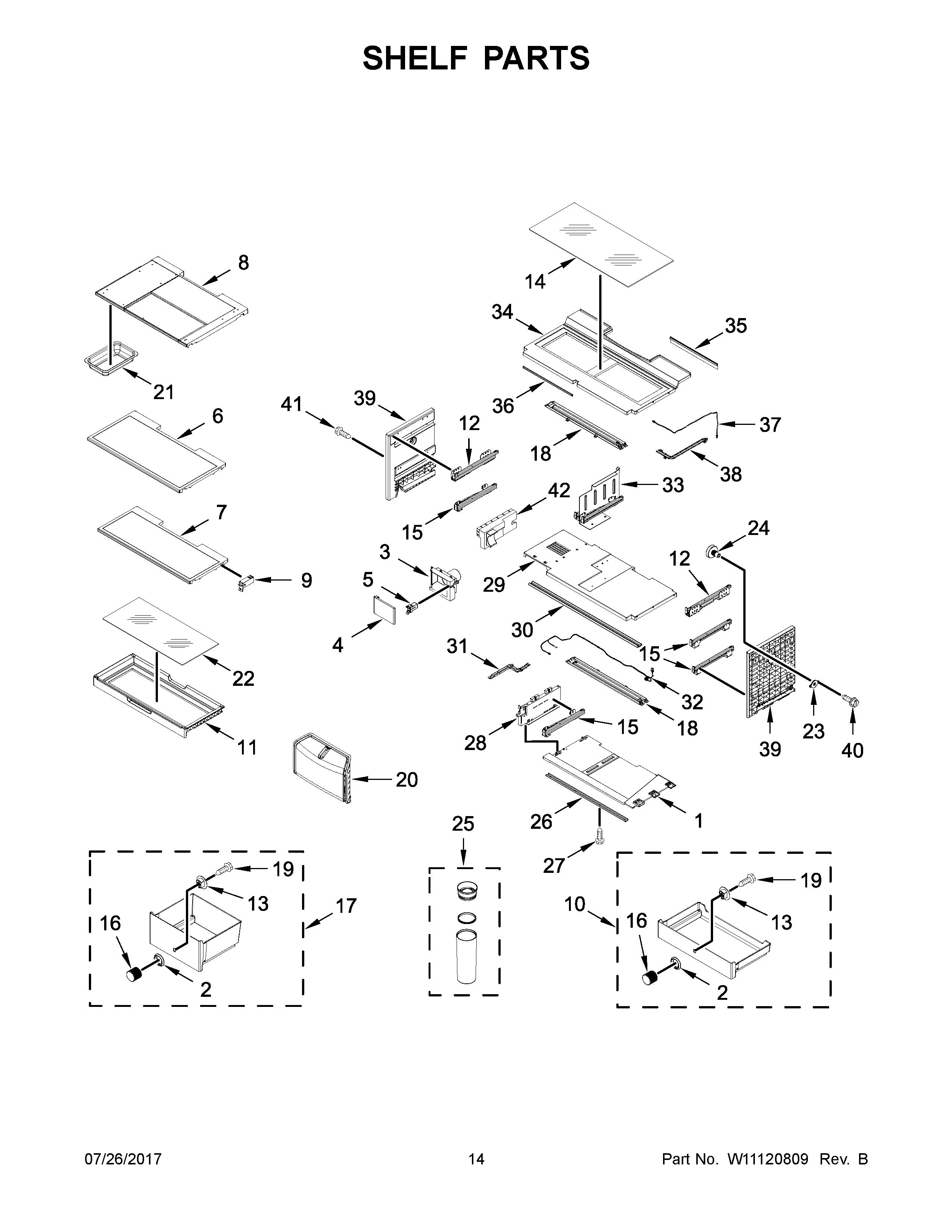

KRFC804GPS00 08 – SHELF PARTS

Products

Position	Product
1	W10794563 Whirlpool Base Assembly
2	W10696184 Whirlpool Refrigerator Ring
3	W11234411 Whirlpool Refrigerator Housing
4	W11226827 Whirlpool Refrigerator Filter Cover
5	WP2223877 Whirlpool Door Hook
6	W10887818 Whirlpool Refrigerator Glass Shelf
7	W11284453 Whirlpool Glass Shelf Assembly
8	ASSEMBLY, TUCK SHELF
9A	W11666273 Whirlpool Refrigerator Shelf Stud
9	W11226828 Whirlpool Refrigerator Shelf Stud
10	W11115323 Whirlpool Refrigerator Utility Pan
11	W11563405 Whirlpool Refrigerator Frame
12	W10843722 Whirlpool Refrigerator Glide
12A	W10814862 Whirlpool Refrigerator Glide
13	W10663641 Whirlpool Refrigerator Spacer
14	W10887837 Whirlpool Refrigerator Glass Shelf
15	W10866163 Whirlpool Refrigerator Glide
15A	W10866166 Whirlpool Refrigerator Glide
16	HANDLE
17	W11115324 Whirlpool Refrigerator Crisper Pan
18	W11401419 Whirlpool Refrigerator Module
19	SCREW
20	W10826105 Whirlpool Refrigerator Pro Service
21	W11592414 Whirlpool Utility Pan
22	W10887839 Whirlpool Refrigerator Glass Shelf
23	FLANGE, SIDE SUPPORT
24	W10840920 Whirlpool Refrigerator Knob
25	W10882409 Whirlpool Refrigerator Herb Tender
26	BAR, PANTRY SUPPORT
27	W10847999 Whirlpool Refrigerator Screw
28	W10794565 Whirlpool Refrigerator Support
29	COVER, PANTRY
30	W10794250 Whirlpool Support
31	COVER, WIRING HARNESS
32	W11744510 Whirlpool Wire Harness
33	W10794550 Whirlpool Refrigerator Support
34	W11084821 Whirlpool Refrigerator Frame
35	W10794336 Whirlpool Refrigerator Gasket
36	W10794242 Whirlpool Gasket Assembly
37	W10835866 Whirlpool Wire Harness
38	W10854845 Whirlpool Appliance Cover
39	W10794553 Whirlpool Refrigerator Support
39A	W10794555 Whirlpool Refrigerator Support
40	W10834285 Whirlpool Refrigerator Screw
42	W11084829 Whirlpool Refrigerator Insulation
