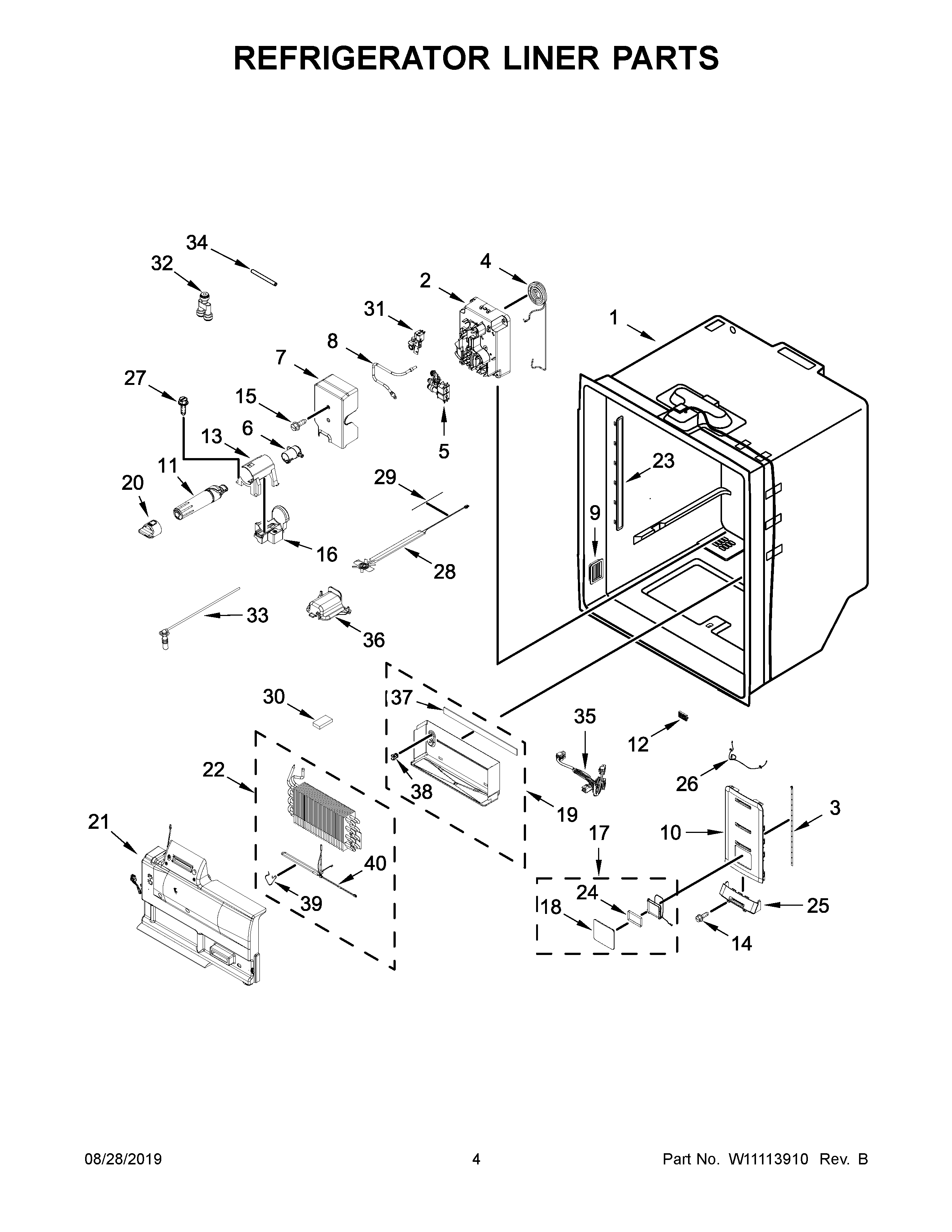

KRFC804GSS00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	W10871595 Whirlpool Refrigerator Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
2	W10708473 Whirlpool Refrigerator Housing
3	W10887788 Whirlpool Refrigerator Module
4	RESERVOIR, WATER (ALSO ORDER WIRE TIE PART W10838005 QTY 2)
5	W11535162 Whirlpool Refrigerator Valve
6	HOUSING, WATER FILTER
7	W10900011 Whirlpool Refrigerator Cover
8	TUBE, WATER FILTER
9	W10815965 Whirlpool Refrigerator Cover
10	W11259417 Whirlpool Refrigerator Air Tower
11	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
12	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13	W11189600 Whirlpool Refrigerator Bracket
14	W10119266 Whirlpool Screw
15	WP67006908 Whirlpool Refrigerator Screw
16	INSULATION, UNDER FILTER
17	W10887778 Whirlpool Refrigerator Electronic Control Board
18	W11252060 Whirlpool Refrigerator Cover
19	W11090564 Whirlpool Refrigerator Shield
20	CAP-FILTER
21	ASSEMBLY, EVAPORATOR COVER (INCLUDES FAN MOTOR, WIRE ASSEMBLY AND THERMISTOR)
22	W11291123 Whirlpool Refrigerator Evaporator
23	W11115320 Whirlpool Refrigerator Module
24	W10673897 Whirlpool Refrigerator Insulation
25	W10815960 Whirlpool Refrigerator Air Tower
26	W10848895 Whirlpool Refrigerator Wire Harness
27	WP489474 Whirlpool Refrigerator Screw
28	ASSEMBLY, FILTER HEATER
29	W10910632 Whirlpool Refrigerator Sleeve
30	W10818463 Whirlpool Refrigerator Gasket
31	W10873093 Whirlpool Refrigerator Valve
32	W11209438 Whirlpool Refrigerator Connector
33	TUBE, ICEMAKER FILL
34	W10764297 Whirlpool Refrigerator Water Tube
35	W11396537 Whirlpool Refrigerator Wire Harness
36	COVER, FILL TUBE
37	W11159756 Whirlpool Refrigerator Gasket
38	CLIP, EVAP (2)
39	W10909562 Whirlpool Refrigerator Clip
40	W11291124 Whirlpool Refrigerator Heater
