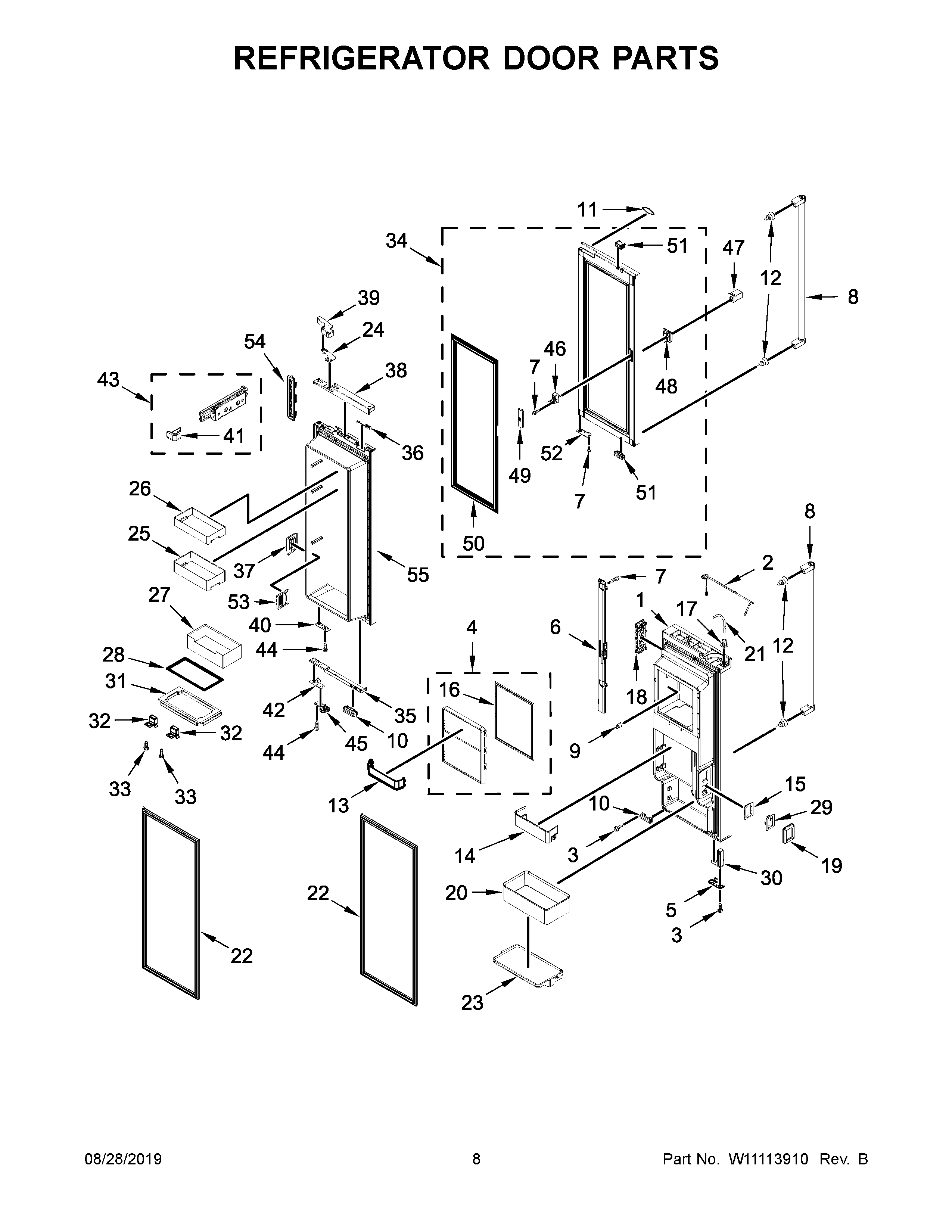

KRFC804GSS00 05 – REFRIGERATOR DOOR PARTS

KRFC804GSS00 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFC804GSS00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPL W10300089
NI	W11158592 Whirlpool Tool
1	DOOR, REFRIGERATOR (ALSO, ORDER ITEM # 18) LEFT HAND (BLACK STAINLESS)
1A	DOOR, REFRIGERATOR (ALSO, ORDER ITEM # 18) LEFT HAND (STAINLESS)
2	W11366500 Whirlpool Refrigerator Water Tube
4	W11594927 Whirlpool Refrigerator Ice Door
5	W11243377 Whirlpool Refrigerator Door Stop
6	W11084811 Whirlpool Refrigerator Mullen Rail
6A	W11649966 Whirlpool Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	W11483532 Whirlpool Refrigerator Handle
9	W11291144 Whirlpool Refrigerator Switch
10A	W10798308 Whirlpool Refrigerator Door Bumper
10	W10407187 Whirlpool Refrigerator Door Bumper
11	W10839793 Whirlpool Refrigerator Nameplate
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	W10887799 Whirlpool Trivet
14	W10887800 Whirlpool Cantilever Bin
15	W10834282 Whirlpool Refrigerator Retainer
16	W11625086 Whirlpool Refrigerator Gasket
17	W10839046 Whirlpool Refrigerator Clip
18	ASSEMBLY, USER INTERFACE
19	W11227369 Whirlpool Refrigerator Gasket
20	W10887801 Whirlpool Refrigerator Cantilever Bin
21	W10883965 Whirlpool Refrigerator Water Tube
22	W10917312 Whirlpool Refrigerator Door Gasket
22A	W10917313 Whirlpool Refrigerator Door Gasket
22C	GASKET, DOOR RIGHT HAND (GREY)
22B	GASKET, DOOR RIGHT HAND (BLACK)
23	TRIM
24	HINGE, TOP (BLACK)
24A	HINGE, TOP (GREY)
25	BIN, DOOR IN DOOR LARGE
26	BIN, DOOR IN DOOR SMALL
27	BIN, PULLOUT
28	INLAY, BIN
29	W10799328 Whirlpool Refrigerator Air Duct
30	W11179355 Whirlpool Refrigerator Closer
31	SLIDE, BIN TRIM
32	CLIP, PULLOUT BIN SNAP
33	WP3400065 Whirlpool Refrigerator Screw
34	ASSEMBLY, OUTER DOOR (BLACK STAINLESS)
34A	ASSEMBLY, OUTER DOOR (STAINLESS)
35	CAP, INNER DOOR BOTTOM (BLACK)
35A	CAP, INNER DOOR BOTTOM (GREY)
36	SWITCH, REED
37	ASSEMB
38	WPL W10870849
38A	WPL W10870592
39	WPL W10889825
39A	WPL W10889824
40	WPL W10864838
41	WPL W10896038
41A	WPL W10896039
42	WPL W10868797
42A	WPL W10897037
43	WPL W10895977
43A	WPL W10895976
44	WPL W11084504
45A	WPL W10905299
45	WPL W10870602
46	W11118122 Whirlpool Refrigerator Latch
47	WPL W11104445
48	WPL W10874461
49	WPL W11084955
49A	WPL W11082635
50	WPL W10898489
50A	WPL W10871858
51A	WPL W10902311
51	WPL W10902310
52	WPL W10851259
53	WPL W10895522
54	WPL W11042192
55	WPL W11044903
55A	WPL W11044901
