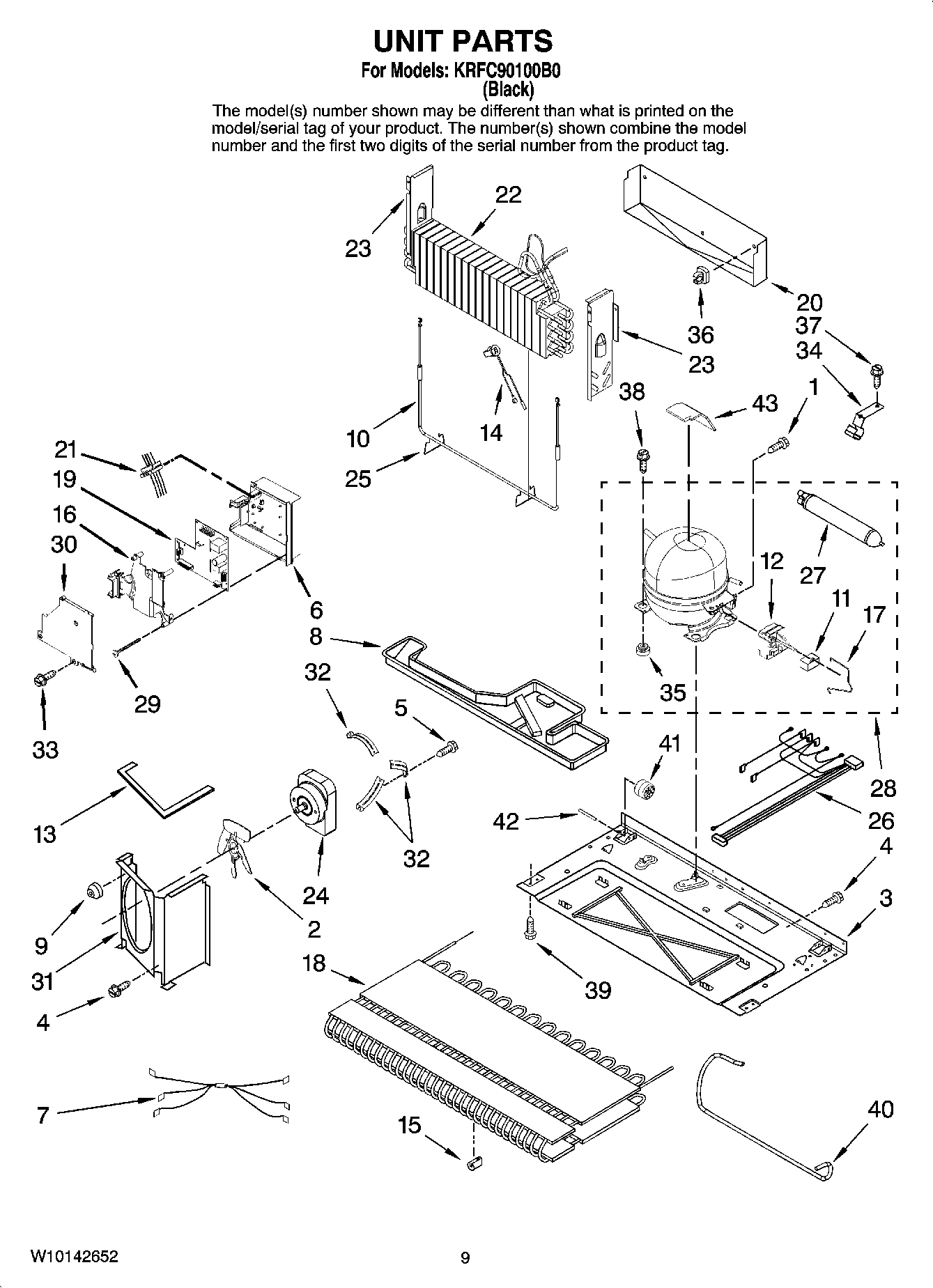

KRFC90100B0 05 – UNIT PARTS

KRFC90100B0 05 – UNIT PARTS

Written by

in

KRFC90100B0 05 – UNIT PARTS

Products

PositionProduct
112992301 Whirlpool Refrigerator Screw
2WP12587601 Whirlpool Refrigerator Condenser Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5SCREW
6Control Box, High Voltage
7Harness, Evap Heater
8Pan, Drain
9WP67006132 Whirlpool Refrigerator Condenser
11WP2201147 Whirlpool Refrigerator Capacitor
12Relay, Combo (Production)
13WP854334 Whirlpool Air Conditioner Sealing Strip
14THERMOSTAT
1567005680 Whirlpool Refrigerator Condenser Grommet
16Spacer, Box- High Voltage
17Clip, Capacitor
18WP67006131 Whirlpool Refrigerator Condenser
19Control Board, High Voltage
20W11547653 Whirlpool Refrigerator Drip Tray
21Harness, HV
2212002041 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Heater
27WPB2150504 Whirlpool Refrigerator Dryer
28WP8201733 Whirlpool Refrigerator Compressor
29Screw (2)
3067005421 Whirlpool Hoist Cover
31Shroud
32Bracket, Fan Motor
33W10709801 Whirlpool Refrigerator Screw
3410547003 Whirlpool Refrigerator Dryer Clip
35WPL 4343845
36CLIP, EVAP (2)
37WP33001882 Whirlpool Screw
3812846902 Whirlpool Refrigerator Screw
39Screw (4)
40WP12866903 Whirlpool Refrigerator Discharge Tube
41WP10450603 Whirlpool Refrigerator Roller
42Pin
43876764 Whirlpool Refrigerator Primary Valve
43Following Parts Not Illustrated and Optional Parts Not Included
43978026 Whirlpool Refrigerator Primary Valve
43978027 Whirlpool Refrigerator Primary Valve
43Pad, Acoustic
43WP978025 Whirlpool Refrigerator Valve
43978030 Whirlpool Refrigerator Valve
43VALVE, ACCESS (1/2“)
43VALVE, ACCESS (5/8“)
43REFRIGERANT CHARGE 5.0 Ozs. (R-134A)
