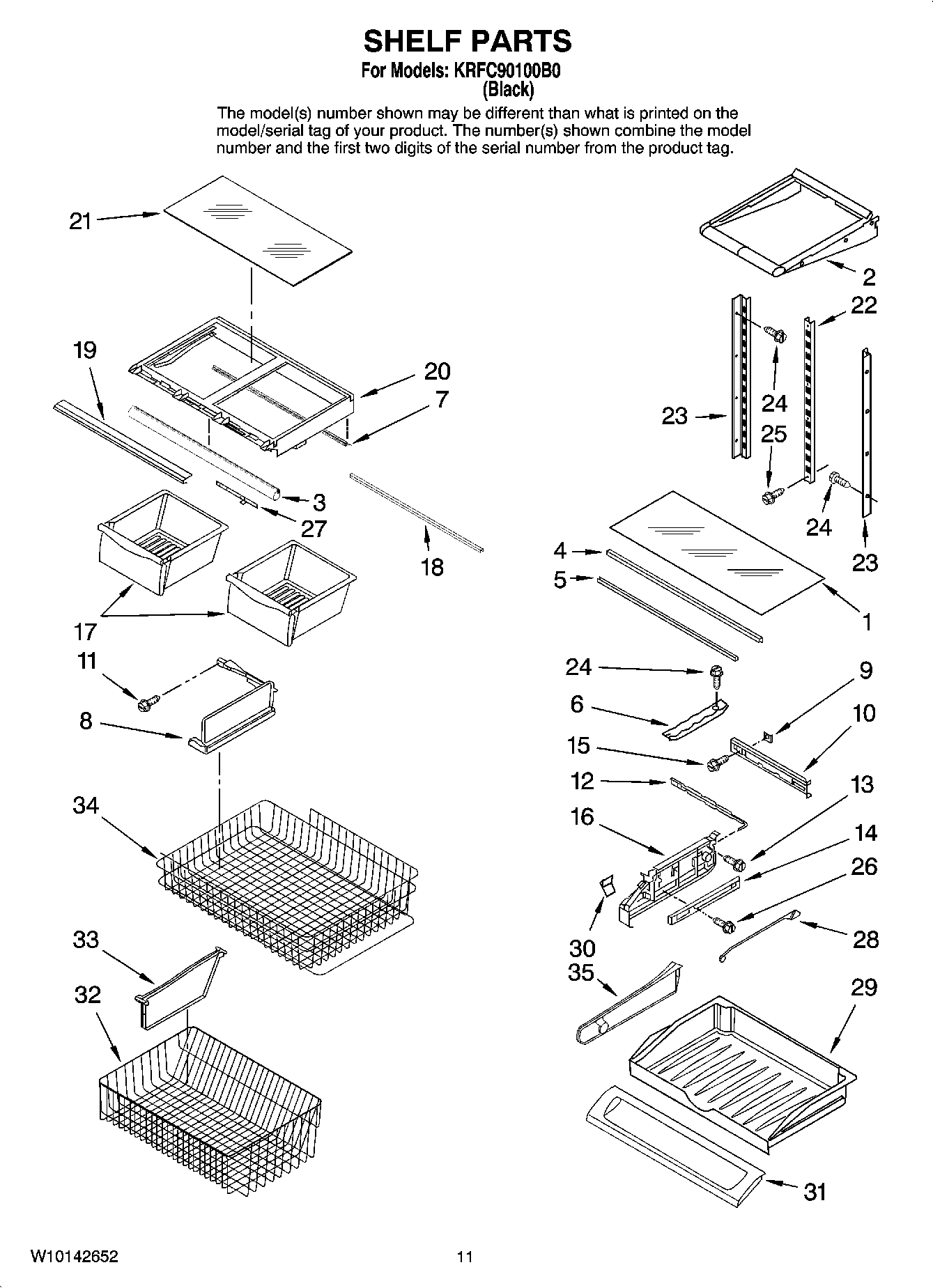

KRFC90100B0 06 – SHELF PARTS

Products

Position	Product
1	WP67002332 Whirlpool Refrigerator Glass Pan
2	Shelf, Glide (4)
3	WP67003417 Whirlpool Refrigerator Front Seal
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	WP67002513 Whirlpool Refrigerator Rear Crisper Seal
8	Divider, Upper Basket
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	Screw
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP98165 Whirlpool Screw
14	WPW10235370 Whirlpool Refrigerator Glide
16	Track, Pantry (Right)
16	WP12656018 Whirlpool Drawer Support
17	WPW10143396 Whirlpool Refrigerator Crisper Pan
18	WP12227304WD Whirlpool Refrigerator Drawer Support
19	Trim, Crisper
20	Frame, Crisper
21	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	W10709795 Whirlpool Refrigerator Screw
26	WP67006415 Whirlpool Refrigerator Screw
27	SLIDE
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	W11490183 Whirlpool Refrigerator Utility Pan
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	W10503185 Whirlpool Dishwasher Cutlery Basket
33	Divider, Lower Basket
34	Basket, Freezer (Upper)
35	WP67002321 Whirlpool Refrigerator Divider Panel
