KRFC90100B0 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KRFC90100B0 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KRFC90100B0 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI154766A
WP542638 Whirlpool Refrigerator Grease
Torx Key
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Ice Container Assembly
WPL ARI154765A
WPL ARI154761A
WPL ARI154762A
WPL ARI154763A
WPL ARI154764A
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag

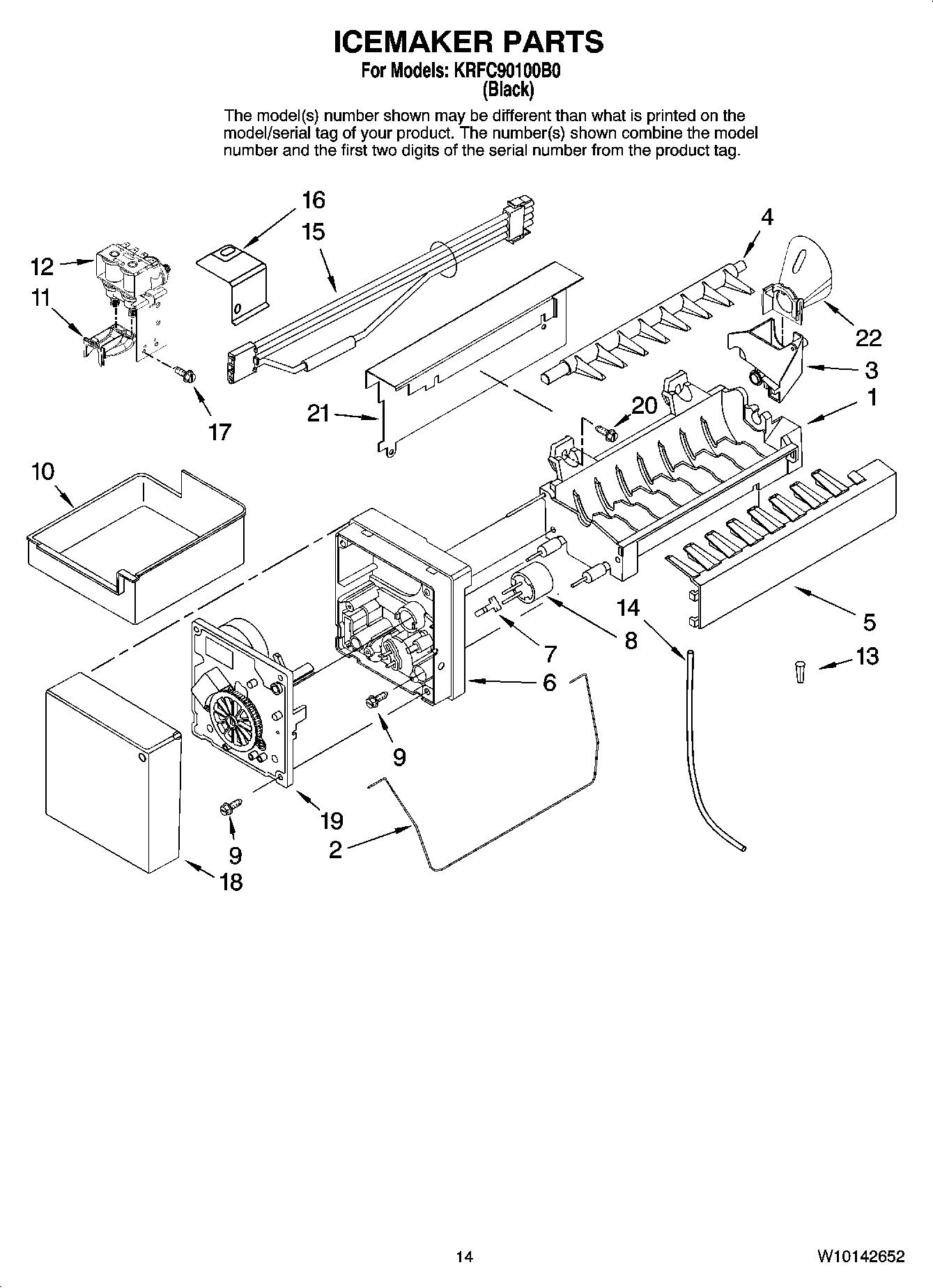

1Mold & Heater Assembly (Not Available — Order 8170937)
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available — Order 8170937)
9WP681249 Whirlpool Screw Assembly
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006663 Whirlpool Inlet Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14WPB5705307 Whirlpool Refrigerator Tube
15Harness, Ice Maker
16WP2256087 Whirlpool Refrigerator Bracket
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available — Order 8170937)
2067006425 Whirlpool Refrigerator Screw
21Shield, Icemaker
2212918001 Whirlpool Refrigerator Funnel
100Retainer, Tube
100Clip, Cord
100Screw, Bracket
100681390 Whirlpool Refrigerator Screw
100WPW10190972 Whirlpool Refrigerator Icemaker
100W11033771 Whirlpool Refrigerator Coupling
100Following Parts Not Illustrated
