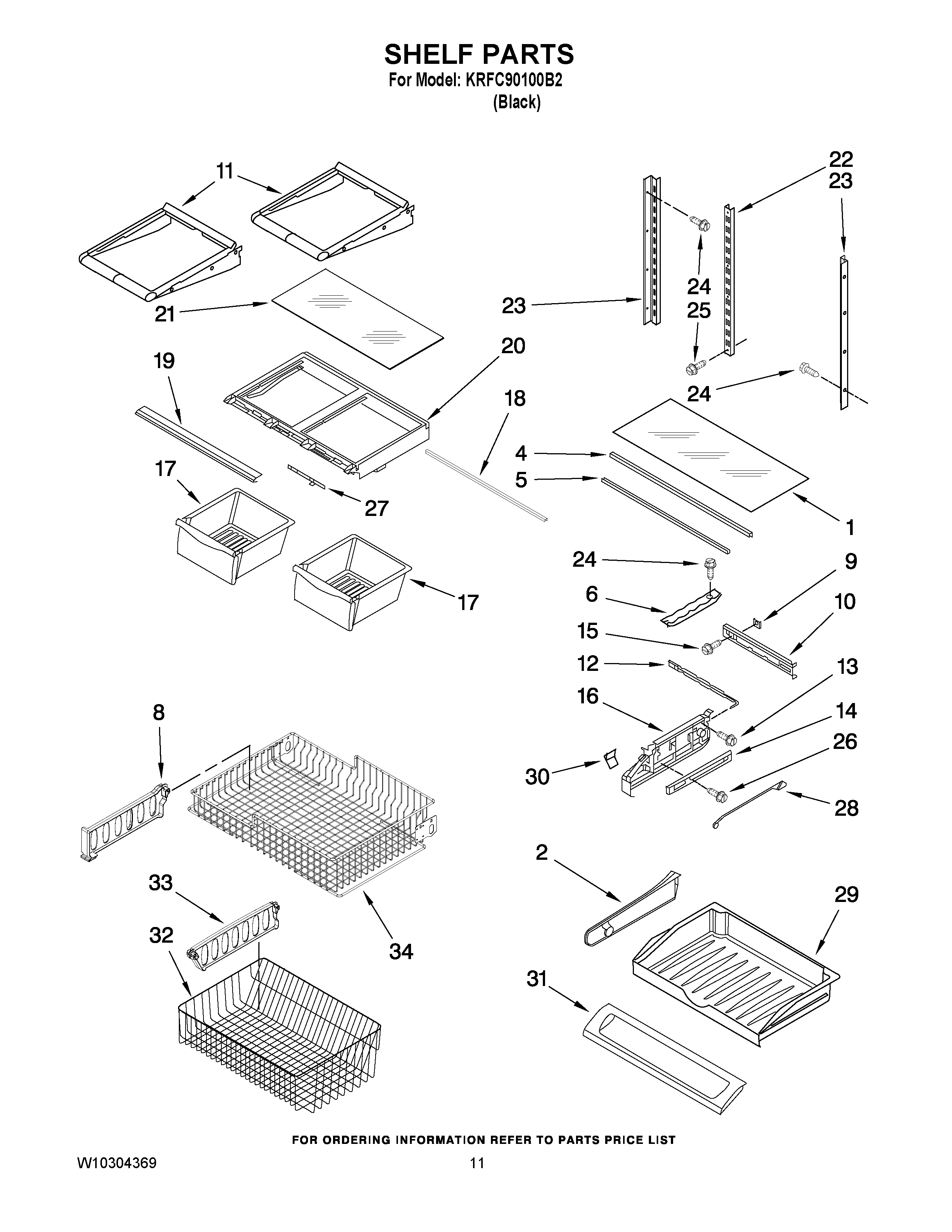

KRFC90100B2 06 – SHELF PARTS

Products

Position	Product
1	W11125512 Whirlpool Refrigerator Glass Shelf
2	WP67002321 Whirlpool Refrigerator Divider Panel
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
8	DIVIDER, UPPER BASKET
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	WP12463911 Whirlpool Refrigerator Glass Shelf
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP67006415 Whirlpool Refrigerator Screw
14	WPW10235370 Whirlpool Refrigerator Glide
16	WP12656105 Whirlpool Drawer Support
16	WP12656018 Whirlpool Drawer Support
17	WP67002659 Whirlpool Crisper Pan
18	WP12227304WD Whirlpool Refrigerator Drawer Support
19	TRIM, CRISPER
20	WP67006185 Whirlpool Refrigerator Crisper Frame
21	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
22	W10273463 Whirlpool Refrigerator Ladder
23	W10251971 Whirlpool Ladder Assembly
24	67006425 Whirlpool Refrigerator Screw
25	W10709795 Whirlpool Refrigerator Screw
26	WP98165 Whirlpool Screw
27	SLIDE
28	67003794 Whirlpool Refrigerator Temperature Control Bar
29	W11490183 Whirlpool Refrigerator Utility Pan
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	BASKET, FREEZER (LOWER)
33	DIVIDER, LOWER BASKET
34	W10348245 Whirlpool Refrigerator Freezer Basket
