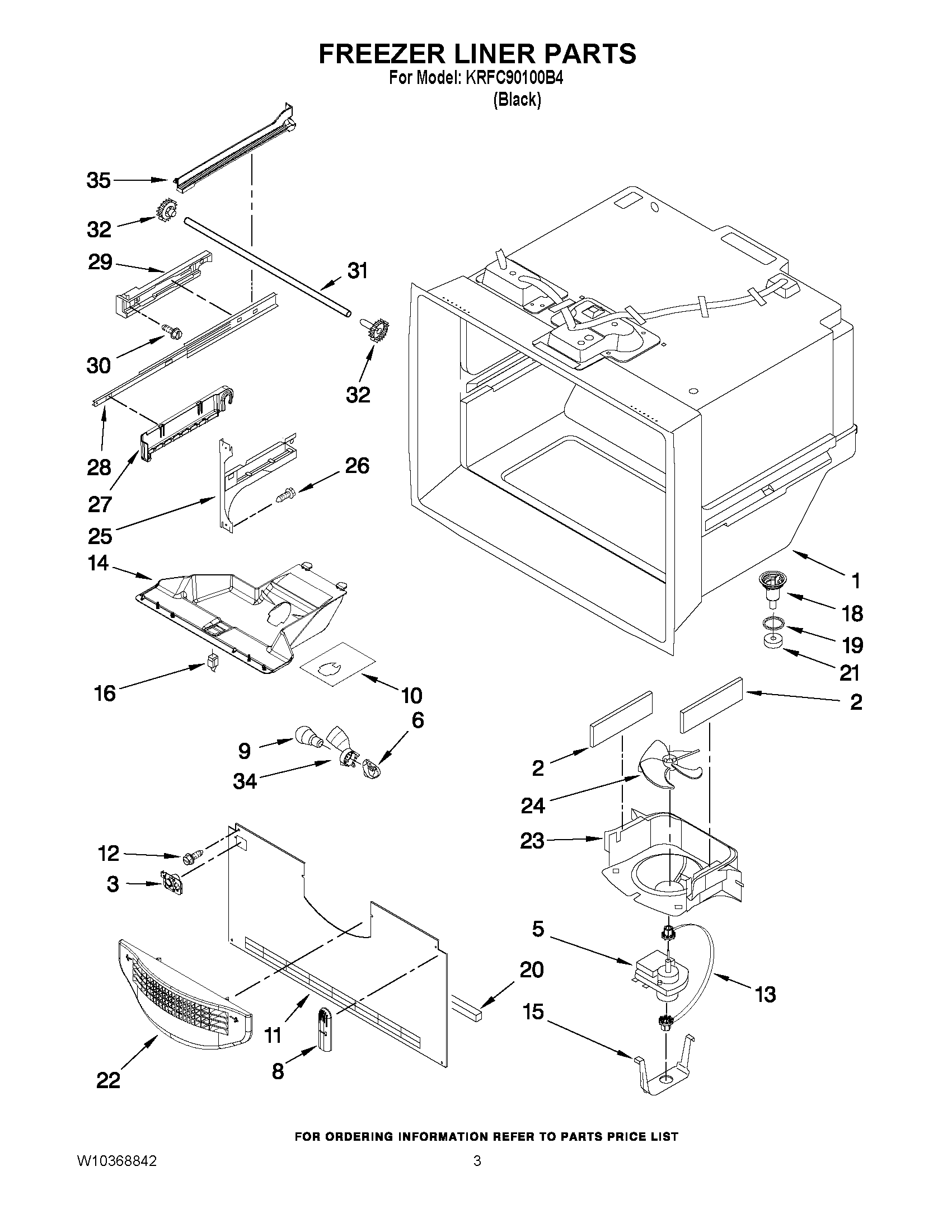

KRFC90100B4 02 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
3	W11448709 Whirlpool Refrigerator Bracket
5	WP67005023 Whirlpool Refrigerator Evaporator Motor
6	W11447232 Whirlpool Refrigerator Socket
8	WP67003924 Whirlpool Refrigerator Cover
9	WP67002552 Whirlpool Refrigerator Light Bulb
10	W11469652 Whirlpool Refrigerator Shield
11	COVER, EVAPORATOR
12	67006425 Whirlpool Refrigerator Screw
13	W10121318 Whirlpool Refrigerator Grommet
14	WPW10277025 Whirlpool Refrigerator Housing
15	CLIP, EVAP (2)
16	W11396033 Whirlpool Refrigerator Rocker Switch
18	W10815413 Whirlpool Refrigerator Funnel
19	WPM0500703 Whirlpool Refrigerator O-Ring Seal
20	W10856123 Whirlpool Refrigerator Gasket
21	WPB8381501 Whirlpool Refrigerator Door Gasket
22	WPW10175909 Whirlpool Grille Assembly
23	WPW10167023 Whirlpool Refrigerator Shroud
24	WP2169142 Whirlpool Fan Blade
25	WPW10330991 Whirlpool Refrigerator Bracket
25	WPW10330994 Whirlpool Refrigerator Bracket
26	WP98165 Whirlpool Screw
27	WPW10281116 Whirlpool Bracket
27	WPW10281115 Whirlpool Refrigerator Bracket
28	W11658403 Whirlpool Slide
29	WPW10284693 Whirlpool Mounting Bracket
29	WPW10284692 Whirlpool Refrigerator Bracket
30	WP489474 Whirlpool Refrigerator Screw
31	W11028221 Whirlpool Refrigerator Shaft
32	12002497 Whirlpool Refrigerator Drawer Gear Kit
34	SHROUD-LGHT SOCKET
35	W10516605 Whirlpool Refrigerator Rail
35	W10516604 Whirlpool Refrigerator Rail
