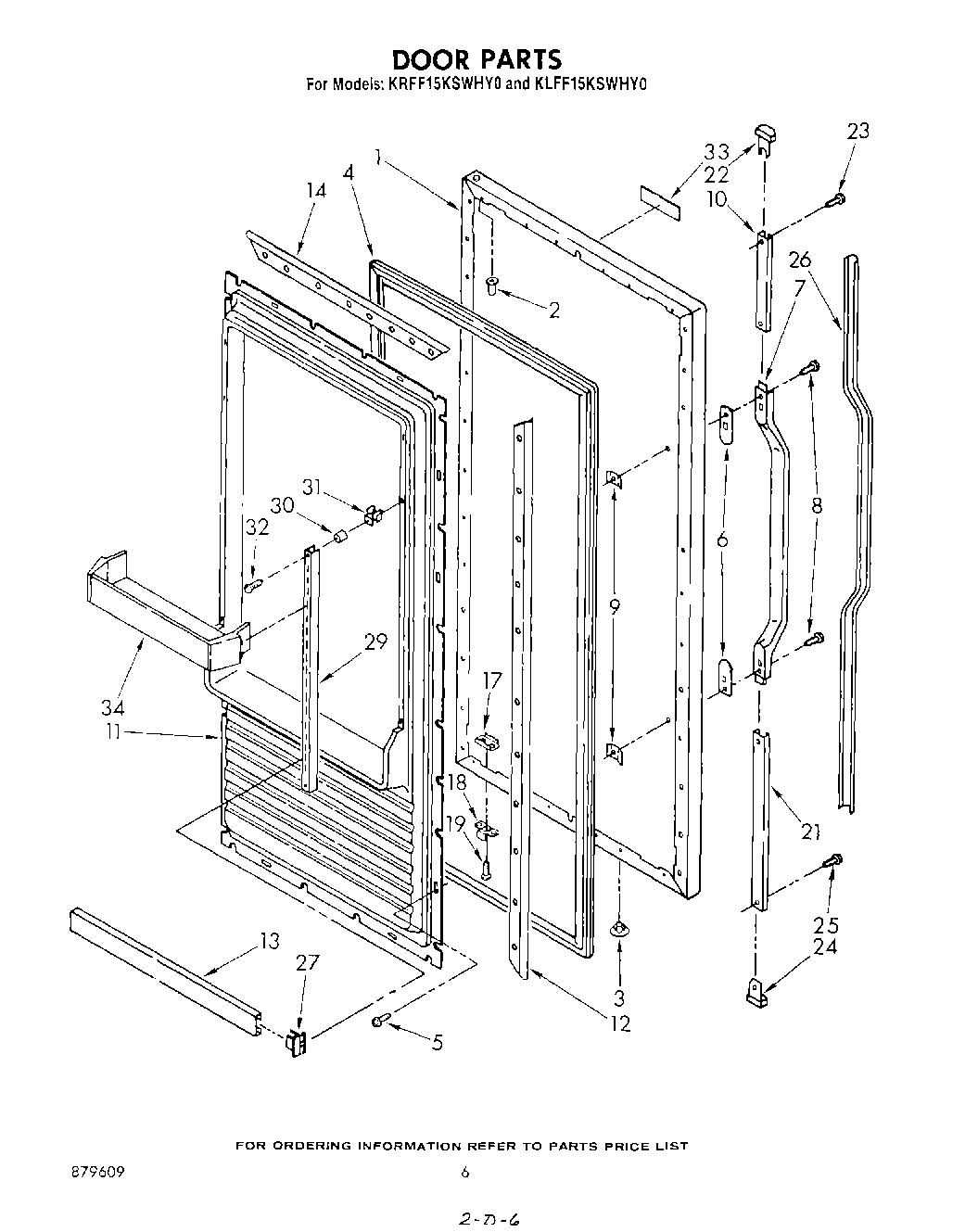

KRFF15KSWHY0 04 – DOOR

KRFF15KSWHY0 04 – DOOR

Written by

in

KRFF15KSWHY0 04 – DOOR

Products

PositionProduct
1Freezer Door Panel R.H. (White)
1Freezer Door Panel R.H. (Almond Freezer Door Panel L.H.)
1Freezer Door Panel R.H. (White)
1Freezer Door Panel R.H. (Almond)
2Cap, Hinge Sleeve (2)
3Hole Plug (2) (Almond)
3Hole Plug (2)
42188439A Whirlpool Refrigerator Door Gasket
5WP489069 Whirlpool Compactor Screw
5SCREW
6Spacer, Handle
7Handle
9Screw Anchor (2)
10Retainer, Insert
11Panel, Interior Door
12Retainer Side, Gasket
13Trim, Door Shelf
14Retainer, Top & Bottom (2)
17W10833053 Whirlpool Refrigerator Plate
18Bracket, Door Stop
19Screw (Repair)
19WP488921 Whirlpool Refrigerator Screw
21Retainer, Insert (Bottom)
22End Cap (2)
23Screw
24End Cap, Handle Bottom
25Screw, 6-32 x 1/2
26Insert, Handle
26Insert, Handle (Black)
27Retainer, Door Trim (2)
29Ladder, Door (2)
30Spacer, Shelf
31Expansion Clip
32Screw, 8-15 x 1 1/4 (8)
33Insert, Nameplate
34Door Shelf,
