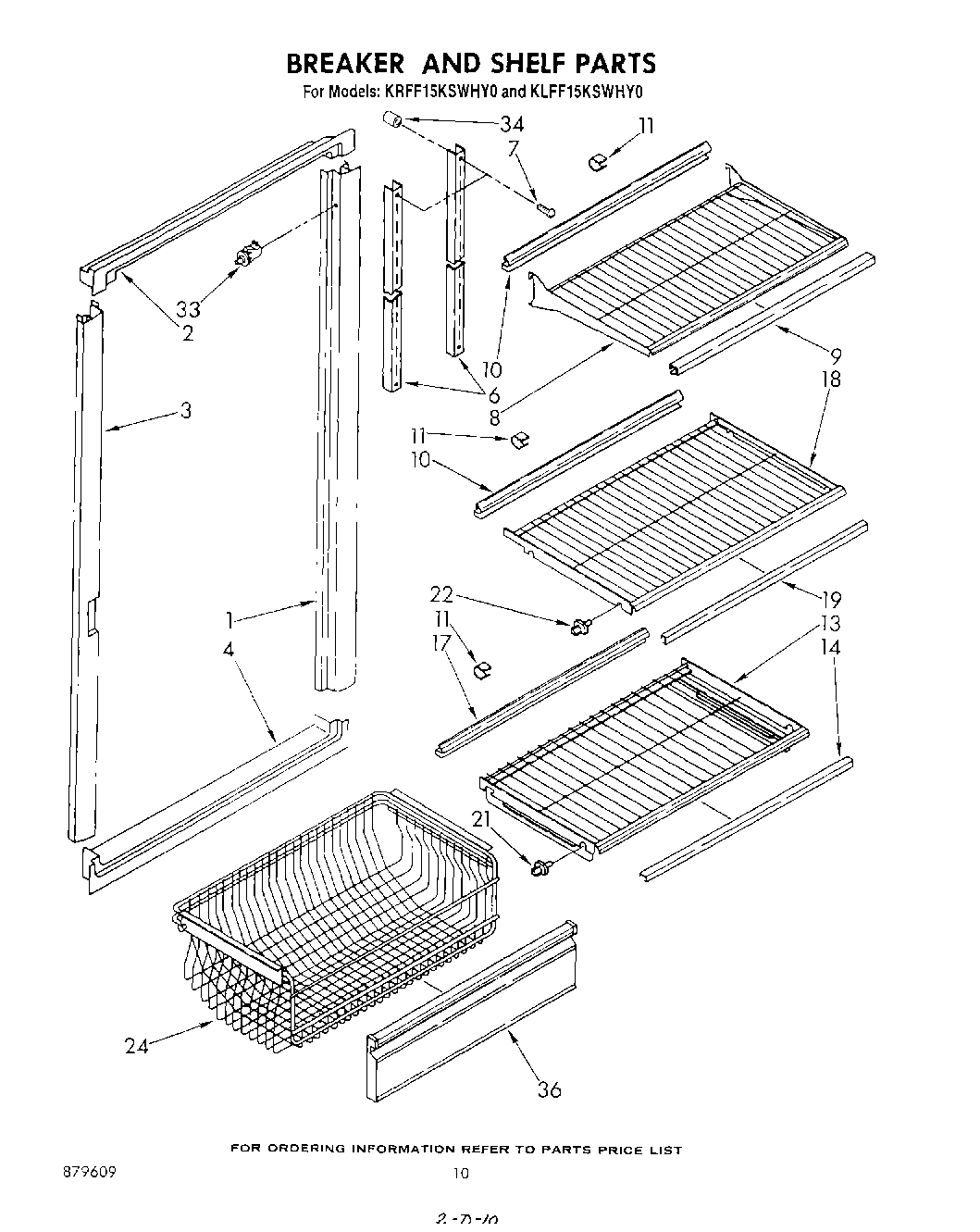

KRFF15KSWHY0 06 – BREAKER AND SHELF

Products

PositionProduct
NIWP488729 Whirlpool Refrigerator Door Screw
NIScrew (Repair)
1Breaker, R.S.
1Breaker, R.S.
2Breaker, Top
3Breaker Trim (L.S) (With Switch Hole)
3Breaker, L.S.
4Breaker, Refrigerator (Bottom)
6Shelf Ladder (2)
7Screw, 8 x 1-1/4 (3)
8Shelf, Cantilever
10Reflector
11Clip, Reflector
13Shelf, Basket
14Trim, Frame (2)
17Reflector, Shelf
18Shelf, Fixed
19Trim, Shelf Front
21Stud, Shelf (3)
22Stud, Fixed Shelf
24Freezer, Basket
33Switch, Light
34Spacer Ground
36Basket, Trim
