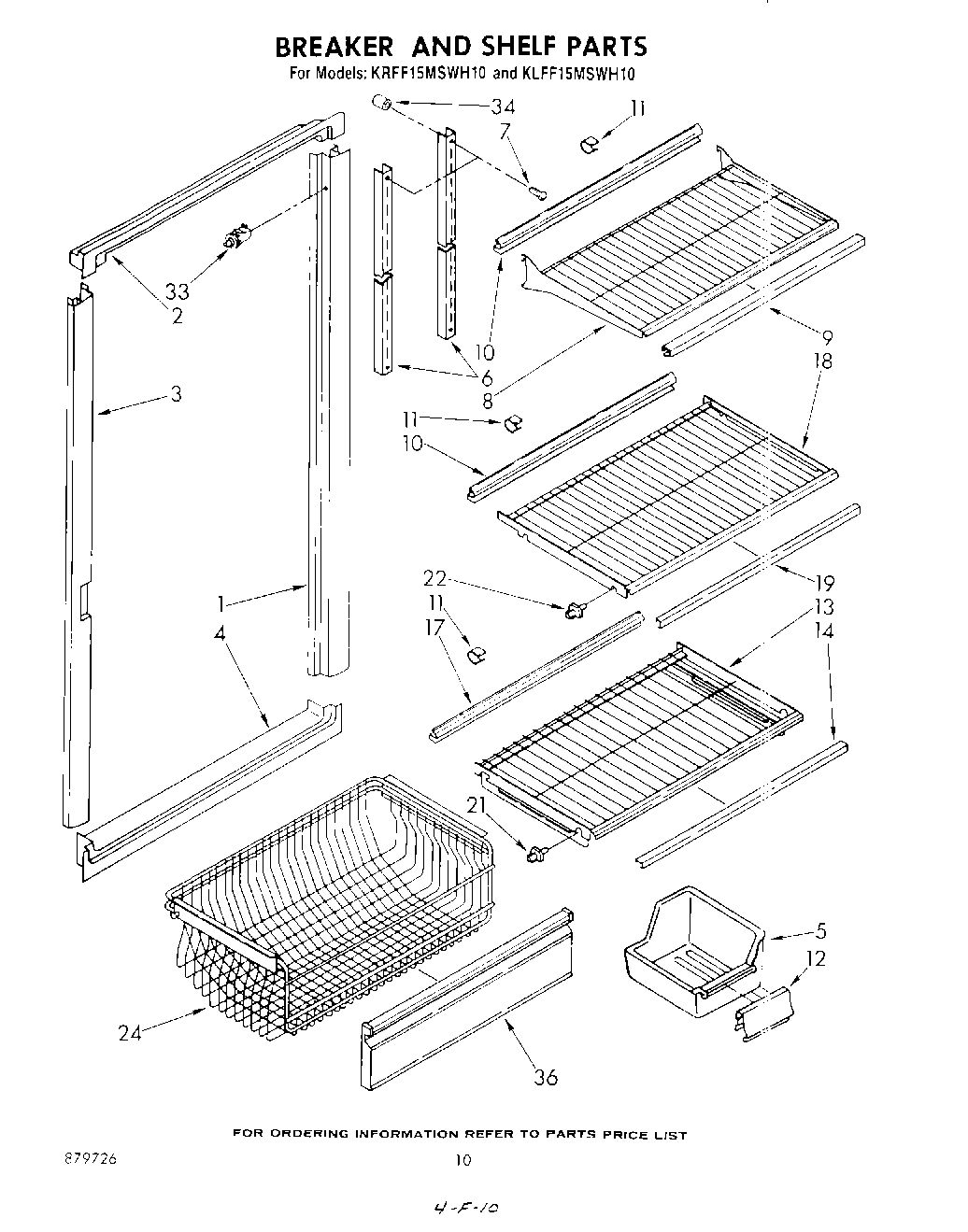

KRFF15MSWH10 06 – BREAKER AND SHELF

Products

PositionProduct
1Breaker, R.S.
1Breaker, R.S.
2Breaker, Top
3Breaker Trim (L.S) (With Switch Hole)
3Breaker, L.S.
4Breaker, Refrigerator (Bottom)
5Ice Cube Pan
6Shelf Ladder (2)
7Screw, 8 x 1-1/4 (3)
8Shelf, Cantilever
10Reflector
11Clip, Reflector
12Trim, Ice Cube Pan
13Shelf, Basket
14Trim, Frame (2)
17Reflector, Shelf
18Shelf, Fixed
19Trim, Shelf Front
21Stud, Shelf (3)
22Stud, Fixed Shelf
24Freezer, Basket
33Switch, Light
34Spacer Ground
36Basket, Trim
