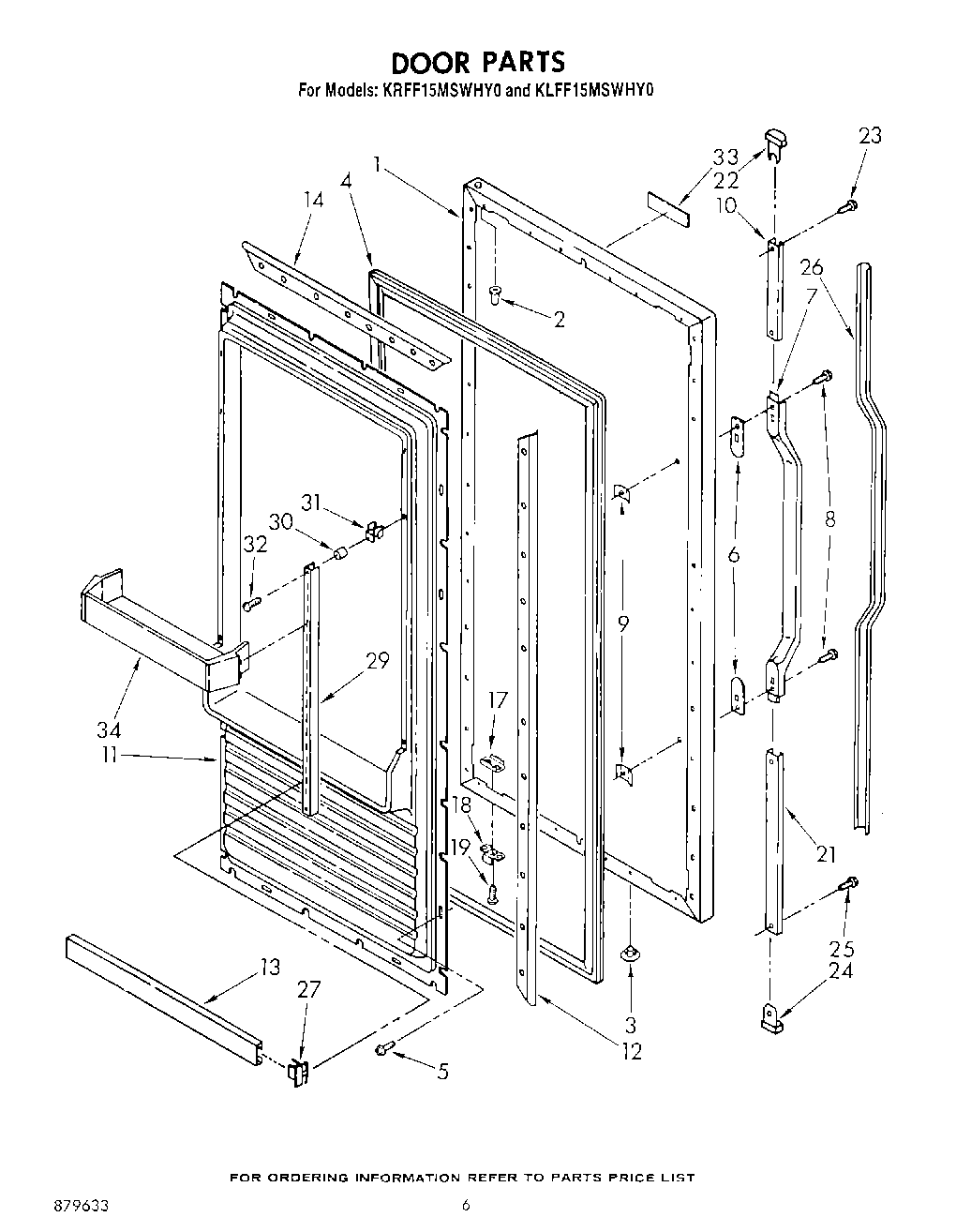

KRFF15MSWHY0 04 – DOOR

Products

Position	Product
1	Freezer Door Panel R.H. (Almond)
1	Freezer Door Panel R.H. (White)
1	Freezer Door Panel R.H. (Almond Freezer Door Panel L.H.)
1	Freezer Door Panel R.H. (White)
2	Cap, Hinge Sleeve (2)
3	Hole Plug (2) (Almond)
3	Hole Plug (2)
4	2188439A Whirlpool Refrigerator Door Gasket
5	SCREW
5	WP489069 Whirlpool Compactor Screw
6	Spacer, Handle
7	Handle
9	Screw Anchor (2)
10	Retainer, Insert
11	Panel, Interior Door
12	Retainer Side, Gasket
13	Trim, Door Shelf
14	Retainer, Top & Bottom (2)
17	W10833053 Whirlpool Refrigerator Plate
18	Bracket, Door Stop
19	Screw (Repair)
19	WP488921 Whirlpool Refrigerator Screw
21	Retainer, Insert
22	End Cap (2)
23	Screw
24	End Cap, Handle Bottom
25	Screw, 6-32 x 1/2
26	Insert, Handle (Black)
26	Insert, Handle
27	Retainer, Door Trim (2)
29	Ladder, Door (2)
30	Spacer, Shelf
31	Expansion Clip
32	Screw, 8-15 x 1 1/4 (8)
33	Insert, Nameplate
34	Door Shelf,
