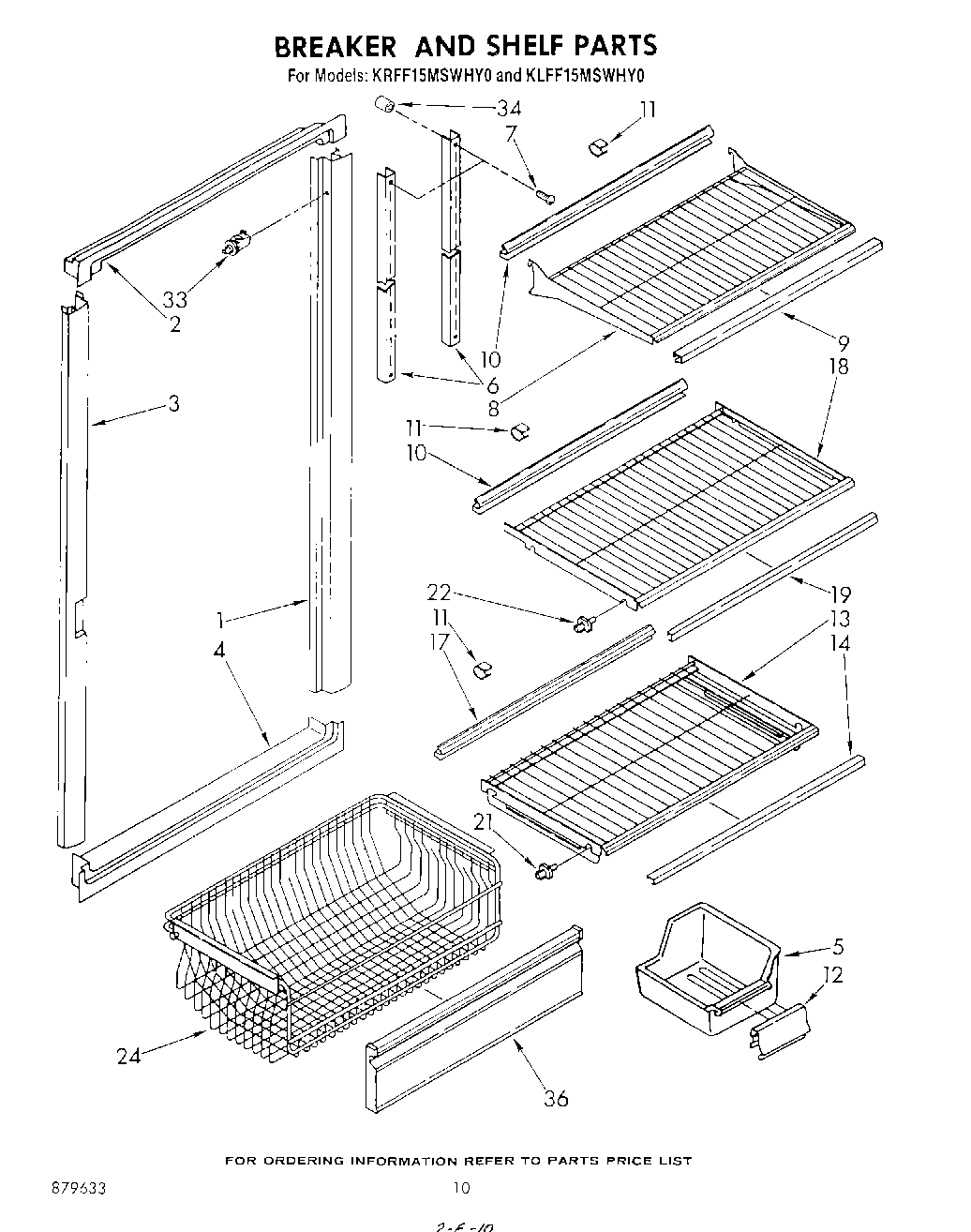

KRFF15MSWHY0 06 – BREAKER AND SHELFadmin2025-04-26T12:28:16+00:00KRFF15MSWHY0 06 – BREAKER AND SHELF
Products
| Position | Product |
|---|
| 1 | Breaker, R.S. |
| 1 | Breaker, R.S. |
| 2 | Breaker, Top |
| 3 | Breaker Trim (L.S) (With Switch Hole) |
| 3 | Breaker, L.S. |
| 4 | Breaker, Refrigerator (Bottom) |
| 5 | PAN-ICE |
| 6 | Shelf Ladder (2) |
| 7 | Screw, 8 x 1-1/4 (3) |
| 8 | Shelf, Cantilever |
| 10 | Reflector |
| 11 | Clip, Reflector |
| 12 | Trim Ice Cube Pan |
| 13 | Shelf, Basket |
| 14 | Trim, Frame (2) |
| 17 | Reflector, Shelf |
| 18 | Shelf, Fixed |
| 19 | Trim, Shelf Front |
| 21 | Stud, Shelf (3) |
| 22 | Stud, Fixed Shelf |
| 24 | Freezer, Basket |
| 33 | Switch, Light |
| 34 | Spacer Ground |
| 36 | Basket, Trim |
