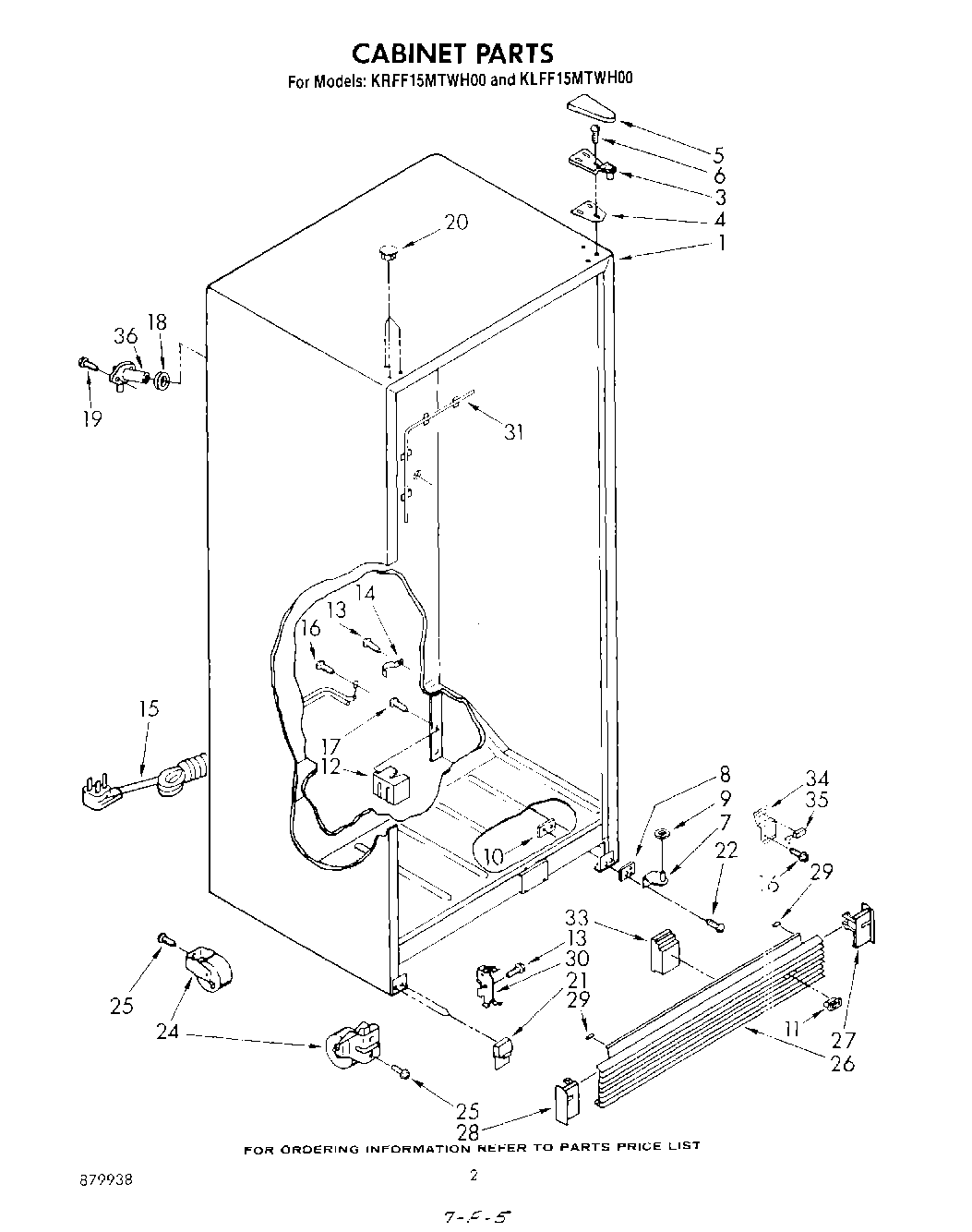

KRFF15MTWH00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
3	Hinge, Top
4	WPL 836151
5	1119787 Whirlpool Refrigerator Hinge Cover
6	WP999367 Whirlpool Refrigerator Screw
7	Hinge, Bottom (L.H.)
7	Hinge, Bottom R.H.
8	WP487802 Whirlpool Refrigerator Washer
9	WP487576 Whirlpool Washer
10	Tap Plate
11	Reflector, Pilot, Light
12	WPL 549947
13	W11624204 Whirlpool Screw
14	549193 Whirlpool Refrigerator Power Clamp
15	Cord, Service
16	Screw, 8-32 x 3/8
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1106508 Whirlpool Refrigerator Gasket
19	WP98165 Whirlpool Screw
20	Hole Plug (2) (Almond)
20	Hole Plug (2) (White)
21	Filler, Grille
22	Screw (Repair)
24	WPW10250570 Whirlpool Refrigerator Cabinet Roller
25	Screw, 1/4-28 x 1/2 (2)
26	Grille
27	Grille, End Cap (R.S)
28	Grille, End Cap (L.S.)
29	Bumper, Grille (2)
30	WPL 989068
31	Stile Heater
33	Insert, Air Baffle Grille
34	Mounting, Bracket Pilot Light
35	Light, Signal
36	WP2196157 Whirlpool Fill Tube
