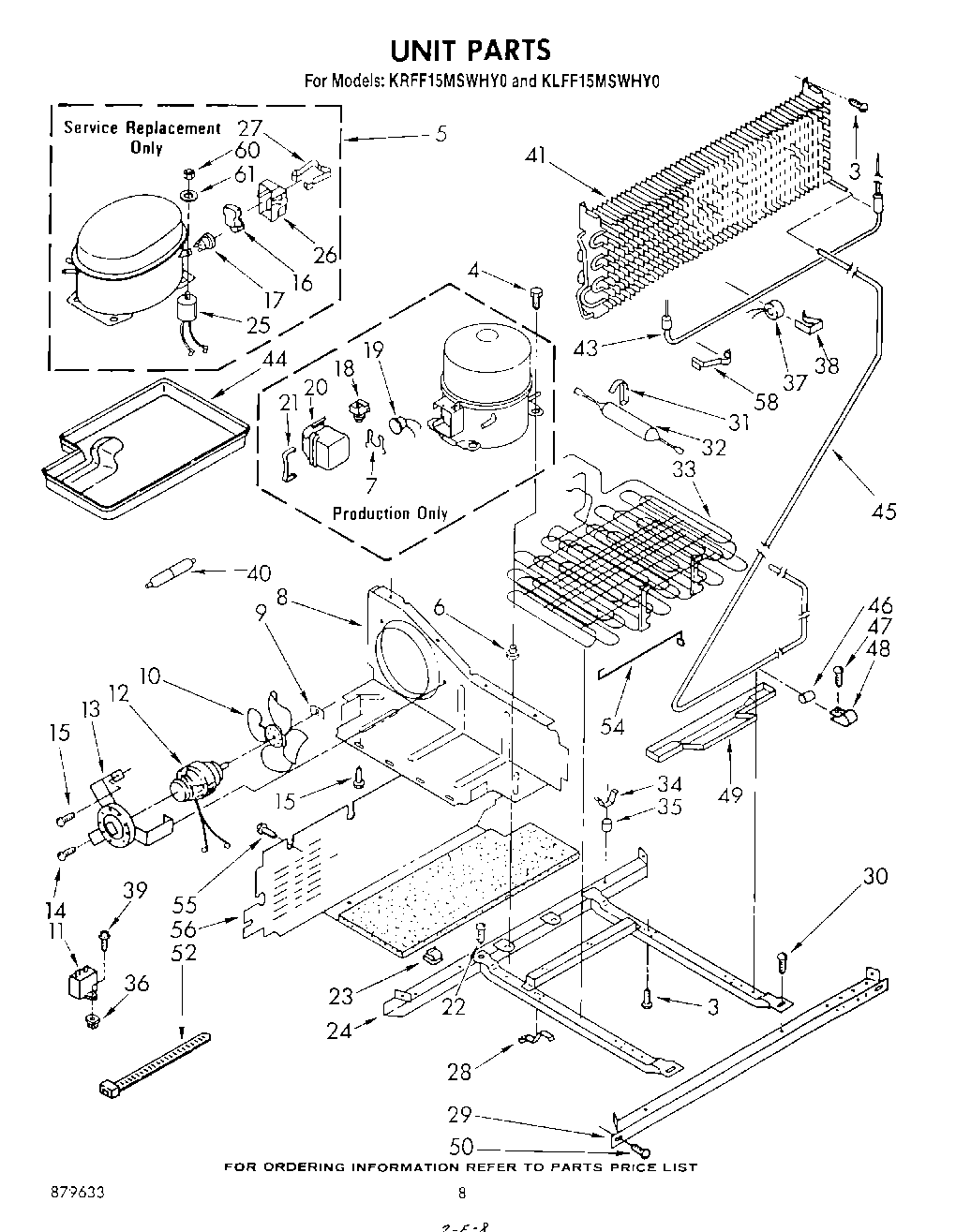

KRFF15SWH10 05 – UNIT

Products

Position	Product
3	W11624204 Whirlpool Screw
5	876765 Whirlpool Primary Mounting Kit Refrigerator
5	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
6	876811 Whirlpool Grommet
7	Spring, Overload
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
11	WPW10662129 Whirlpool Refrigerator Run Capacitor
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	681390 Whirlpool Refrigerator Screw
15	Screw, 8 x 3/8
16	Relay
17	Overload
18	Relay
19	Overload (Used W/Original Compressor)
20	Case, Relay
21	case spring
22	303776 Whirlpool Dishwasher Screw
23	Clip, Wire (2)
24	Frame
25	Capacitor
26	Cover, Terminal
27	Strap
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler
34	Clamp (4)
35	Grommet (4)
36	Screw Grommet
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
39	W11693756 Whirlpool Screw Assembly
40	Muffler
41	Evaporator
43	Heater, Defrost
44	WPL 842041
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
52	Strap
54	Guard, Fan
56	Cover
58	Clip, Heater
60	Nut
61	876764 Whirlpool Refrigerator Primary Valve
61	WP978025 Whirlpool Refrigerator Valve
61	978027 Whirlpool Refrigerator Primary Valve
61	VALVE, ACCESS (5/8“)
61	978026 Whirlpool Refrigerator Primary Valve
61	Washer
61	VALVE, ACCESS (1/2“)
61	978030 Whirlpool Refrigerator Valve
