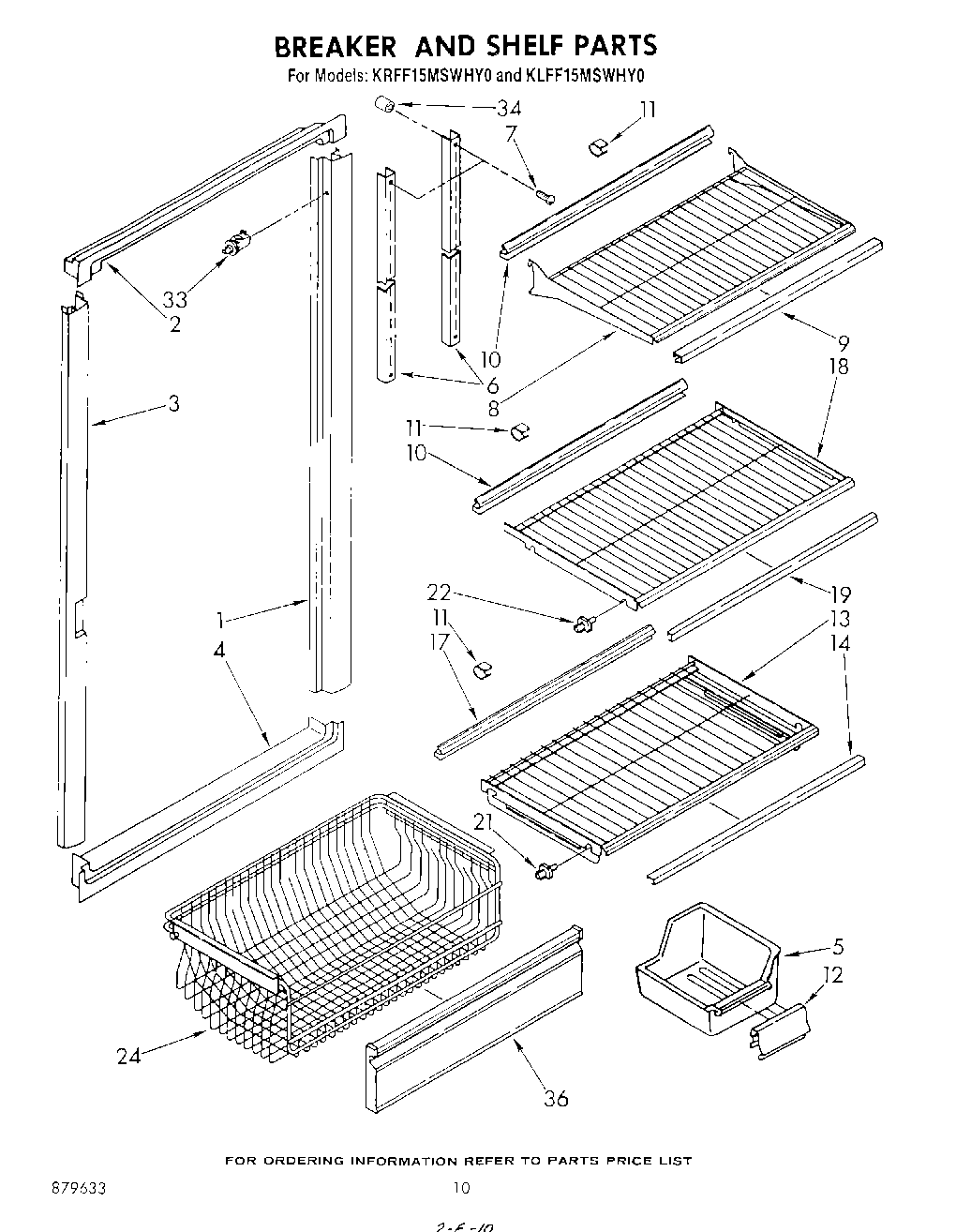

KRFF15SWH10 06 – BREAKER AND SHELF

Products

Position	Product
1	Breaker, R.S.
1	Breaker, R.S.
2	Breaker, Top
3	Breaker Trim (L.S) (With Switch Hole)
3	Breaker, L.S.
4	Breaker, Refrigerator (Bottom)
5	PAN-ICE
6	Shelf Ladder (2)
7	Screw, 8 x 1-1/4 (3)
8	Shelf, Cantilever
10	Reflector
11	Clip, Reflector
12	Trim Ice Cube Pan
13	Shelf, Basket
14	Trim, Frame (2)
17	Reflector, Shelf
18	Shelf, Fixed
19	Trim, Shelf Front
21	Stud, Shelf (3)
22	Stud, Fixed Shelf
24	Freezer, Basket
33	Switch, Light
34	Spacer Ground
36	Basket, Trim
