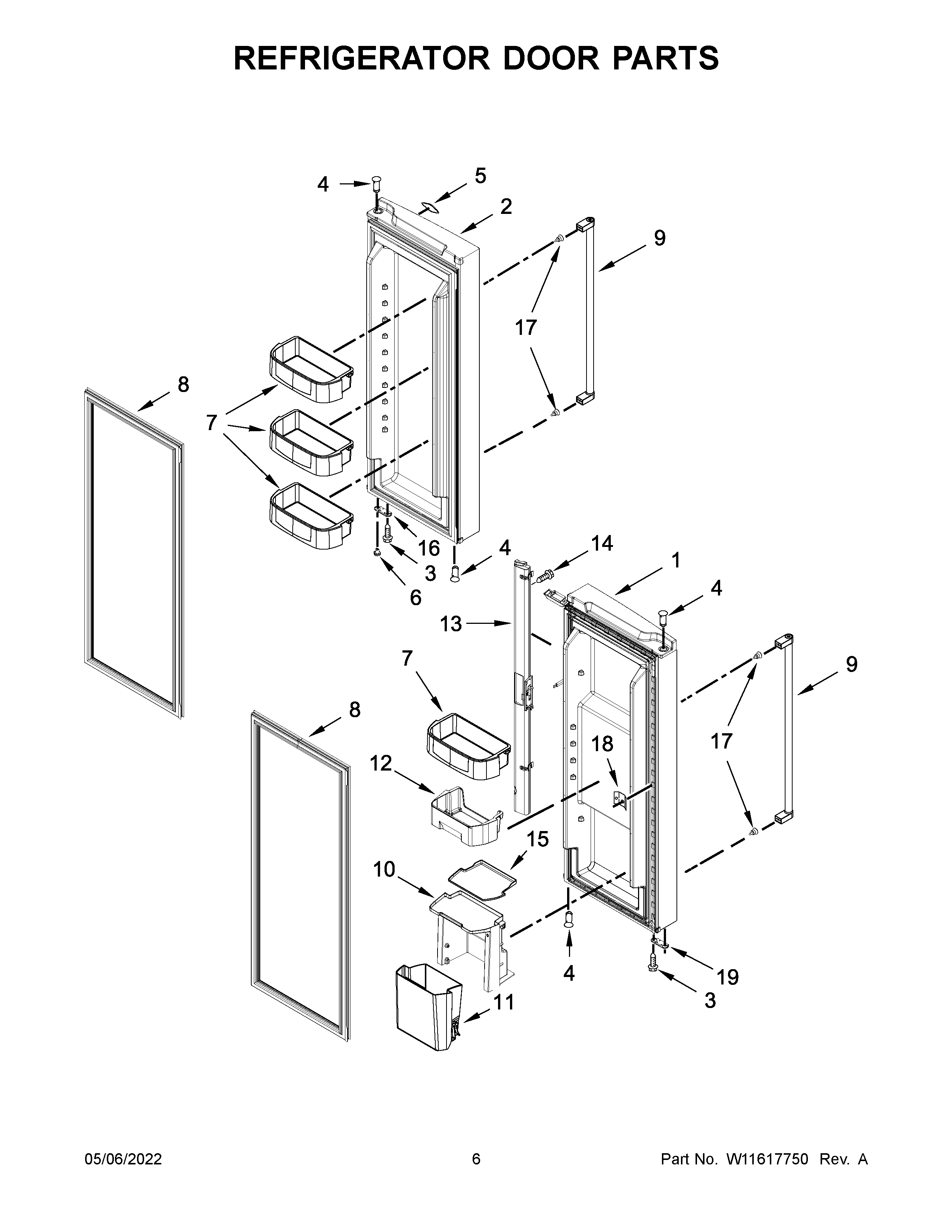

KRFF300EBS01 04 – REFRIGERATOR DOOR PARTS

KRFF300EBS01 04 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF300EBS01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10865734 Whirlpool Refrigerator DOR-FIP
2LW10865738 Whirlpool Refrigerator DOR FIP
3WP681249 Whirlpool Screw Assembly
4AW11189115 Whirlpool Refrigerator Thimble
4W11544568 Whirlpool Door Thimble
5W10876598 Whirlpool Refrigerator Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8W10460610 Whirlpool Refrigerator FIP Gasket
9W11483532 Whirlpool Refrigerator Handle
10WPW10317224 Whirlpool Refrigerator Container
11WPW10411219 Whirlpool Refrigerator Bin
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13W11692845 Whirlpool Mullen Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10317192 Whirlpool Refrigerator Mat
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17WPW10661886 Whirlpool Refrigerator Door Handle Screw
18WP939101 Whirlpool Refrigerator Plate
19W11745278 Whirlpool Bracket
