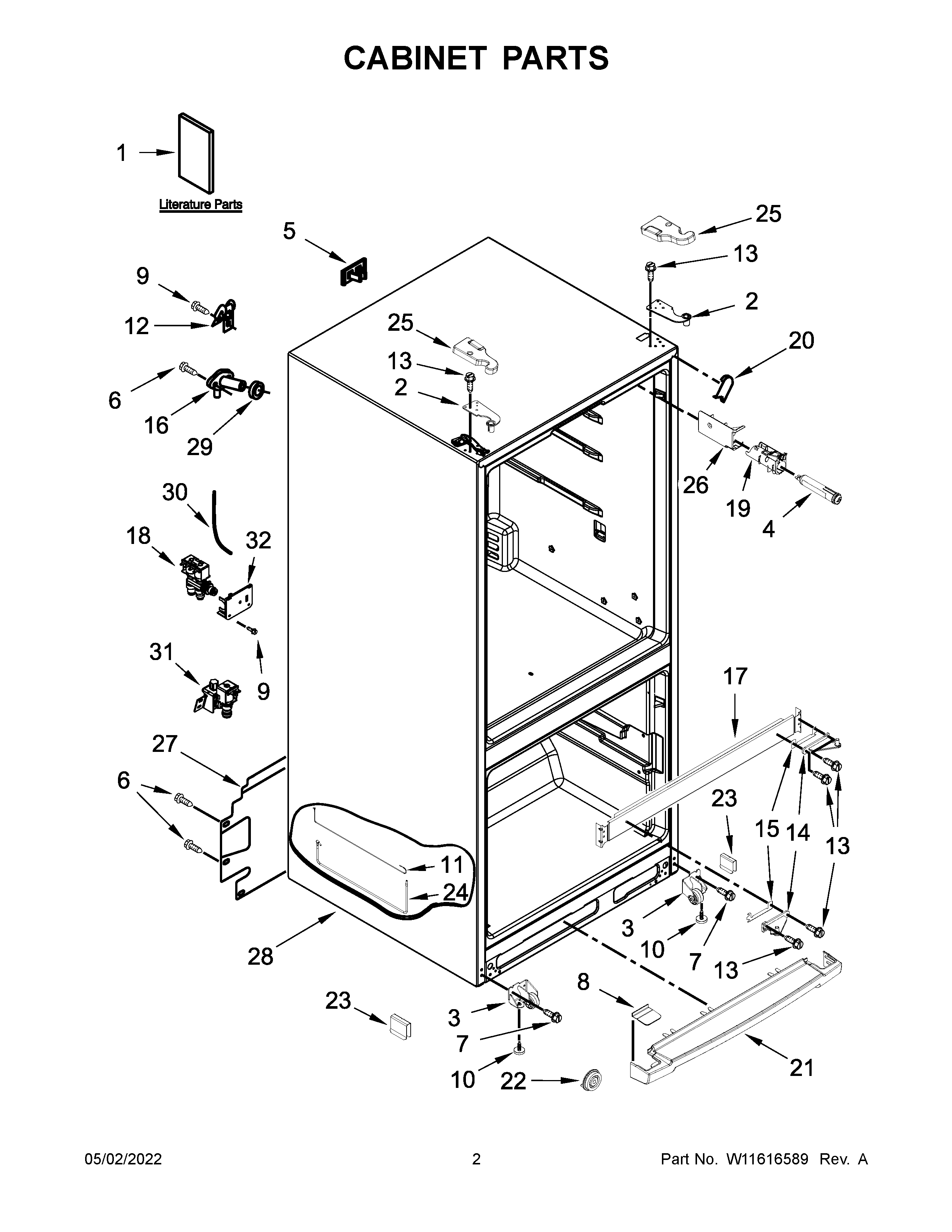

KRFF300ESS02 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	TECH SHEET
1B	USE AND CARE GUIDE
1C	Modular Icemaker Service Sheet
2	W10546298 Whirlpool Refrigerator Door Hinge
2A	W11573371 Whirlpool Refrigerator Door Hinge
3	WPW10359256 Whirlpool Cabinet Roller
3A	WPW10359255 Whirlpool Cabinet Wheel
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W11501419 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W11195038 Whirlpool Refrigerator Water Tube
12	W11234470 Whirlpool Refrigerator Clamp
13	WP489497 Whirlpool Screw
14	W10770878 Whirlpool Refrigerator Door Hinge
14A	W11417064 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	W11292468 Whirlpool Refrigerator Fitting
18	WPW10279866 Whirlpool Refrigerator Inlet Valve
19	W10844267 Whirlpool Refrigerator Housing
20	W11219642 Whirlpool Refrigerator Filler
21	WPW10353935 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	WP2174706 Whirlpool Refrigerator Pin Hitch
24	W10801011 Whirlpool Refrigerator Reservoir
25	W10465768 Whirlpool Hinge Cover
25A	W10465767 Whirlpool Refrigerator Cover
26	WPW10306392 Whirlpool Refrigerator Filter Cover
27	W11700600 Whirlpool Unit Cover
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	WPW10496649 Whirlpool Refrigerator Water Tube
31	VALVE-INLT REFR
32	W10847867 Whirlpool Refrigerator Bracket
