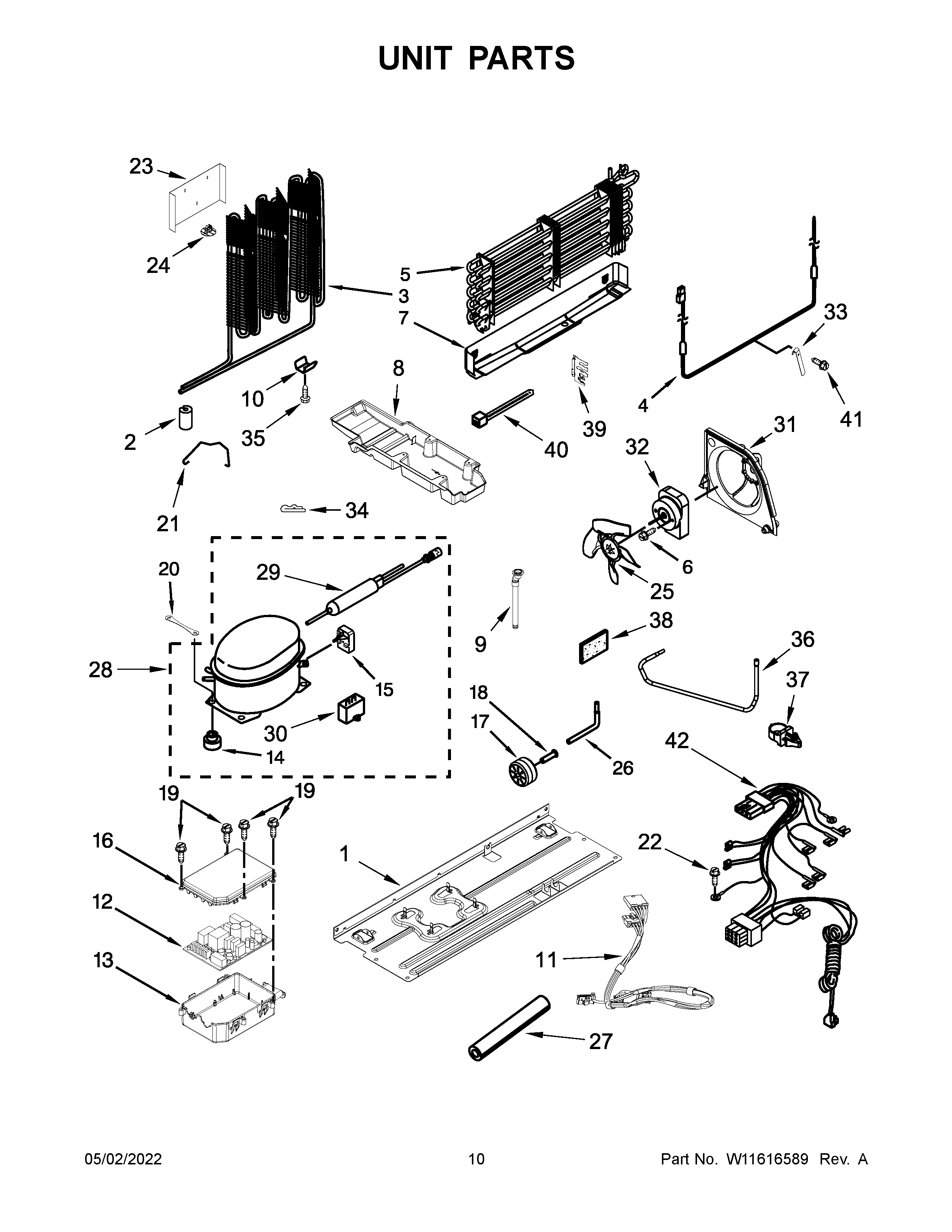

KRFF300ESS02 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10852725 Whirlpool Refrigerator Grommet
3B	W11506624 Whirlpool Refrigerator Coupler
3	WPW10342567 Whirlpool Refrigerator Condenser
4	W11562215 Whirlpool Refrigerator Heater
5A	W11504450 Whirlpool Refrigerator Coupler
5	W11611030 Whirlpool Evaporator Assembly
6	W11501418 Whirlpool Refrigerator Screw
7	W11562216 Whirlpool Shield
8	W10890667 Whirlpool Refrigerator Drip Pan
9	W11284510 Whirlpool Refrigerator Drain Tube
10	W10683556 Whirlpool Refrigerator Clip
11	WPW10424230 Whirlpool Refrigerator Wire Harness
12	W11035836-includeCORE Whirlpool W11035836 Refrigerator Electronic Control Board + Core
13	2323186 Whirlpool Refrigerator Housing
14	W11678963 Whirlpool Grommet
15	W11547180 Whirlpool Refrigerator Start Device
16	W10313215 Whirlpool Refrigerator Box Cover
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10171469 Whirlpool Refrigerator Screw
20	W10236396 Whirlpool Refrigerator Strap
21	W11577799 Whirlpool Refrigerator Clip
22	WP489128 Whirlpool Refrigerator Screw
23	W10349514 Whirlpool Refrigerator Air Baffle
24	W10815861 Whirlpool Refrigerator Clip
25	W11193484 Whirlpool Fan Blade
26	W11661102 Whirlpool Tube
27	2264838 Whirlpool Refrigerator Sleeve
28	COMPRESSOR
28C	COUPLER
28B	W11578570 Whirlpool Refrigerator Coupler
29A	W11504445 Whirlpool Refrigerator Coupler
29B	W11504447 Whirlpool Refrigerator Coupler
29	W11109499 Whirlpool Refrigerator Tube
30	WPW10662129 Whirlpool Refrigerator Run Capacitor
31	W11605794 Whirlpool Air Baffle
32	W11563806 Whirlpool Refrigerator Condenser Motor
33	W11611126 Whirlpool Heat Probe
34	W11501419 Whirlpool Refrigerator Clip
35	W11544659 Whirlpool Refrigerator Screw
36	W11741026 Whirlpool Tube Assembly
37	2219077 Whirlpool Refrigerator Clip
38	W11553819 Whirlpool Refrigerator Insulation
39	WPL W11466555
40	WPW10339879 Whirlpool Wire Tie
41	WP489478 Whirlpool Refrigerator Screw
42	W10526427 Whirlpool Refrigerator Wire Harness
