KRFF300ESS03 04 – REFRIGERATOR DOOR PARTS

KRFF300ESS03 04 – REFRIGERATOR DOOR PARTS

Written by

in

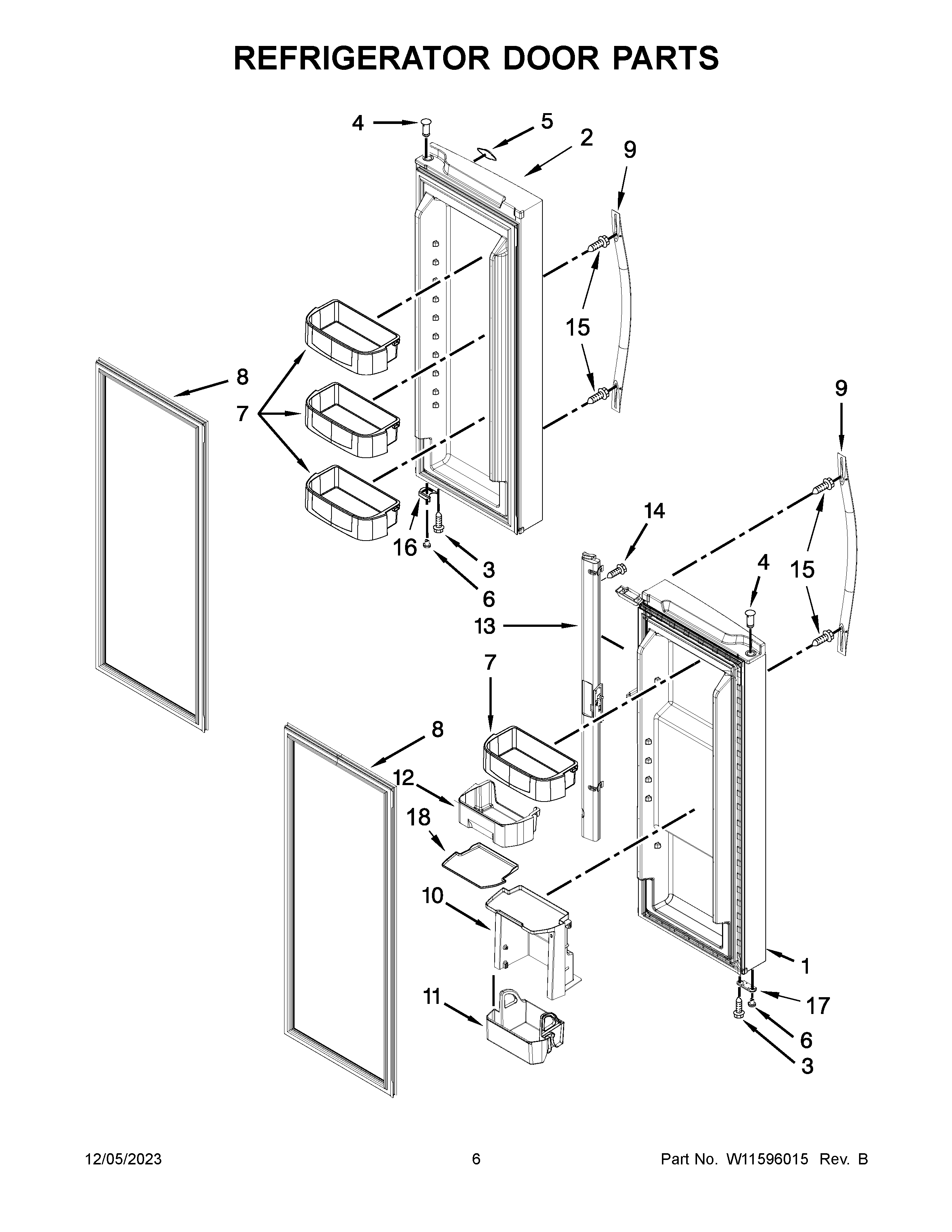

KRFF300ESS03 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ALW10721548 Whirlpool Refrigerator Door FIP
1LW10721544 Whirlpool Refrigerator DOR-FIP
2ALW10721542 Whirlpool Refrigerator Door Assembly
2LW10721540 Whirlpool Refrigerator Door Assembly
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W10876598 Whirlpool Refrigerator Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8W10460612 Whirlpool Refrigerator Door Gasket
8AGASKET-FIP
9W11483532 Whirlpool Refrigerator Handle
10WPW10317224 Whirlpool Refrigerator Container
11WPW10411219 Whirlpool Refrigerator Bin
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13AWPW10624450 Whirlpool Refrigerator Mullion Rail
13WPW10624451 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10170540 Whirlpool Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17W11745278 Whirlpool Bracket
18WPW10317192 Whirlpool Refrigerator Mat
