KRFF300ESS03 06 – UNIT PARTS

KRFF300ESS03 06 – UNIT PARTS

Written by

in

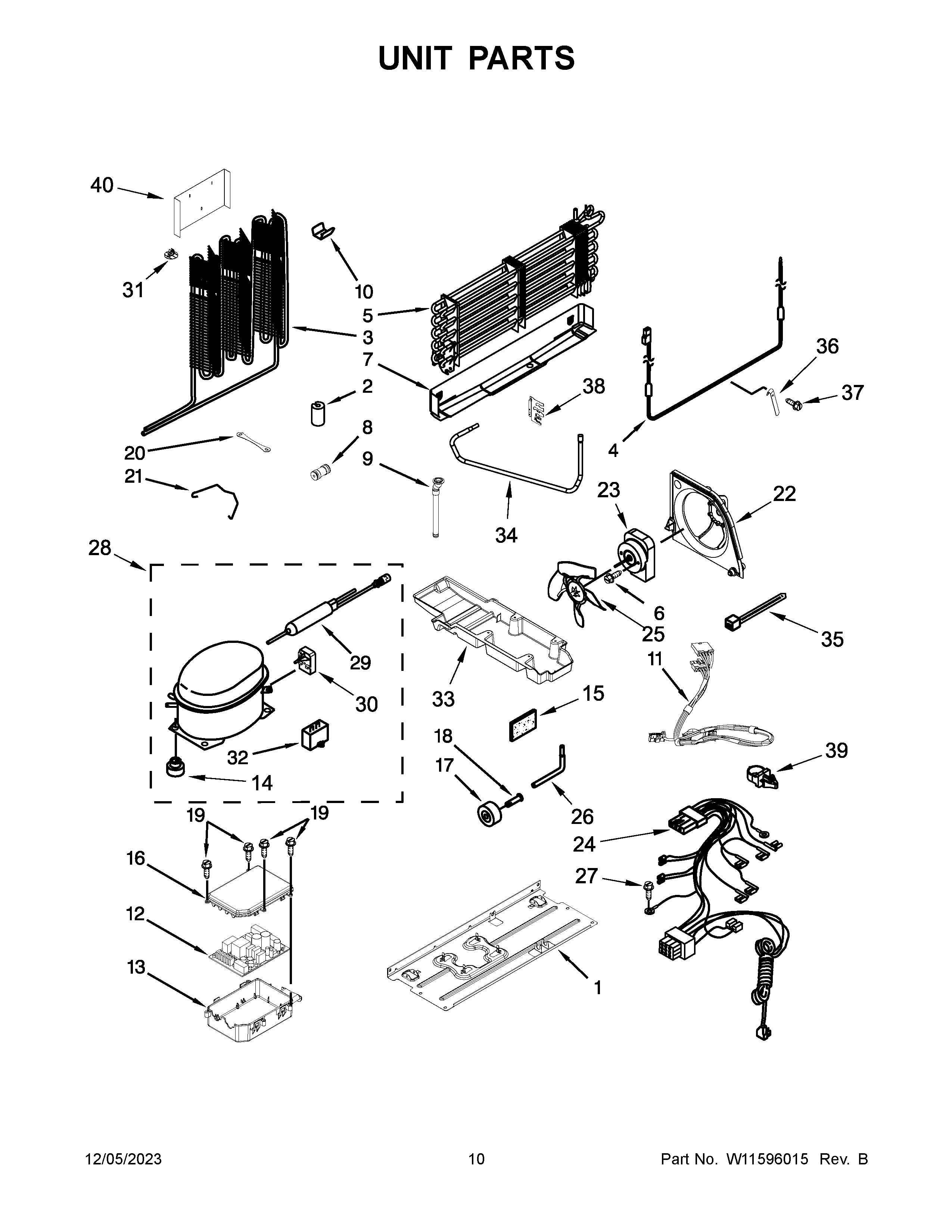

KRFF300ESS03 06 – UNIT PARTS

Products

PositionProduct
NIREFRIGERANT CHARGE 43 GRAMS (R
1W10300116 Whirlpool Refrigerator Base Plate
2W10852725 Whirlpool Refrigerator Grommet
3WPW10342567 Whirlpool Refrigerator Condenser
4W11562215 Whirlpool Refrigerator Heater
5BW11504450 Whirlpool Refrigerator Coupler
5AW11504415 Whirlpool Refrigerator Coupler
5W11625643 Whirlpool Evaporator
6W11501418 Whirlpool Refrigerator Screw
7W11562216 Whirlpool Shield
8WP2300868 Whirlpool Refrigerator Fitting
9W11284510 Whirlpool Refrigerator Drain Tube
10W10683556 Whirlpool Refrigerator Clip
11W11632351 Whirlpool Wire Harness
12W11035836-includeCORE Whirlpool W11035836 Refrigerator Electronic Control Board + Core
132323186 Whirlpool Refrigerator Housing
14W11678963 Whirlpool Grommet
15W11553819 Whirlpool Refrigerator Insulation
16W10313215 Whirlpool Refrigerator Box Cover
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19WPW10171469 Whirlpool Refrigerator Screw
20W10236396 Whirlpool Refrigerator Strap
21W11577799 Whirlpool Refrigerator Clip
22W11605794 Whirlpool Air Baffle
23W11563806 Whirlpool Refrigerator Condenser Motor
24ASSEMBLY, UNIT WIRE
25W11193484 Whirlpool Fan Blade
26W11661102 Whirlpool Tube
27WP489128 Whirlpool Refrigerator Screw
28AW11504432 Whirlpool Refrigerator Coupler
28CW11506638 Whirlpool Refrigerator Coupler
28BCOUPLER
28COMPRESSOR
29AW11504445 Whirlpool Refrigerator Coupler
29BW11504448 Whirlpool Refrigerator Coupler
29W11109499 Whirlpool Refrigerator Tube
30W11547180 Whirlpool Refrigerator Start Device
31W10815861 Whirlpool Refrigerator Clip
32WPW10662129 Whirlpool Refrigerator Run Capacitor
33W10890667 Whirlpool Refrigerator Drip Pan
34W11741026 Whirlpool Tube Assembly
35WPW10339879 Whirlpool Wire Tie
36W11611126 Whirlpool Heat Probe
37WP489478 Whirlpool Refrigerator Screw
38WPL W11466555
392219077 Whirlpool Refrigerator Clip
40W10349514 Whirlpool Refrigerator Air Baffle
