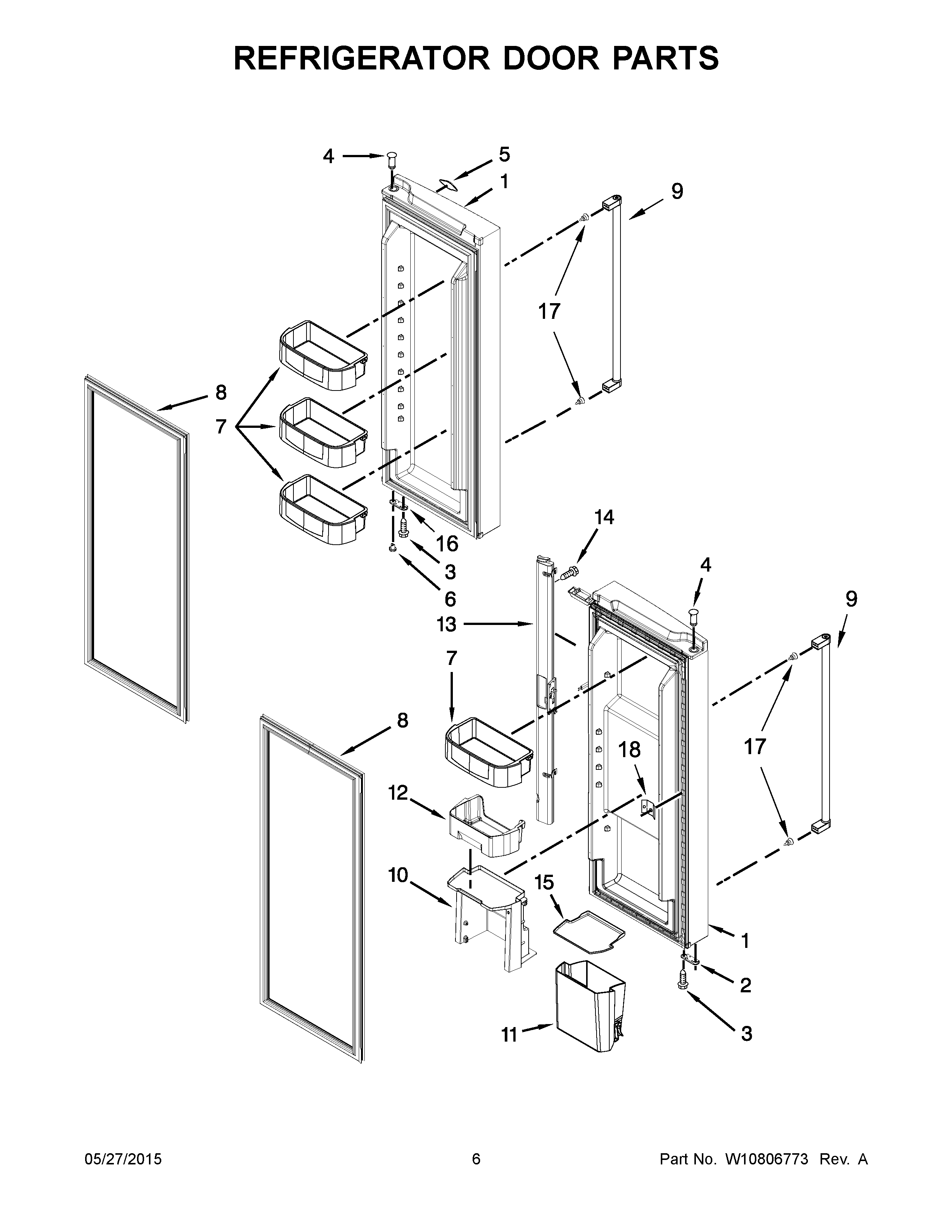

KRFF300EWH00 04 – REFRIGERATOR DOOR PARTS

KRFF300EWH00 04 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF300EWH00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BLW10721546 Whirlpool Refrigerator DOR-FIP
1ELW10721542 Whirlpool Refrigerator Door Assembly
1ALW10721540 Whirlpool Refrigerator Door Assembly
1DLW10721548 Whirlpool Refrigerator Door FIP
1CLW10721541 Whirlpool Refrigerator Door FIP
1LW10721544 Whirlpool Refrigerator DOR-FIP
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
4AW11189115 Whirlpool Refrigerator Thimble
5W10876598 Whirlpool Refrigerator Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8AW10460610 Whirlpool Refrigerator FIP Gasket
8BGASKET-FIP
8W10460612 Whirlpool Refrigerator Door Gasket
9W11483532 Whirlpool Refrigerator Handle
10WPW10317224 Whirlpool Refrigerator Container
11WPW10411219 Whirlpool Refrigerator Bin
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13BWPW10624450 Whirlpool Refrigerator Mullion Rail
13AW11692845 Whirlpool Mullen Rail
13WPW10624451 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10317192 Whirlpool Refrigerator Mat
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17WPW10661886 Whirlpool Refrigerator Door Handle Screw
18WP939101 Whirlpool Refrigerator Plate
