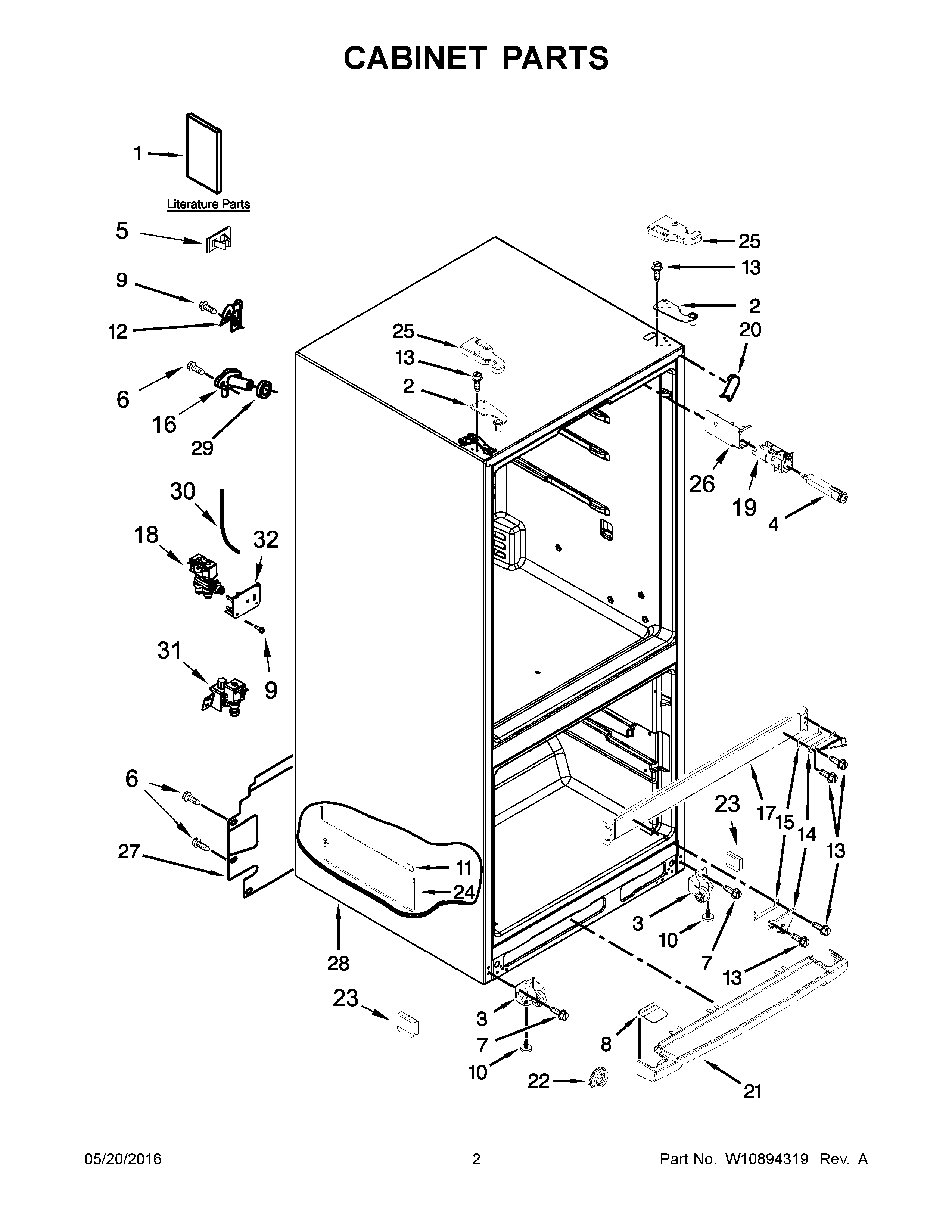

KRFF300EWH01 02 – CABINET PARTS

Products

Position	Product
1C	Modular Icemaker Service Sheet
1A	ENERGY LABEL
1	TECH SHEET
1B	USE & CARE GUIDE
2	W10546298 Whirlpool Refrigerator Door Hinge
2A	W11573371 Whirlpool Refrigerator Door Hinge
3	WPW10359256 Whirlpool Cabinet Roller
3A	WPW10359255 Whirlpool Cabinet Wheel
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W11501419 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
8A	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	W11195038 Whirlpool Refrigerator Water Tube
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	W10770878 Whirlpool Refrigerator Door Hinge
14A	W11417064 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WPW10601149 Whirlpool Refrigerator Fitting
18	WPW10279866 Whirlpool Refrigerator Inlet Valve
19	W10844267 Whirlpool Refrigerator Housing
20	WPW10283959 Whirlpool Refrigerator Filler
20A	W10851579 Whirlpool Refrigerator Filler
21A	WPW10353935 Whirlpool Refrigerator Grille
21	WPW10300127 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	WP2174706 Whirlpool Refrigerator Pin Hitch
24	W10801011 Whirlpool Refrigerator Reservoir
25C	W10465767 Whirlpool Refrigerator Cover
25B	W10465768 Whirlpool Hinge Cover
25A	W10465764 Whirlpool Refrigerator Cover
25	W10465765 Whirlpool Refrigerator Cover
26	WPW10306392 Whirlpool Refrigerator Filter Cover
27	W10636716 Whirlpool Refrigerator Cover Unit
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	W11680400 Whirlpool Water Tube
31	VALVE-INLT REFR
32	W10847867 Whirlpool Refrigerator Bracket
