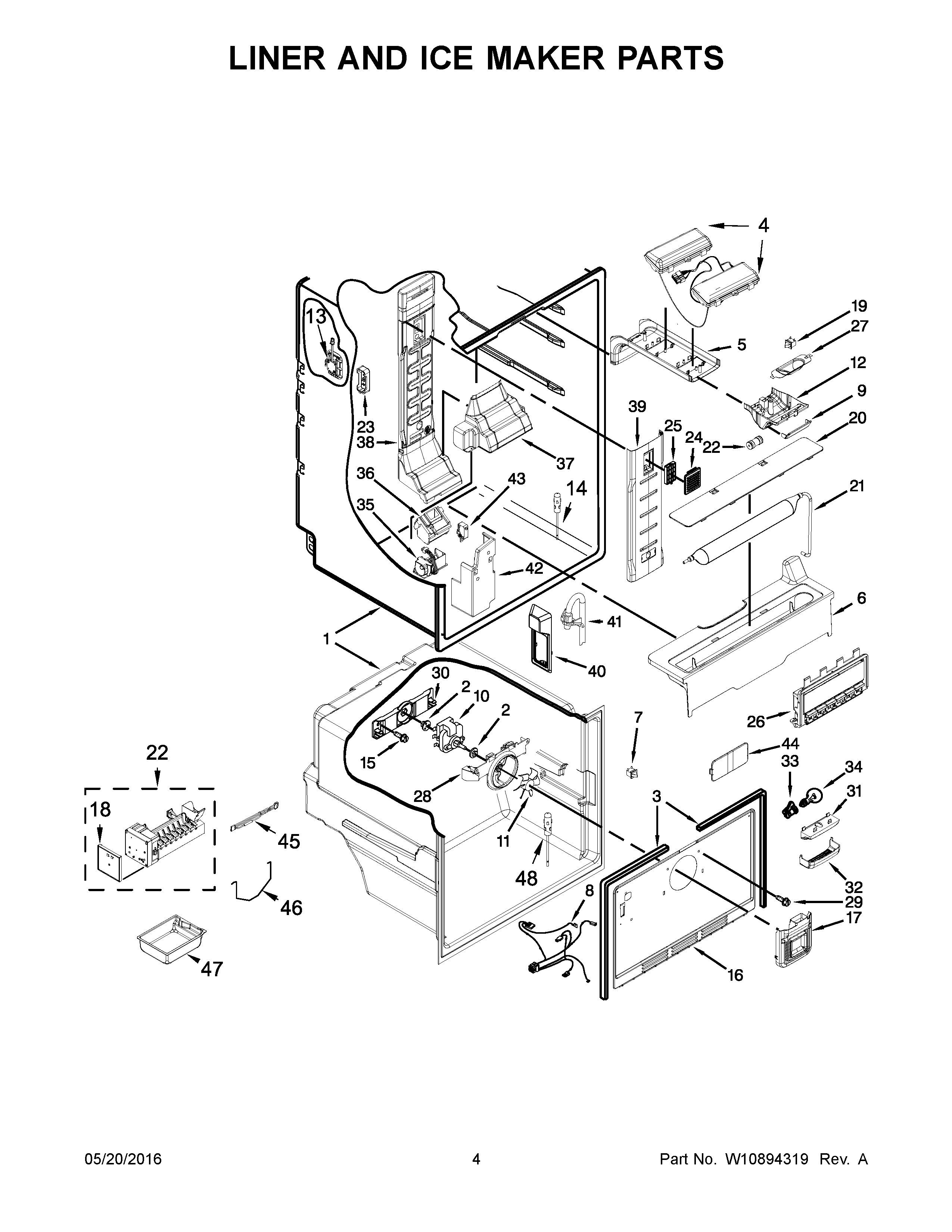

KRFF300EWH01 03 – LINER AND ICE MAKER PARTS

KRFF300EWH01 03 – LINER AND ICE MAKER PARTS

Written by

in

KRFF300EWH01 03 – LINER AND ICE MAKER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2264462 Whirlpool Refrigerator Grommet
3	W10849448 Whirlpool Refrigerator Gasket
4	W10897058 Whirlpool Refrigerator Module
5	W10469878 Whirlpool Refrigerator Housing
6	W10798439 Whirlpool Refrigerator Reservoir
7	W11396033 Whirlpool Refrigerator Rocker Switch
8	WPW10487766 Whirlpool Refrigerator Wire Harness
9	W10360550 Whirlpool Refrigerator Front Cover
10	MOTOR-EVAP
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	WPW10435577 Whirlpool Refrigerator Housing
13	MODULE
14	WPW10384183 Whirlpool Thermistor
15	WP488163 Whirlpool Refrigerator Screw
16	W10300900 Whirlpool Refrigerator Evaporator Cover
17	W11227949 Whirlpool Refrigerator Air Tower
18	WPW10289690 Whirlpool Ice Maker Cover
19	W11384469 Whirlpool Door Switch
20	W10413160 Whirlpool Refrigerator Cover
21	W10801011 Whirlpool Refrigerator Reservoir
22	4317943 Whirlpool Refrigerator Ice Maker Assembly
23	WPW10425252 Whirlpool Refrigerator Cover
24	WPW10330850 Whirlpool Refrigerator Grille
25	W10311524 Whirlpool FreshFlow Refrigerator Air Filter
26	W11082844-includeCORE Whirlpool W11082844 Refrigerator Electronic Control Board + Core
27	WPW10314195 Whirlpool Refrigerator Shield
28	W10850162 Whirlpool Refrigerator Orifice
29	WP489478 Whirlpool Refrigerator Screw
30	2254454 Whirlpool Refrigerator Bracket
31	WPW10313917 Whirlpool Refrigerator Housing
32	WPW10313918 Whirlpool Refrigerator Light Lens
33	W11661565 Whirlpool Refrigerator Socket
34	W11518235 Whirlpool LED Light
35	DAMPER
36	W11133099 Whirlpool Refrigerator Cover
37	WPW10314204 Whirlpool Refrigerator Housing
38	W11508229 Whirlpool Refrigerator Air Tower
39	WPW10356895 Whirlpool Refrigerator Cover
40	W11243624 Whirlpool Refrigerator Cover
41	W10463316 Whirlpool Refrigerator Water Tube
42	W11362531 Whirlpool Refrigerator Cover
43	WP12575501 Whirlpool Refrigerator Micro Switch
44	W10336009 Whirlpool Refrigerator Cover
45	W11643622 Whirlpool Wire Harness
46	WPW10474785 Whirlpool Refrigerator Shut-Off Arm
47	WPW10378263 Whirlpool Refrigerator Ice Pan
48	THERMISTOR-REFRIGERATOR
