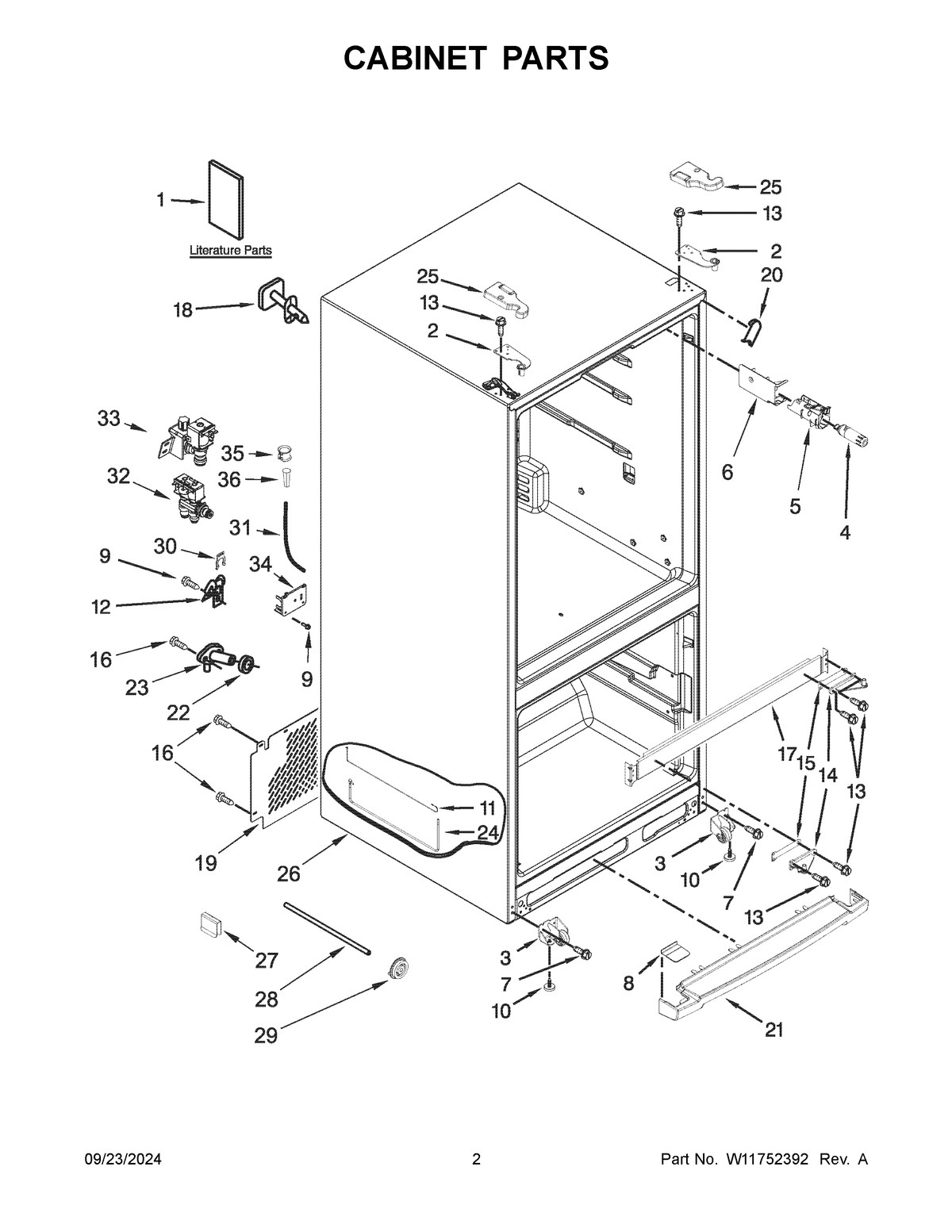

KRFF300EWH06 02 – CABINET PARTS

KRFF300EWH06 02 – CABINET PARTS

Written by

in

KRFF300EWH06 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1AUSE AND CARE GUIDE
1BModular Icemaker Service Sheet
2W10546298 Whirlpool Refrigerator Door Hinge
2AW11573371 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
4EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5W10844267 Whirlpool Refrigerator Housing
6WPW10306392 Whirlpool Refrigerator Filter Cover
8WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
11W11195038 Whirlpool Refrigerator Water Tube
12W11234470 Whirlpool Refrigerator Clamp
13WP489497 Whirlpool Screw
14W10770878 Whirlpool Refrigerator Door Hinge
14AW11417064 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16WP488729 Whirlpool Refrigerator Door Screw
17RAIL, CENTER (NOT SERVICED)
18FITTING, WATER TUBE (NOT SERVICED)
19W11700600 Whirlpool Unit Cover
20W11219639 Whirlpool Refrigerator Filler
21WPW10300127 Whirlpool Refrigerator Grille
22WP1106508 Whirlpool Refrigerator Gasket
23W11292468 Whirlpool Refrigerator Fitting
24W10801011 Whirlpool Refrigerator Reservoir
25AW10465764 Whirlpool Refrigerator Cover
25W10465765 Whirlpool Refrigerator Cover
26CABINET (NOT A SERVICEABLE PART)
27WP2174706 Whirlpool Refrigerator Pin Hitch
28WPW10463317 Whirlpool Refrigerator Water Tube
29W10331226 Whirlpool Refrigerator Clip
30W11676611 Whirlpool Ring
30AW11678575 Whirlpool Ring
31W11680400 Whirlpool Water Tube
32WPW10279866 Whirlpool Refrigerator Inlet Valve
33VALVE-INLT REFR
34W10847867 Whirlpool Refrigerator Bracket
35W10861184 Whirlpool Refrigerator Clamp
364387491 Whirlpool Refrigerator Insert
