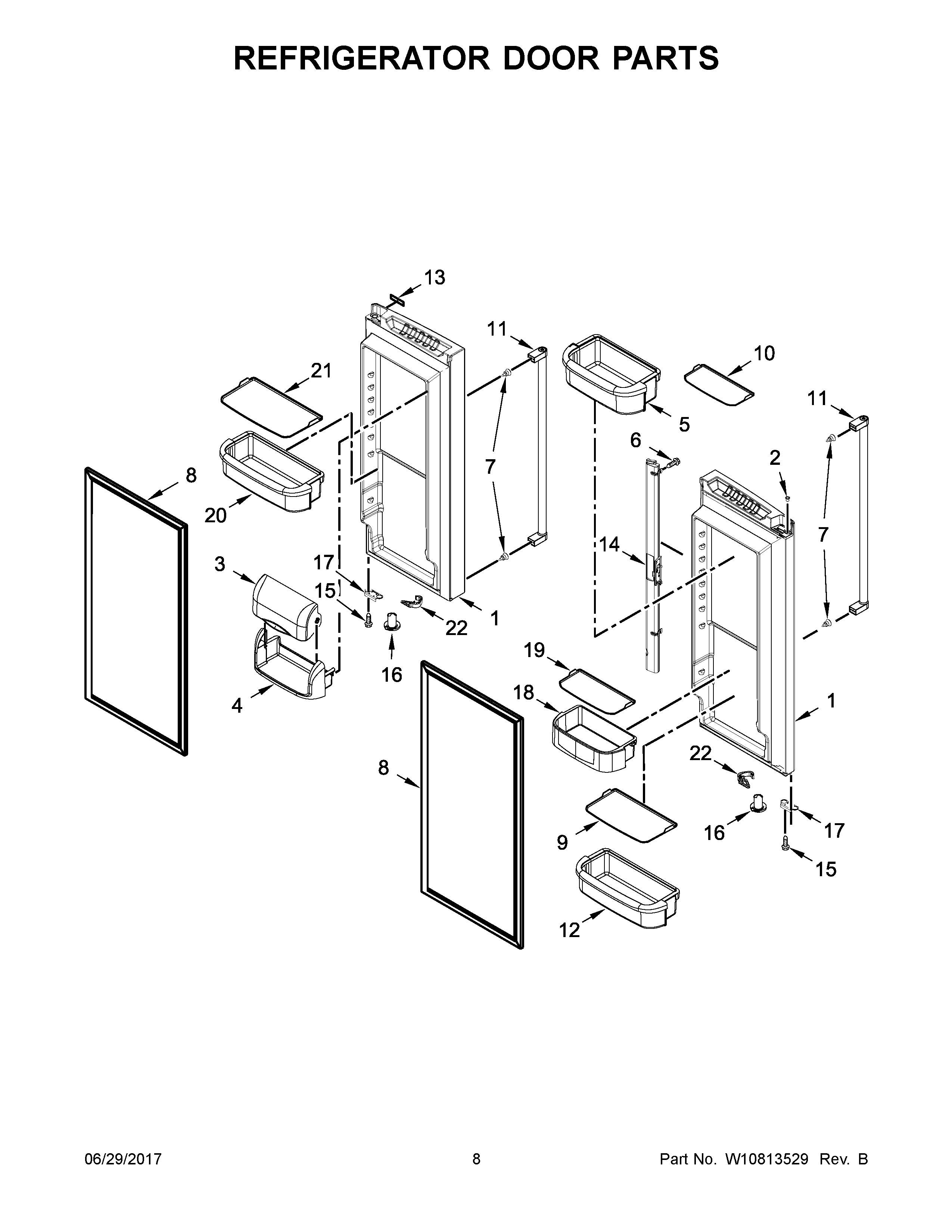

KRFF302EBL01 05 – REFRIGERATOR DOOR PARTS

KRFF302EBL01 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF302EBL01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1B13107886SQ Whirlpool Refrigerator FIP Stainless Steel Door
1A13107886BQ Whirlpool Refrigerator Black Foam In Place Door
1E13107885SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
1D13107885BQ Whirlpool Refrigerator Black Foam In Place Doorack
1C13107885WQ Whirlpool Refrigerator DOR-FIP White
113107886WQ Whirlpool Refrigerator Door FIP White
212996601 Whirlpool Refrigerator Bushing Clip
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8DGASKET-FIP
8CW10830189 Whirlpool Refrigerator Door Gasket
8BW10830283 Whirlpool Refrigerator Door Gasket
8W10830287 Whirlpool Refrigerator FIP Gasket
8AW10830289 Whirlpool Refrigerator Gasket FIP
8EGASKET-FIP
9W11402028 Whirlpool Refrigerator Mat
10WPW10450021 Whirlpool Refrigerator Mat
11W11483532 Whirlpool Refrigerator Handle
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13W10876598 Whirlpool Refrigerator Nameplate
14BWP12722803AP Whirlpool Refrigerator Mullion Rail
14AWP12722803B Whirlpool Door Guide
14RAIL-MULLN WHITE
15WP98165 Whirlpool Screw
16WP67003638 Whirlpool Closing Cam
16AWP67003639 Whirlpool Refrigerator Closer
16BWP12028505AP Whirlpool Closing Cam
17AW11708403 Whirlpool Door Stop
17BW11703060 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
18WPW10351081 Whirlpool Refrigerator Cantilever Bin
19W11408990 Whirlpool Refrigerator Mat
20W11238396 Whirlpool Refrigerator Cantilever Bin
21W10450029 Whirlpool Refrigerator Mat
22W10918118 Whirlpool Refrigerator Door Closer
22CW10918120 Whirlpool Refrigerator Closer
22BW10918008 Whirlpool Refrigerator Closer
22DW10918171 Whirlpool Refrigerator Closer
22AW10918170 Whirlpool Refrigerator Closer
22EW10918010 Whirlpool Refrigerator Closer
