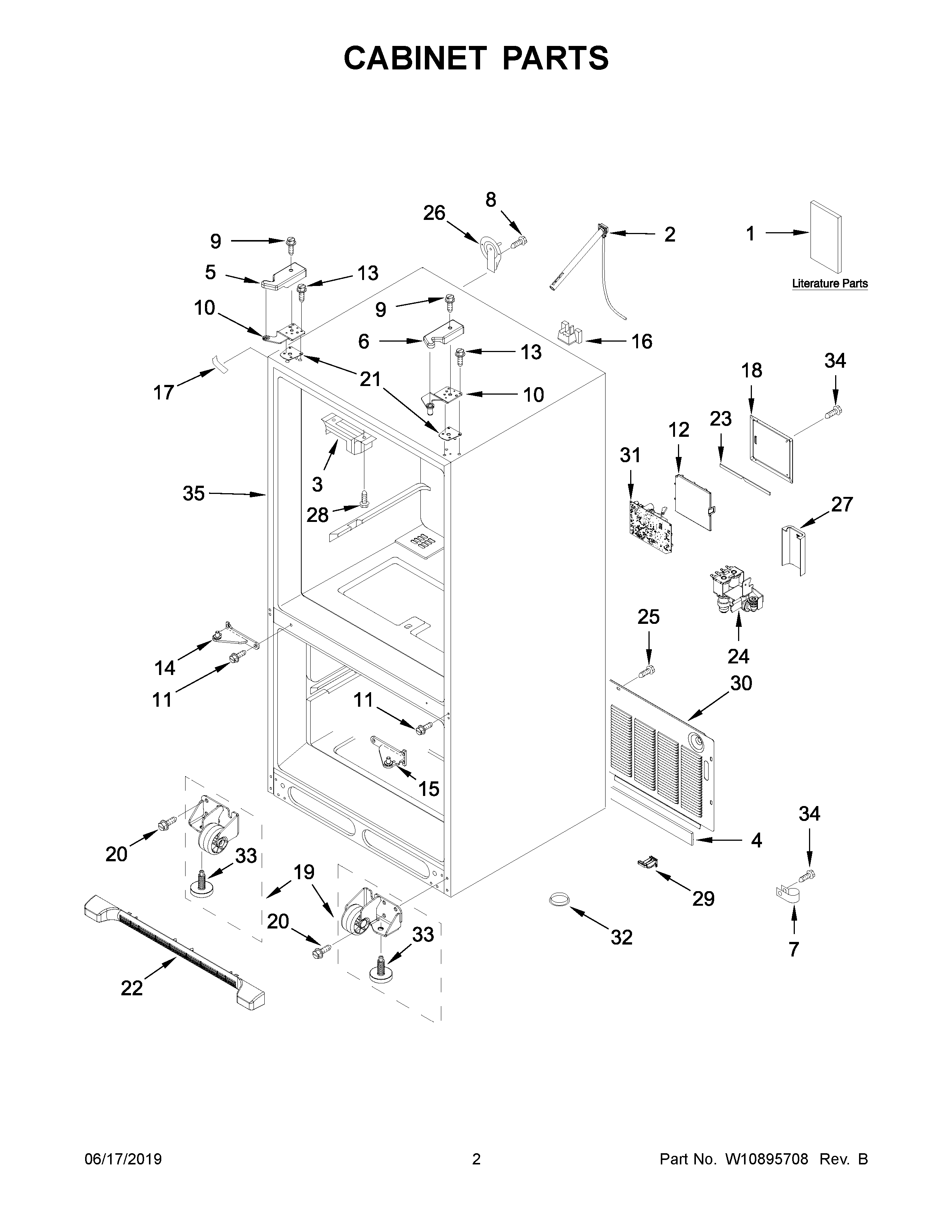

KRFF302EBS00 02 – CABINET PARTS

KRFF302EBS00 02 – CABINET PARTS

Written by

in

KRFF302EBS00 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET (ENGLISH)
1BUSE AND CARE GUIDE
1ATECH SHEET (FRENCH)
1CENERGY GUIDE
2W11181718 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5W10337647 Whirlpool Refrigerator Cover
6WP67005956 Whirlpool Refrigerator Cover
7W11456069 Whirlpool Refrigerator Clamp
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11W11573362 Whirlpool Screw Assembly
12W10296541 Whirlpool Refrigerator Wire Cover
13WP489349 Whirlpool Refrigerator Screw
14W10918166 Whirlpool Refrigerator Door Hinge
15W10918168 Whirlpool Refrigerator Door Hinge
16W11686793 Whirlpool Block
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1812961602 Whirlpool Refrigerator Wire Cover
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534162 Whirlpool Refrigerator Front Grille
23GASKET, HV BOX
24VALVE-WATER INLET REFR
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29W10528513 Whirlpool Tube Clamp
30W10210980 Whirlpool Refrigerator Back Cover
31WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32A3076901 Whirlpool Refrigerator Plug
33WPW10141622 Whirlpool Leveler
34W11686675 Whirlpool Screw
35CABINET (NOT A SERVICEABLE PART)
