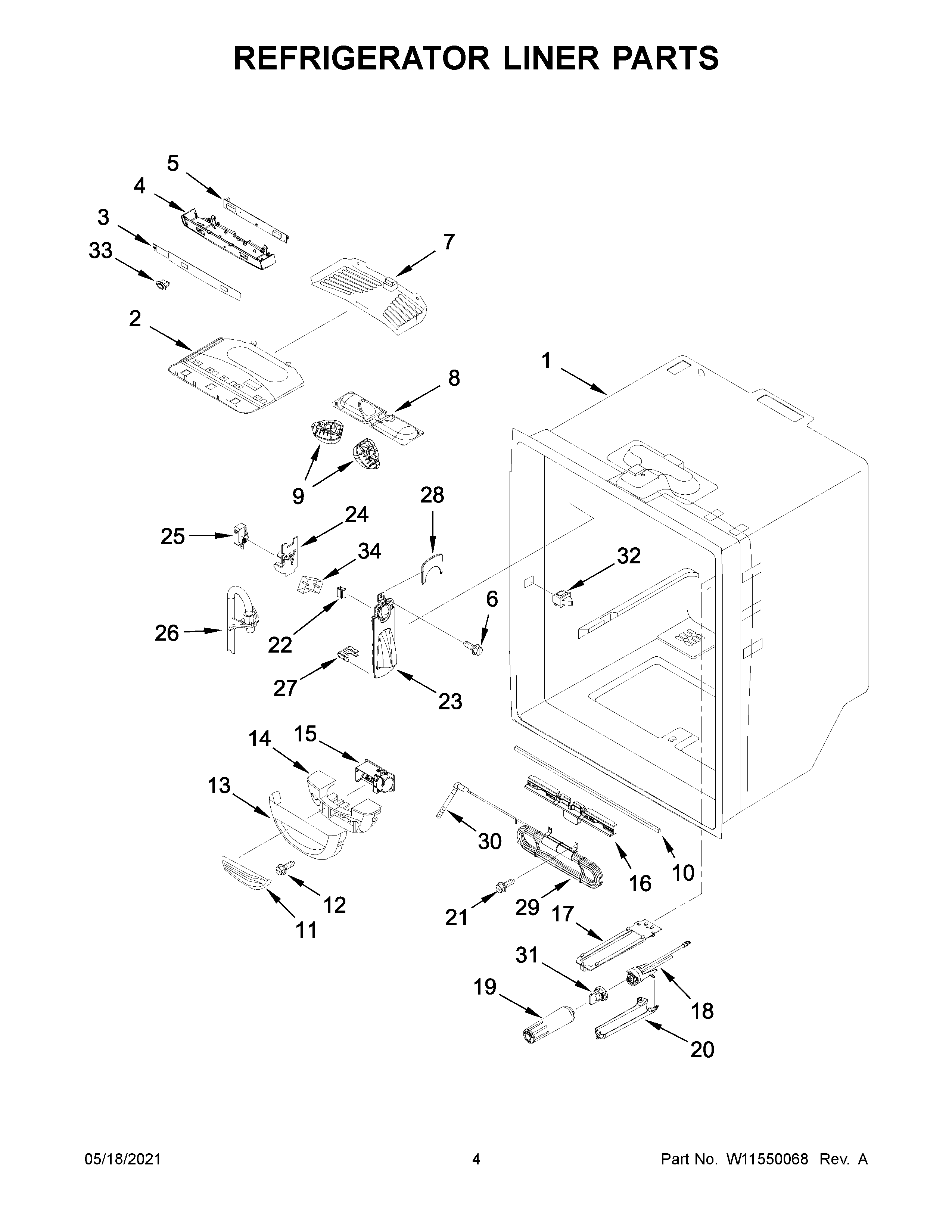

KRFF302EBS04 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11478401 Whirlpool Refrigerator Housing
2W10464766 Whirlpool Refrigerator Housing Assembly
3W11469742 Whirlpool Refrigerator Overlay
4W11469741 Whirlpool Refrigerator Housing
5W11524656-includeCORE Whirlpool W11524656 Refrigerator Electronic Control Board
6W10854958 Whirlpool Refrigerator Screw
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9MODULE
10W10568045 Whirlpool Gasket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
16W10833346 Whirlpool Refrigerator Insulation
17PLATE-FIL
18W11346623 Whirlpool Refrigerator Water Filter Head
19everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20WP12568001 Whirlpool Filter Cover
21WP67006415 Whirlpool Refrigerator Screw
22W10819546 Whirlpool Refrigerator Clip
23W11519867 Whirlpool Refrigerator Cover
24W11515355 Whirlpool Refrigerator Plate
25W11527839 Whirlpool Switch
26W11677725 Whirlpool Refrigerator Guide
2767002816 Whirlpool Refrigerator Waterline Clip
29W11229977 Whirlpool Refrigerator Reservoir
30WP2300868 Whirlpool Refrigerator Fitting
31W11395888 Whirlpool Refrigerator Bypass Filter Cap
32W11291138 Whirlpool Refrigerator Door Switch
33W11469740 Whirlpool Refrigerator Switch
34W11527411 Whirlpool Refrigerator Foam Seal
