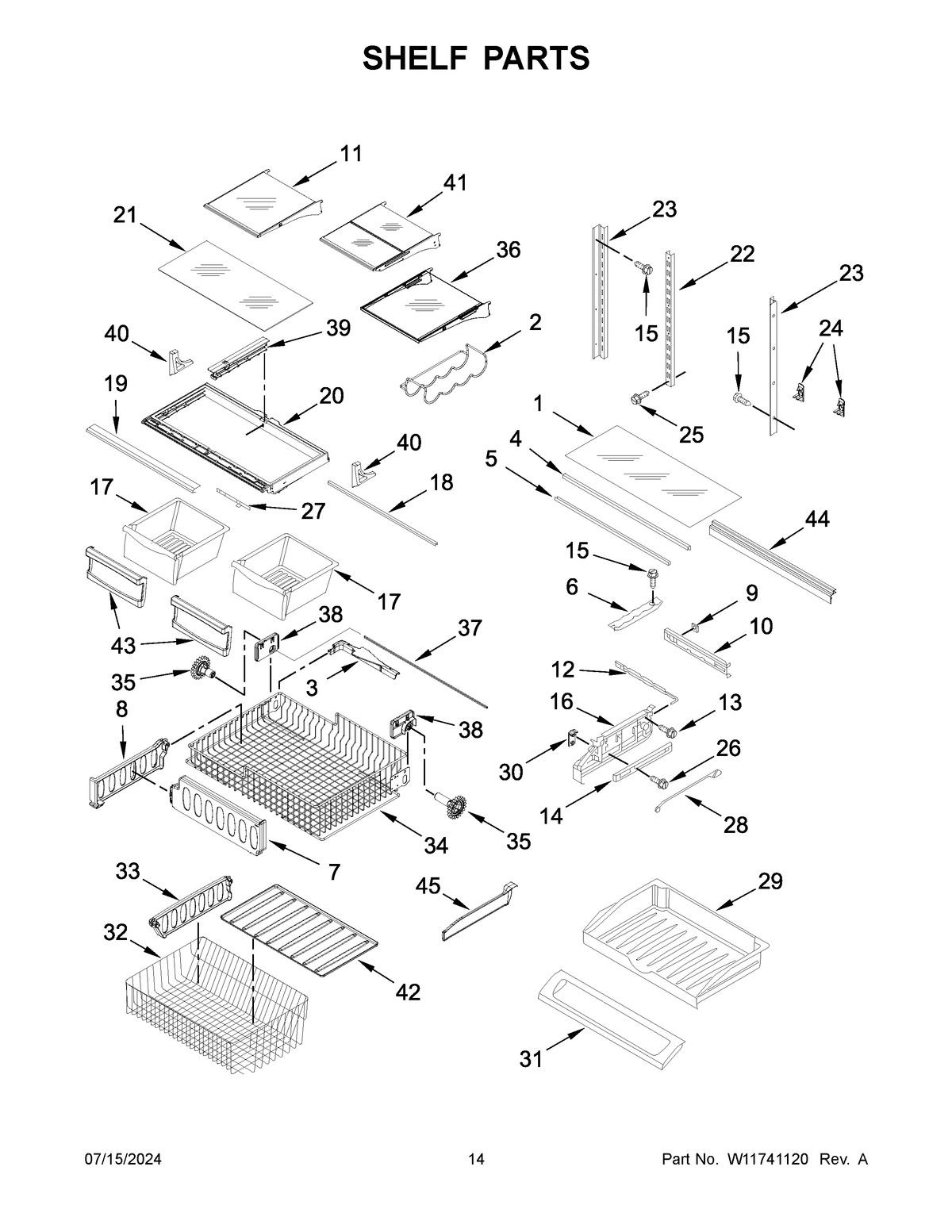

KRFF302EBS07 08 – SHELF PARTS

Products

Position	Product
1	WPW10165870 Whirlpool Refrigerator Glass Shelf
2	W10740489 Whirlpool Refrigerator Wine Rack
3	W10149389 Whirlpool Refrigerator Handle
4	W11245261 Whirlpool Refrigerator Trim
5	W10783763 Whirlpool Refrigerator Brace
6	WP67001719 Whirlpool Refrigerator Track
7	W10311695 Whirlpool Refrigerator Divider
8	W10241046 Whirlpool Refrigerator Divider
9	GASKET, PANTRY
10	W10165876 Whirlpool Refrigerator Housing
11	W10811323 Whirlpool Refrigerator Glass Shelf
12	W10165882 Whirlpool Refrigerator Slide
13	WP67006415 Whirlpool Refrigerator Screw
14	WPW10235370 Whirlpool Refrigerator Glide
15	67006425 Whirlpool Refrigerator Screw
16	W11222065 Whirlpool Drawer Support
16A	W11222066 Whirlpool Refrigerator Endcap
17	WP67002633 Whirlpool Crisper Pan
18	WP12227303WD Whirlpool Refrigerator Crisper Brace
19	WPW10231343 Whirlpool Shelf Trim
20	W10858393 Whirlpool Shelf Frame
21	WP67006878 Whirlpool Refrigerator Crisper Glass
22	W10273463 Whirlpool Refrigerator Ladder
23	W10251969 Whirlpool Refrigerator Ladder
24	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
25	W10215666 Whirlpool Refrigerator Screw
26	WP98165 Whirlpool Screw
27	SLIDE
28	W10165910 Whirlpool Refrigerator Rod
29	W11513151 Whirlpool Refrigerator Utility Pan
30	W11498983 Whirlpool Refrigerator Knob
31	W10827914 Whirlpool Refrigerator Pantry Drawer Top Front Lid
32	W11281087 Whirlpool Refrigerator Freezer Basket
33	W10847995 Whirlpool Divider Assembly
34	W11281084 Whirlpool Refrigerator Freezer Basket
35	WPW10474716 Whirlpool Refrigerator Gear
35A	WPW10474715 Whirlpool Refrigerator Gear
36	W10895843 Whirlpool Refrigerator Glass Shelf
37	W11715937 Whirlpool Shaft
38	W10348259 Whirlpool Refrigerator Bracket Assembly
38A	W10348260 Whirlpool Refrigerator Bracket
39	RAIL-CENTR CRISPER
40A	WP67001722 Whirlpool Refrigerator Support
40	WP67001721 Whirlpool Refrigerator Support
41	W10811324 Whirlpool Refrigerator Glass Shelf
42	W10316995 Whirlpool Refrigerator Mat
43	WP67005920 Whirlpool Refrigerator Crisper Drawer Front
44	W10528936 Whirlpool Refrigerator Trim
45	WPW10165967 Whirlpool Divider Assembly
