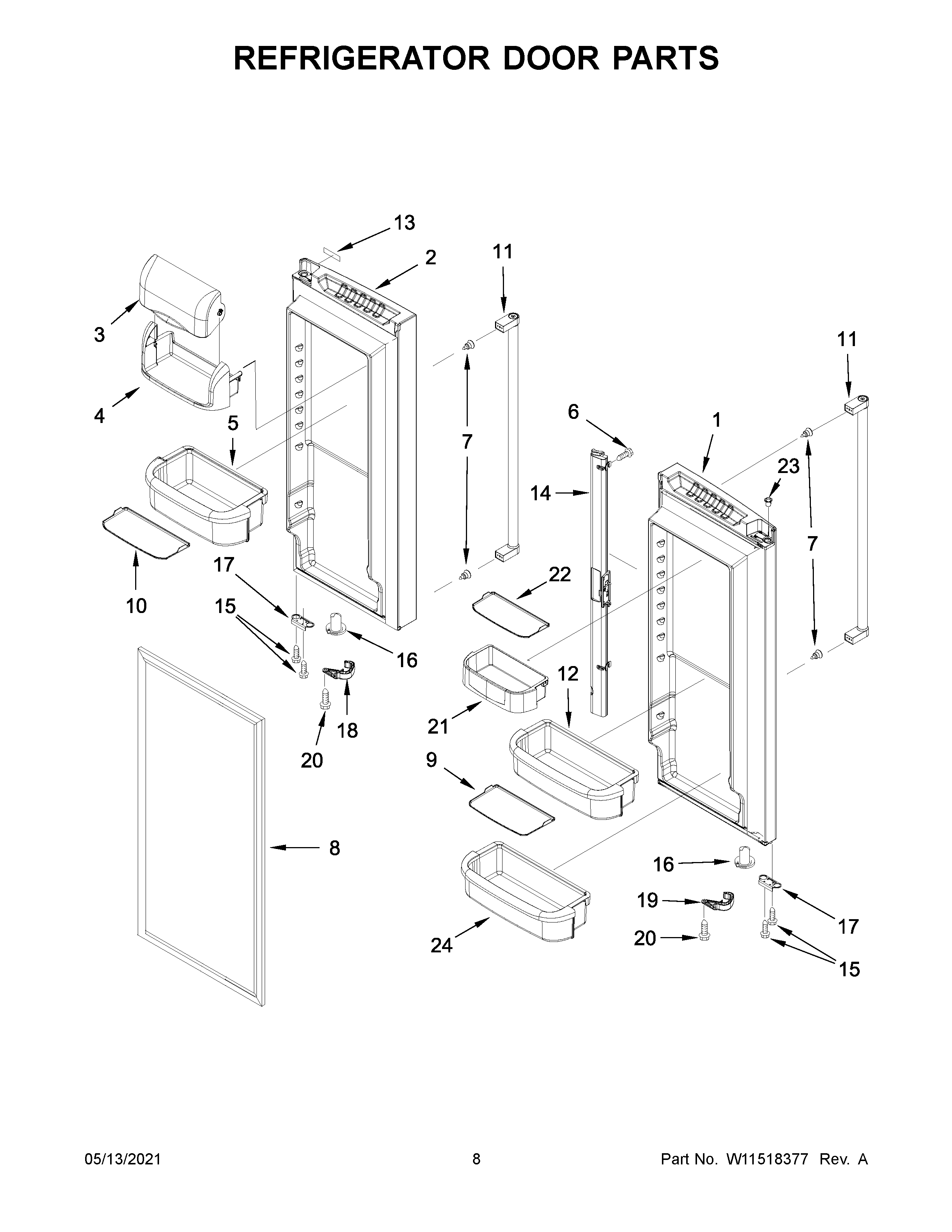

KRFF302ESS04 05 – REFRIGERATOR DOOR PARTS

KRFF302ESS04 05 – REFRIGERATOR DOOR PARTS

Written by

in

KRFF302ESS04 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1A13107886SQ Whirlpool Refrigerator FIP Stainless Steel Door
113107886WQ Whirlpool Refrigerator Door FIP White
2A13107885SQ Whirlpool Refrigerator Foam In Place Door Stainless Steel
213107885WQ Whirlpool Refrigerator DOR-FIP White
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8BW10830189 Whirlpool Refrigerator Door Gasket
8AW10830283 Whirlpool Refrigerator Door Gasket
8CGASKET-FIP
8W10830287 Whirlpool Refrigerator FIP Gasket
9W11402028 Whirlpool Refrigerator Mat
10WPW10450021 Whirlpool Refrigerator Mat
11W11483532 Whirlpool Refrigerator Handle
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13W10876598 Whirlpool Refrigerator Nameplate
14RAIL-MULLN WHITE
14AWP12722803AP Whirlpool Refrigerator Mullion Rail
15WP98165 Whirlpool Screw
16AWP12028505AP Whirlpool Closing Cam
16WP67003638 Whirlpool Closing Cam
17AW11703060 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
18W10918120 Whirlpool Refrigerator Closer
18AW10918010 Whirlpool Refrigerator Closer
19AW10918008 Whirlpool Refrigerator Closer
19W10918118 Whirlpool Refrigerator Door Closer
20WP67006908 Whirlpool Refrigerator Screw
21WPW10351081 Whirlpool Refrigerator Cantilever Bin
22W11408990 Whirlpool Refrigerator Mat
2312996601 Whirlpool Refrigerator Bushing Clip
24WP12918704 Whirlpool Refrigerator Cantilever Bin
